The micro:IoT is a feature-packed IoT expansion board for the BBC micro:bit. It integrates Wi-Fi connectivity, an OLED display, motor drivers, servo outputs, and a range of I/O ports into a compact cloud-shaped PCB — everything needed to build IoT projects with minimal setup.

Designed to work with the DFRobot Easy IoT platform, the board lowers the barrier to building connected projects. It supports MakeCode, Mind+, and Python programming environments. A PMMA protective case shields the onboard components.

Key Features

• Integrated Wi-Fi Module – Connect to IoT platforms wirelessly

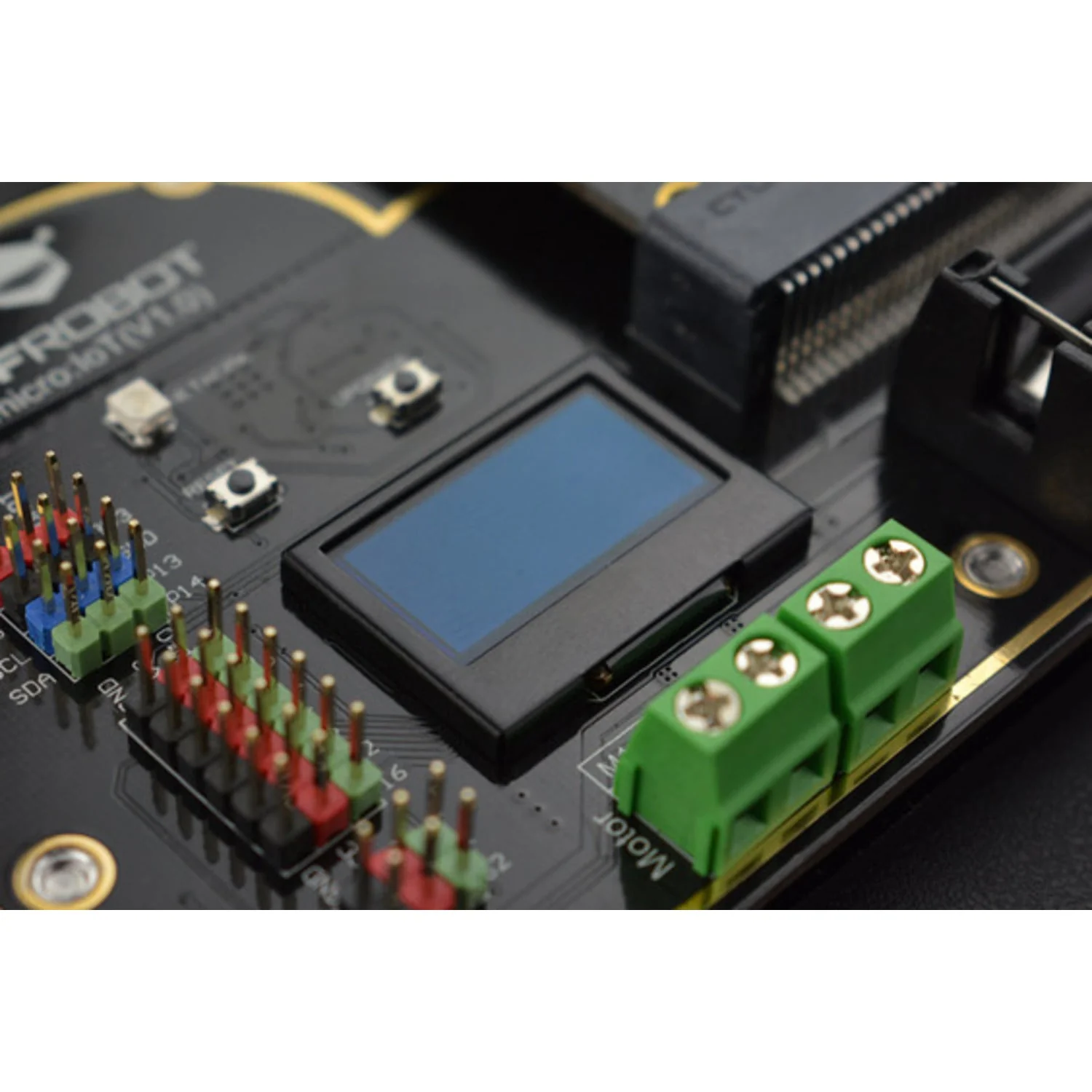

• OLED Display – Show sensor data and status information on screen
• 2-Way Motor Driver – Control two DC motors directly
• 2-Way Servo Output – Drive two servos for robotic projects
• 6-Way I/O Ports – Standard Gravity-compatible connectors (P0, P1, P2, P8, P12, P16)

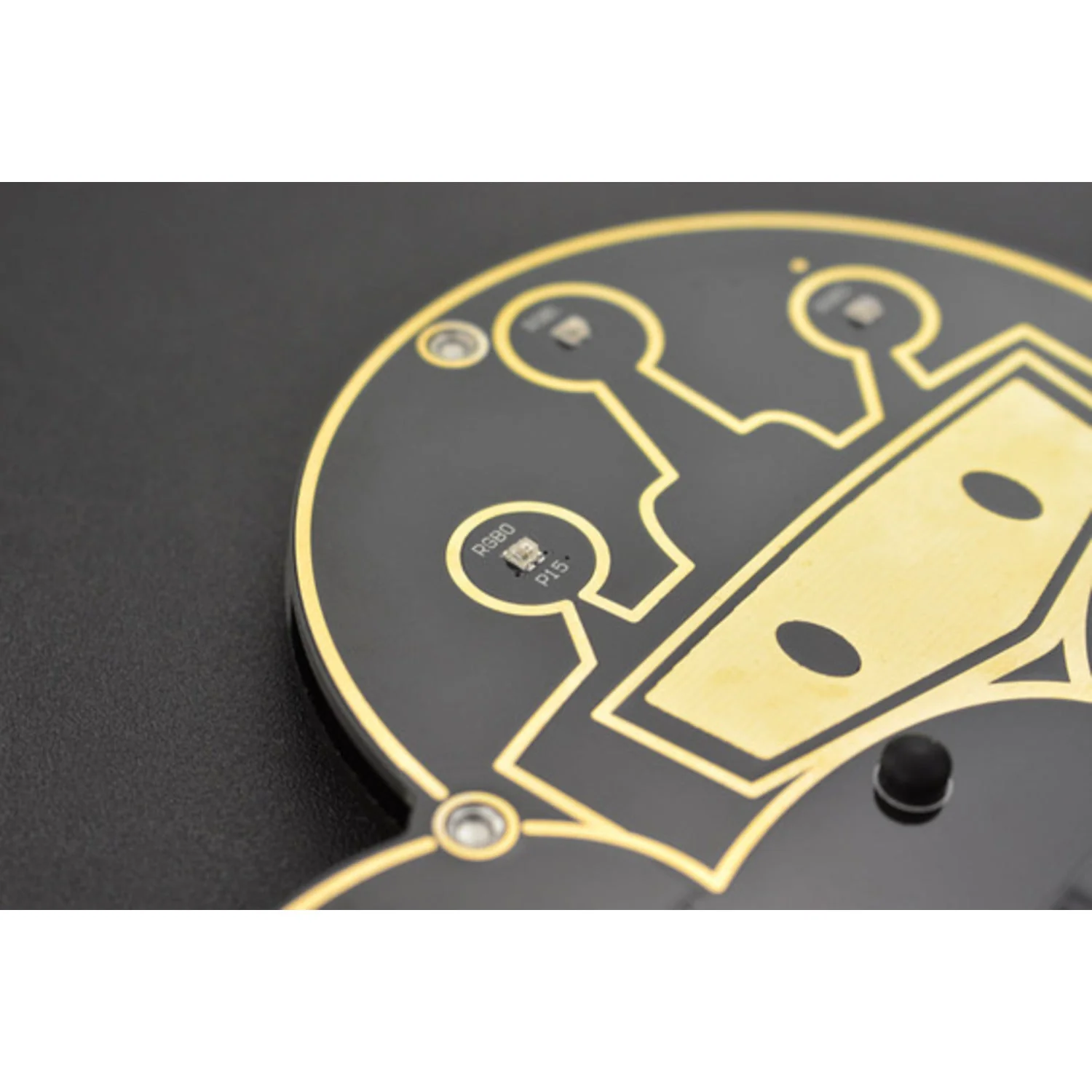

• 3× RGB LEDs – Programmable onboard lighting
• Onboard Buzzer – Audio output with switch control
• 2-Way I2C & 1-Way Serial Port – Additional communication interfaces
• Li-Ion Battery Holder – CR123A 3.6V rechargeable battery with onboard charging circuit
• Safety Protection – Short-circuit and reverse-connection protection

Specifications

• Power Supply – Li-ion battery or external power
• Battery Type – CR123A 3.6V rechargeable Li-ion
• STM8S I2C Address – 0x01
• Digital Output Voltage – 0V / 3.3V
• Analogue Input Voltage – 0–3.3V DC
• Dimensions – 148 × 112 mm
• Mounting – M3 screw holes

Ideal For

• micro:bit IoT and connected projects
• Robotics with motor and servo control
• Classroom STEM and coding activities

Resources

• Product Wiki
