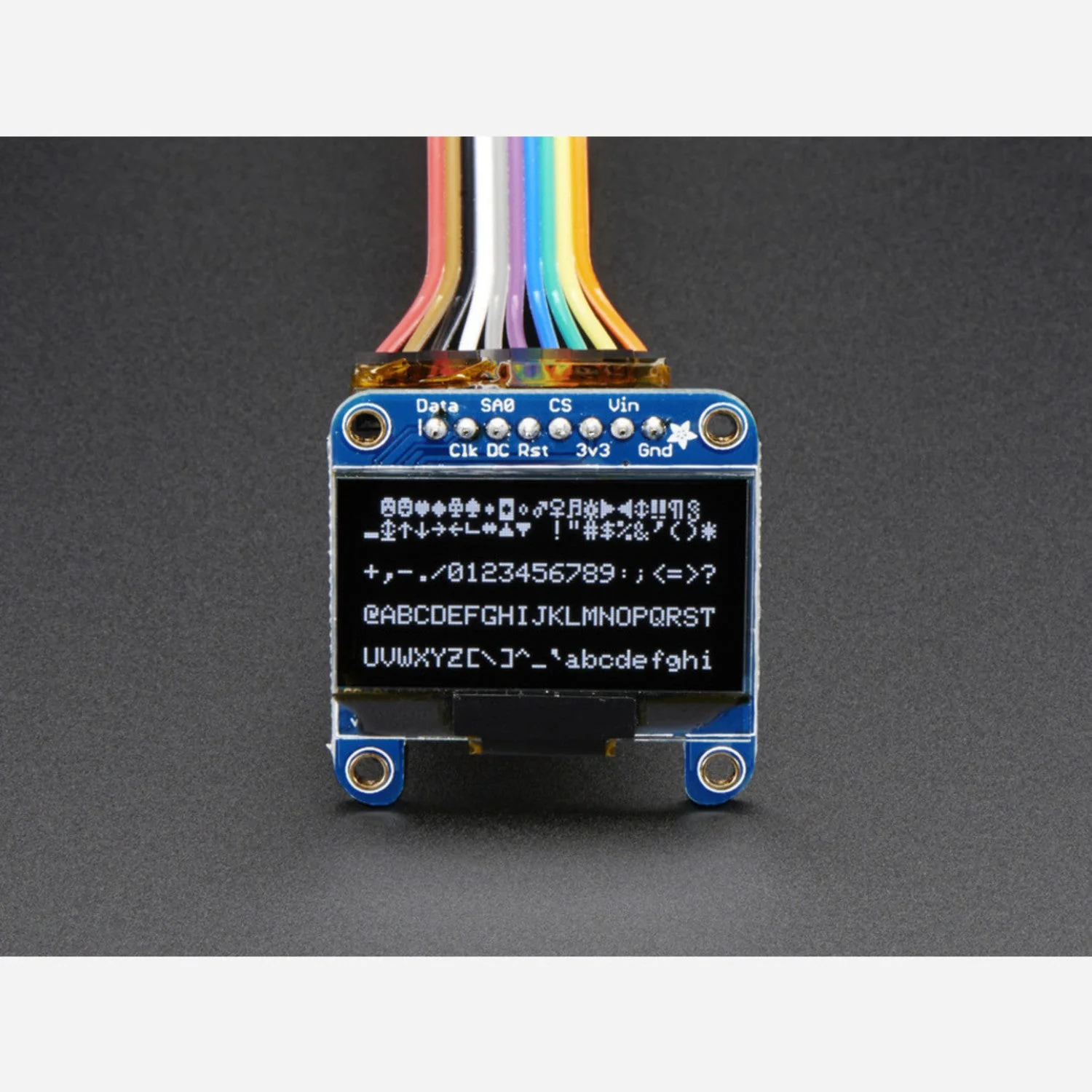

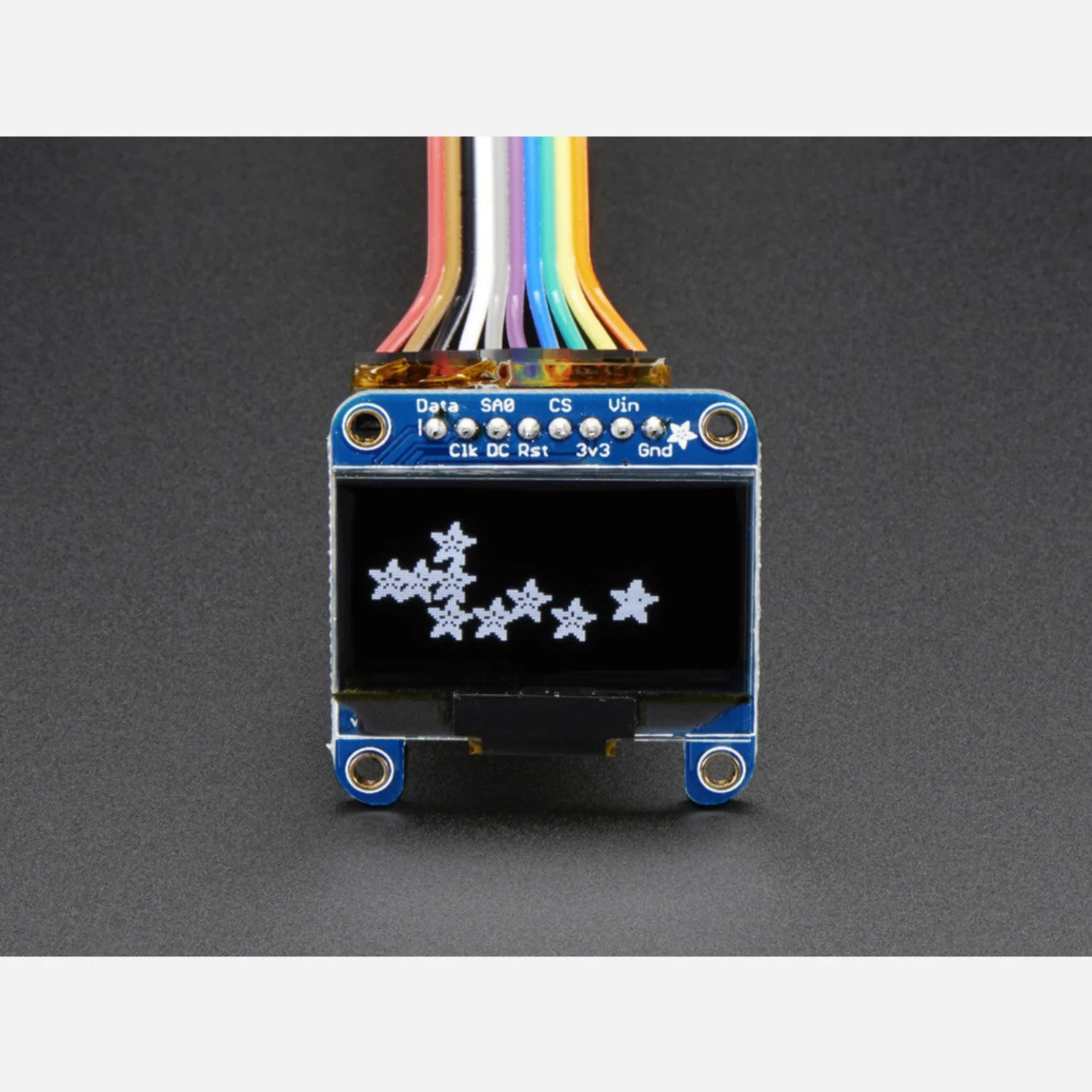

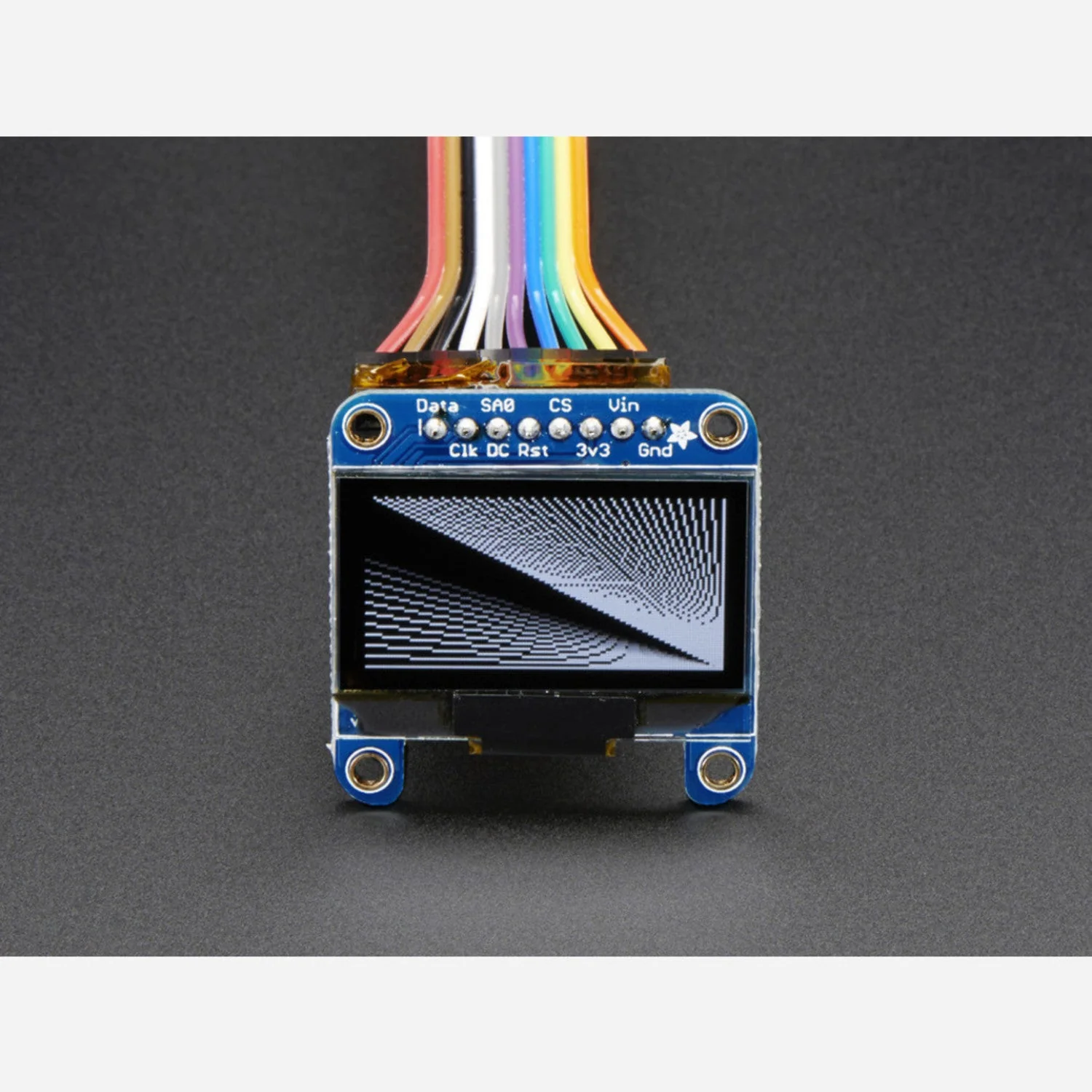

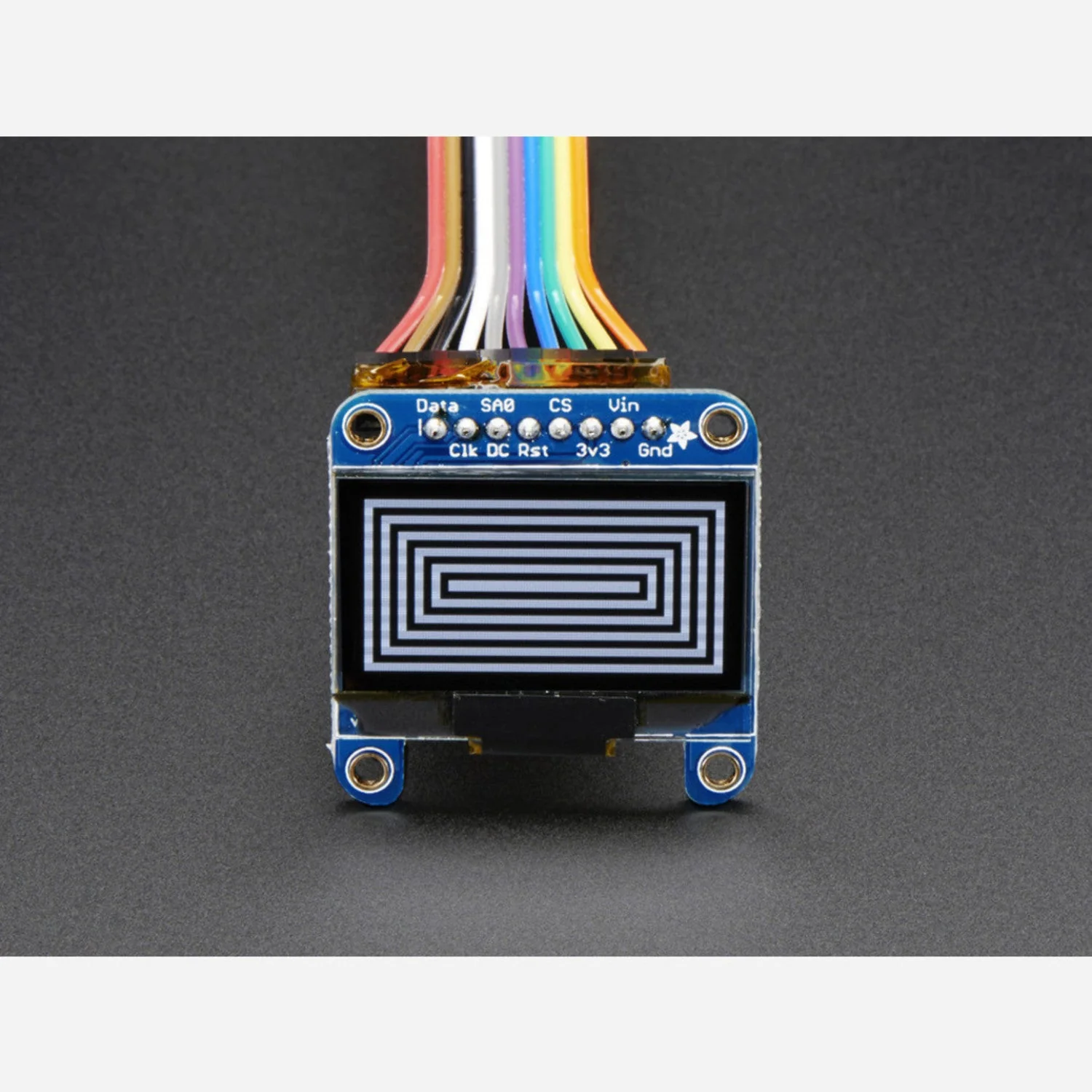

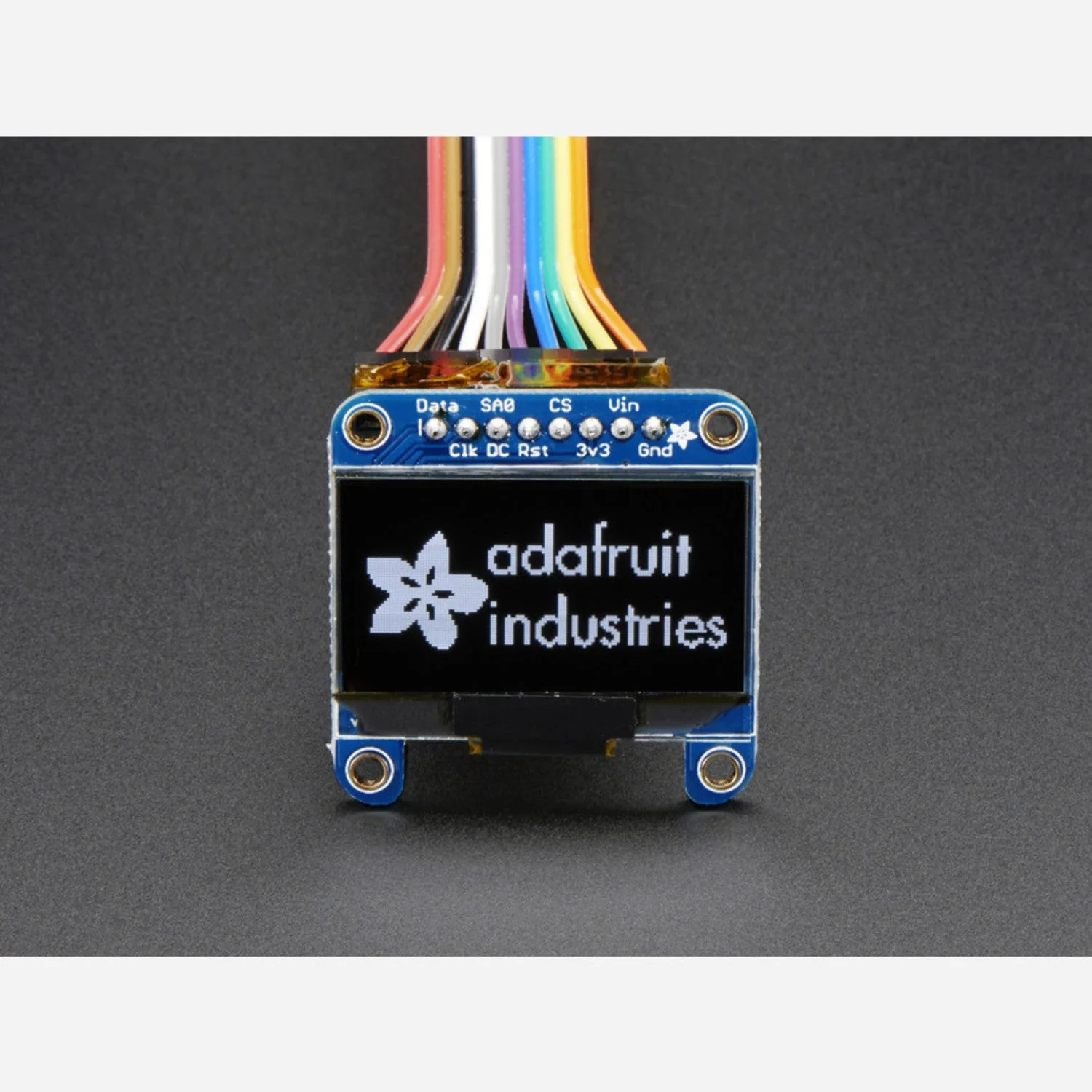

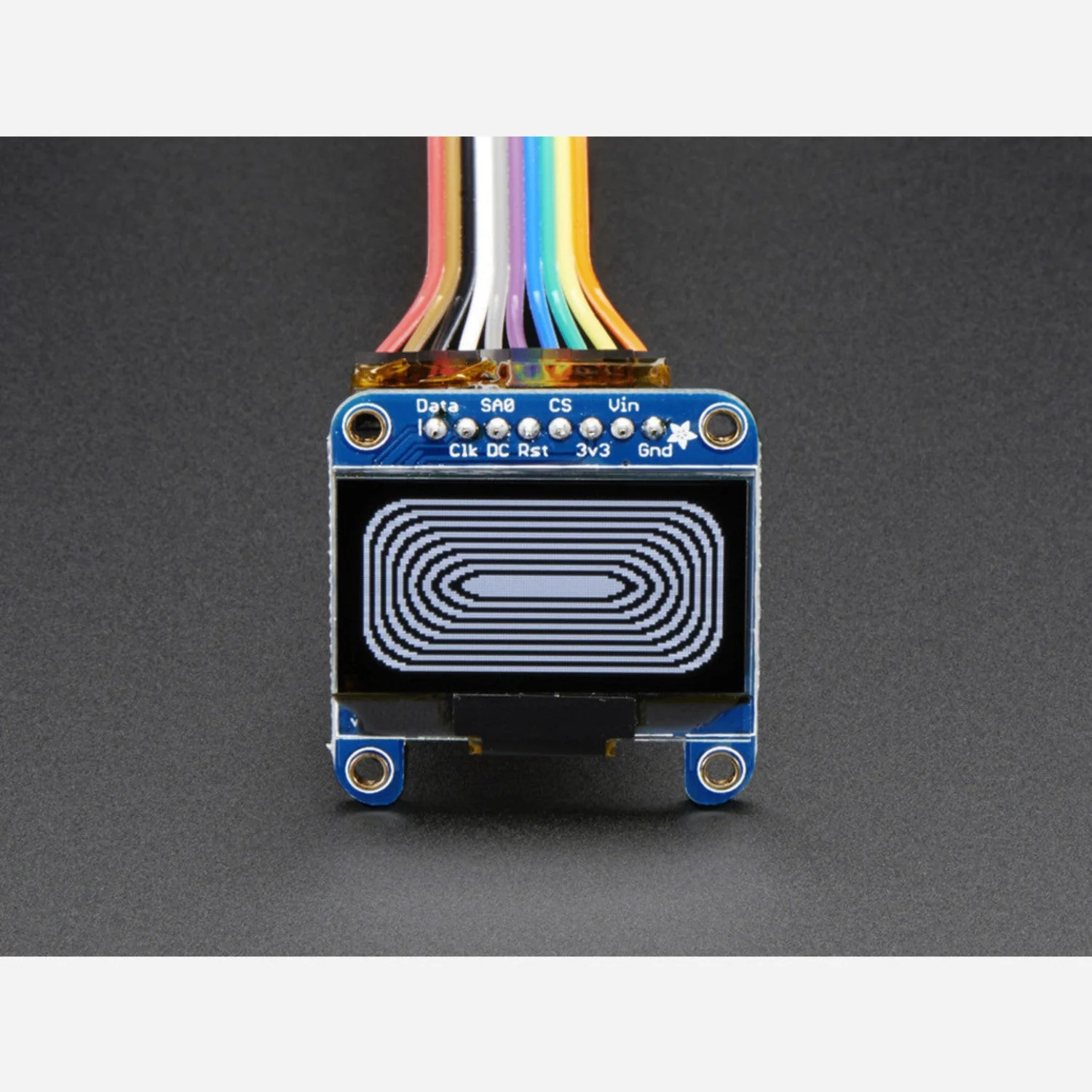

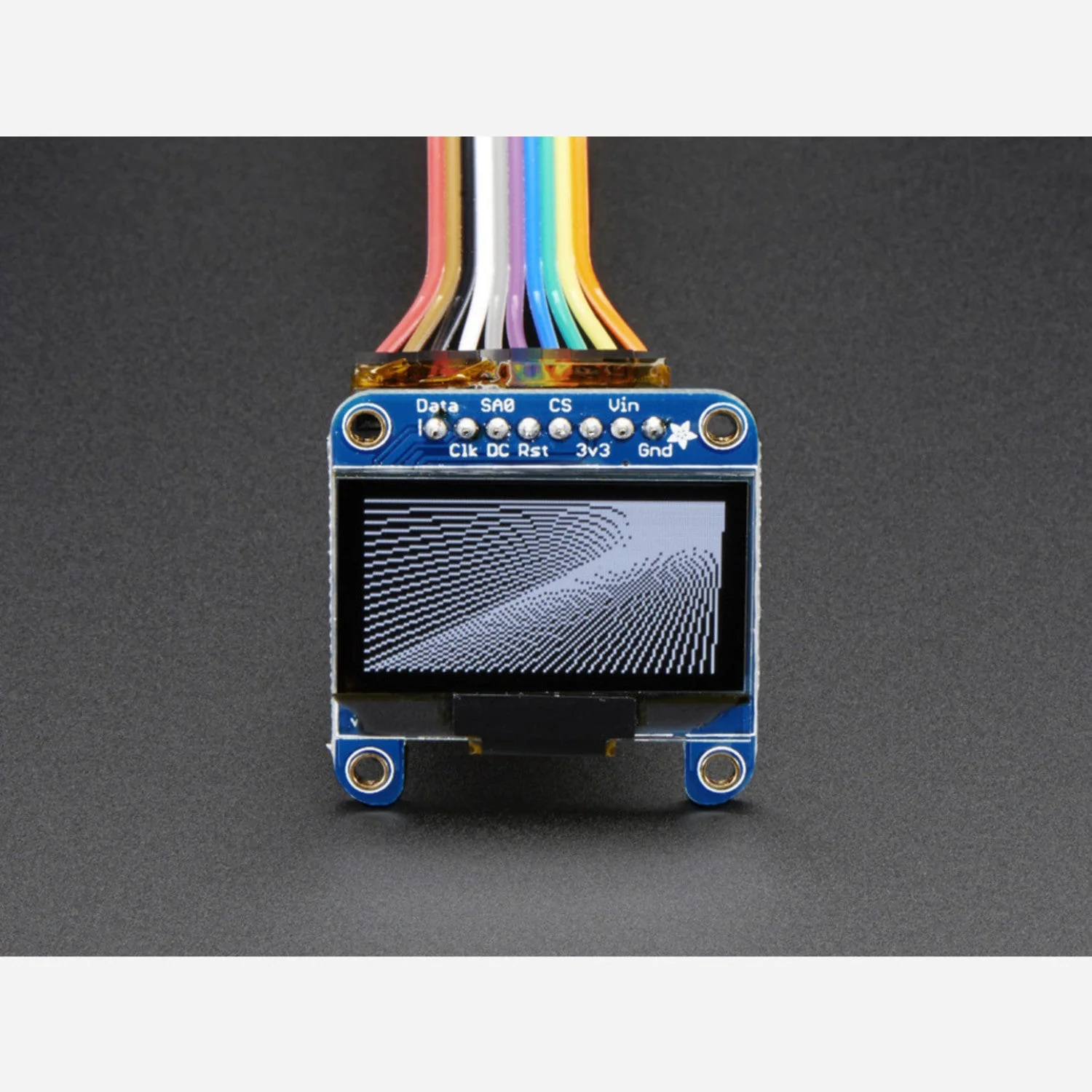

A crisp 1.3" monochrome OLED display with 128×64 white pixels, driven by the SSD1306 controller. Each pixel is individually addressable, and because OLEDs emit their own light, no backlight is needed — resulting in excellent contrast and readability in a compact form factor.

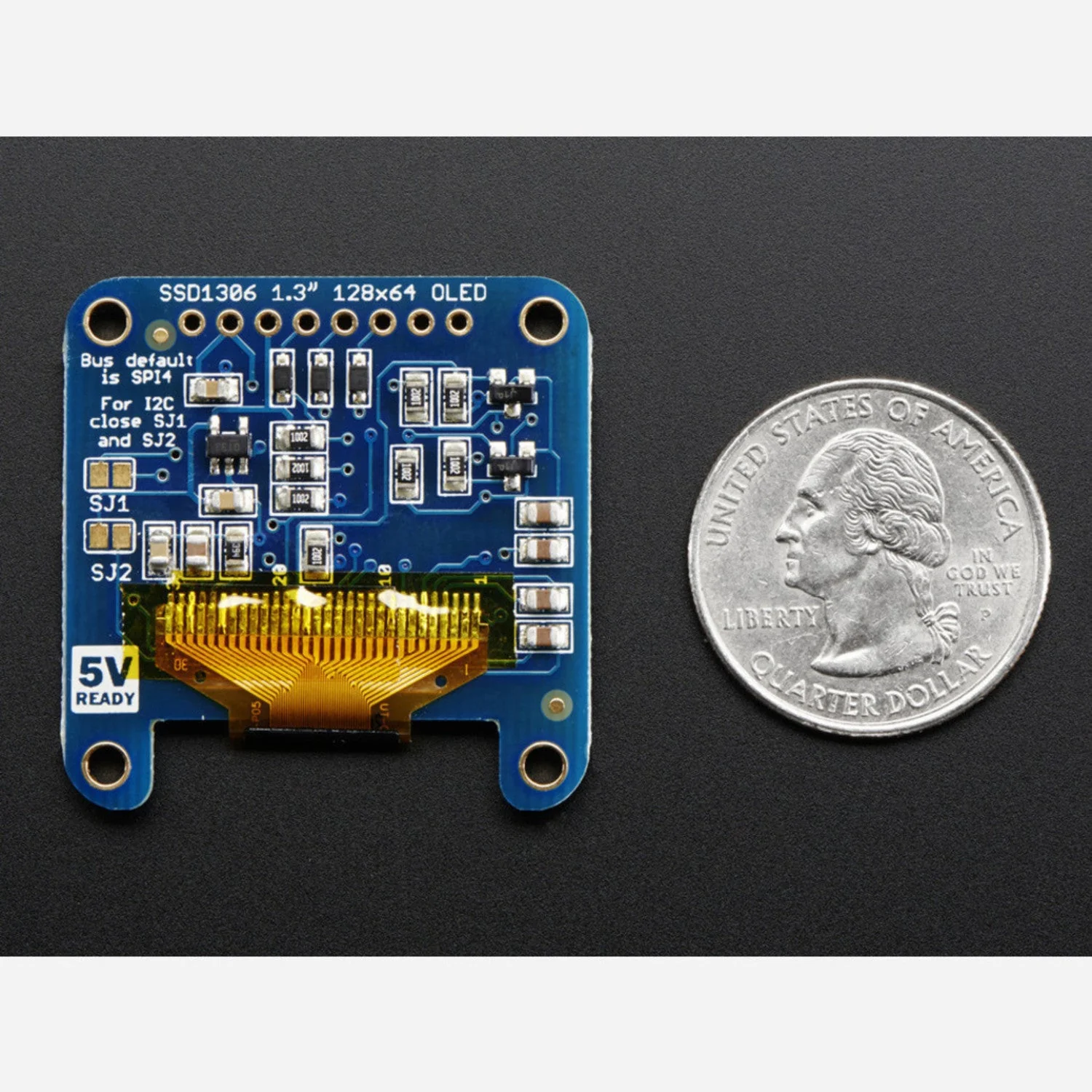

The breakout board includes a 3.3V regulator and full logic-level shifting, so it works with both 3.3V and 5V microcontrollers. The SSD1306 supports both I2C and SPI communication. An Arduino library is available for drawing text, bitmaps, pixels, rectangles, circles, and lines.

Key Features

• 1.3" OLED Display – 128×64 white pixels, high contrast
• SSD1306 Driver – I2C or SPI communication
• 3.3V and 5V Compatible – On-board regulator and level shifting
• No Backlight Required – Self-emitting pixels for sharp, clear output
• Low Power – ~40 mA average from 3.3V supply
• Built-In Charge Pump – Generates OLED drive voltage from 3.3–5V input

Specifications

• Display Size – 1.3" diagonal
• Resolution – 128 × 64 pixels
• Pixel Colour – White
• Driver IC – SSD1306
• Interface – I2C or SPI
• Supply Voltage – 3.3–5V (on-board regulator)
• Current Draw – ~40 mA typical
• RAM Required – 1 KB (for display buffer)

Ideal For

• Sensor readout displays
• Status screens for microcontroller projects
• Portable and battery-powered devices
• Arduino, Raspberry Pi, and ESP32 projects

Package Contents

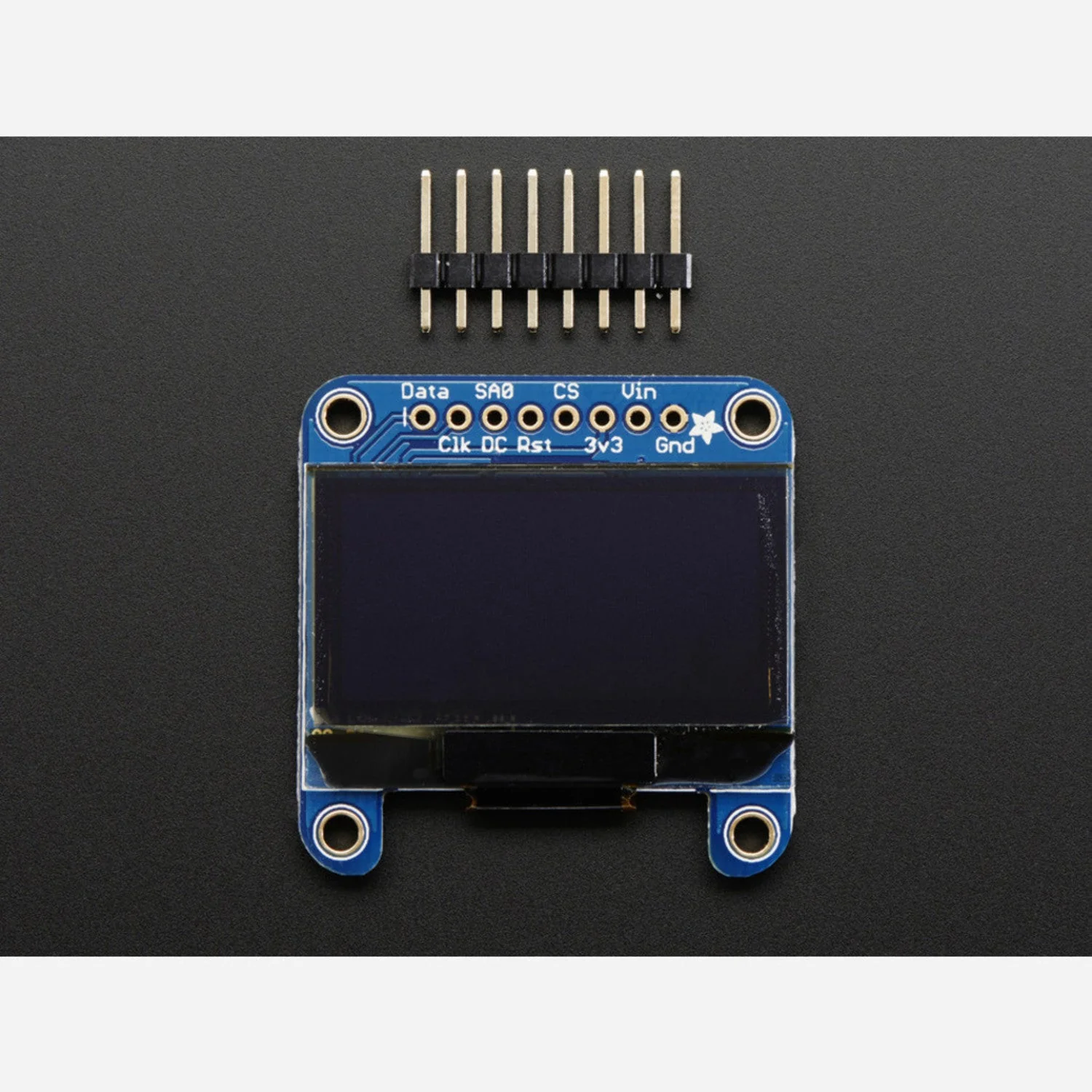

• 1× Monochrome 1.3" 128×64 OLED Graphic Display

Resources

• Adafruit OLED Breakout Tutorial and Arduino Library
