MXChip Microsoft Azure IoT Developer Kit
The MXChip Azure IoT Developer Kit is an Arduino-compatible development board designed for building cloud-connected IoT applications with Microsoft Azure. It features an STM32F412 ARM Cortex-M4F microcontroller, built-in Wi-Fi, and a rich set of on-board sensors — ready to connect to Azure IoT services out of the box.
The board includes an on-chip audio codec with microphone and headphone jack for voice-interactive projects, a 128×64 OLED display, an infrared emitter, and a security encryption chip. Program it via USB using the Arduino IDE or Visual Studio Code with the Arduino extension.
Key Features
- STM32F412 ARM Cortex-M4F – Powerful microcontroller for IoT applications
- EMW3166 Wi-Fi Module – 256 KB SRAM, 1 MB + 2 MB SPI Flash
- On-Chip Audio Codec – Microphone and headphone socket for voice projects
- 128×64 OLED Display – Built-in screen for status and data display
- Rich Sensor Suite – Motion, magnetometer, atmospheric pressure, temperature, humidity
- Security Encryption Chip – Hardware security for cloud connections
- Infrared Emitter – For IR remote control and interaction
- Arduino Compatible – USB programming with DAP Link emulator
Specifications
- MCU – STM32F412, ARM Cortex-M4F
- Wi-Fi – EMW3166 (256 KB SRAM, 1 MB + 2 MB SPI Flash)
- Display – OLED, 128×64
- Buttons – 2× programmable buttons
- LEDs – 1× RGB LED, 3× status indicators (Wi-Fi, Azure, test)
- Power – 3.3V or USB, DC-DC up to 1.5A
- Certifications – CE, FCC

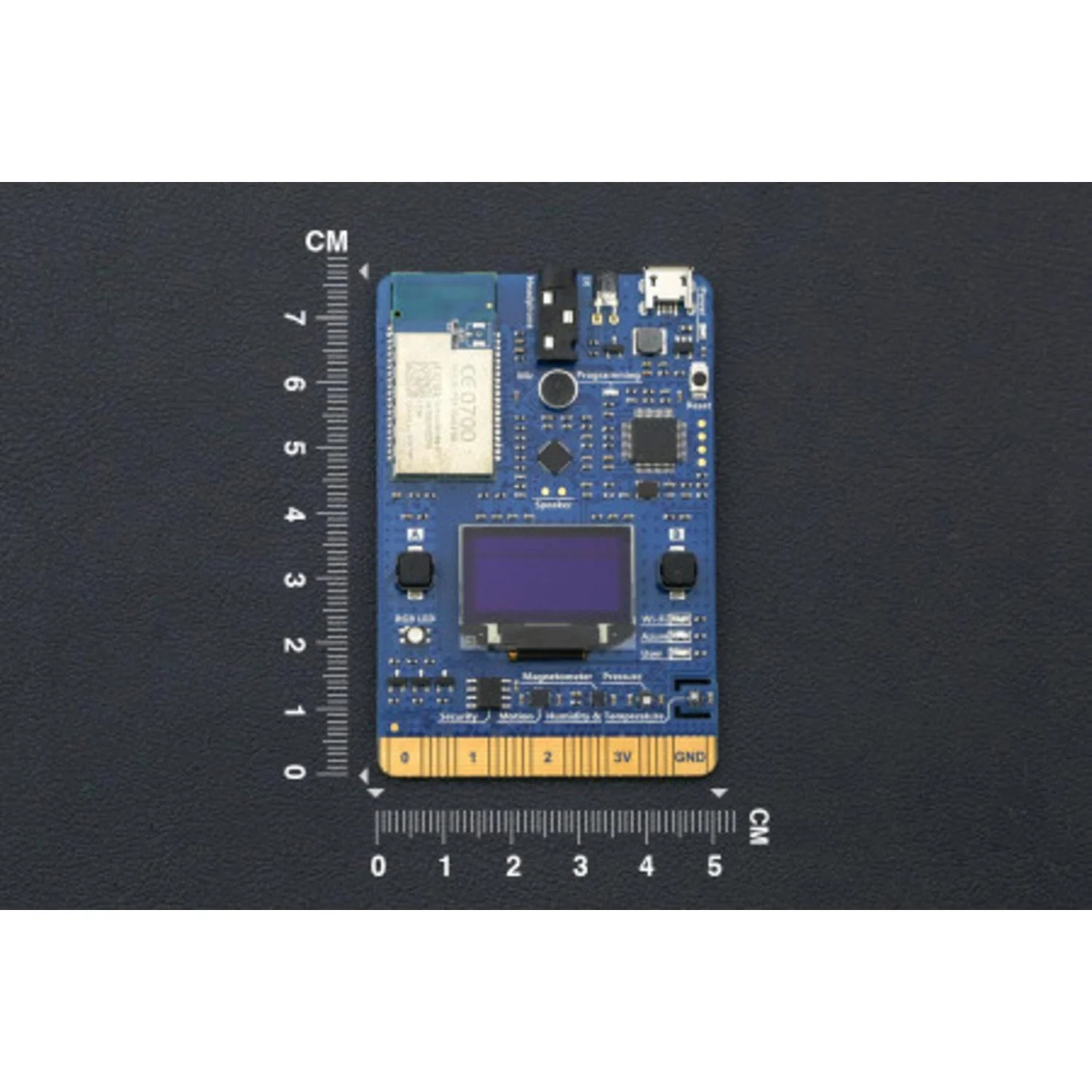

- Dimensions – 77 × 52 × 7 mm
On-Board Sensors
- Motion sensor (accelerometer/gyroscope)
- Magnetometer
- Atmospheric pressure sensor
- Temperature and humidity sensor
- Microphone
Ideal For
- Microsoft Azure IoT cloud-connected projects
- Learning IoT development and cloud services
- Voice-interactive prototypes
- Environmental monitoring with cloud dashboards
Package Contents
- 1× MXChip Azure IoT Developer Kit (AZ3166)
