The Neutis Development Kit from Emlid is a quad-core system-on-module (SoM) development platform based on the Neutis N5 module. It runs a Yocto-based Linux BSP with an up-to-date kernel, powered by a 64-bit ARM Cortex-A53 CPU and ARM Mali450 MP2 GPU.

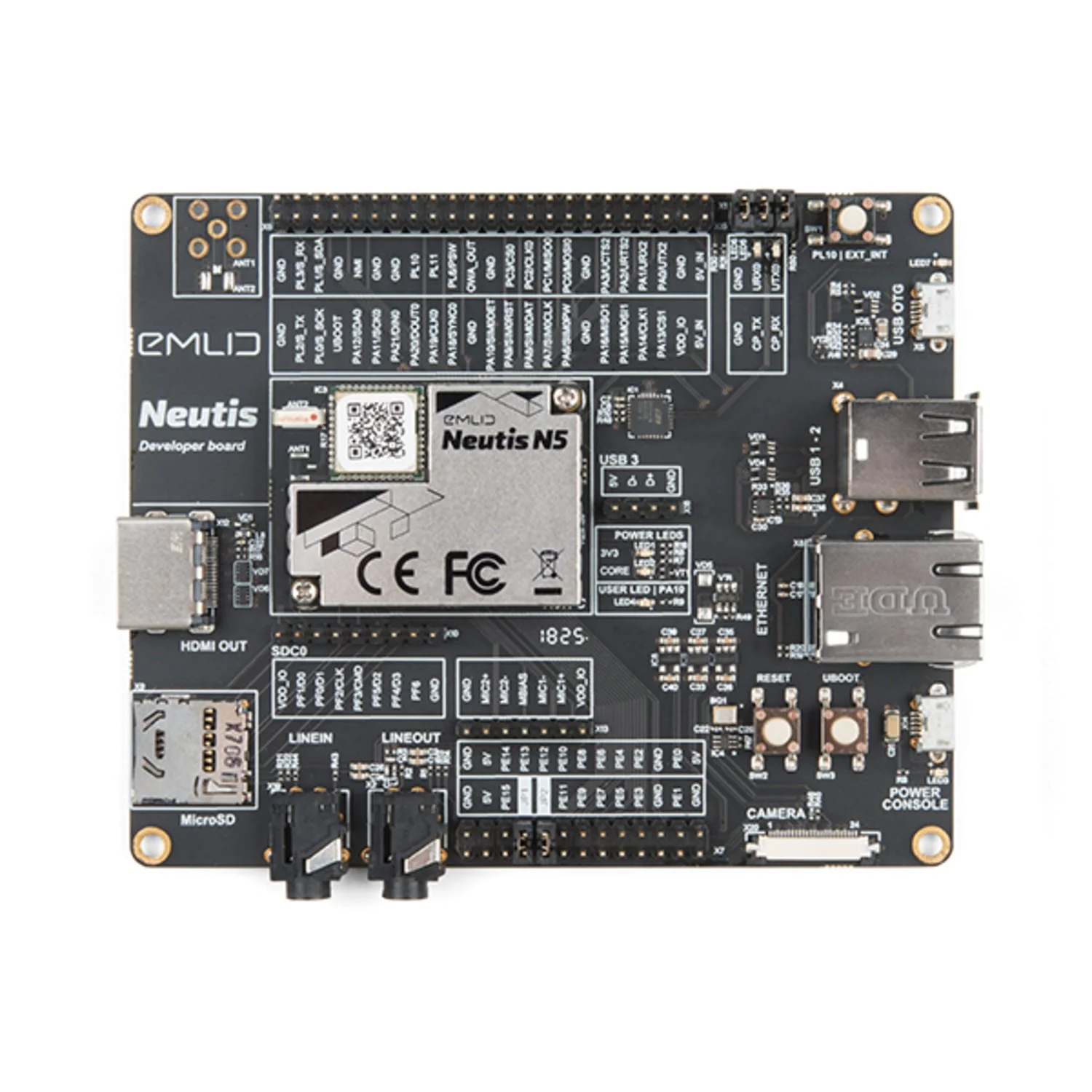

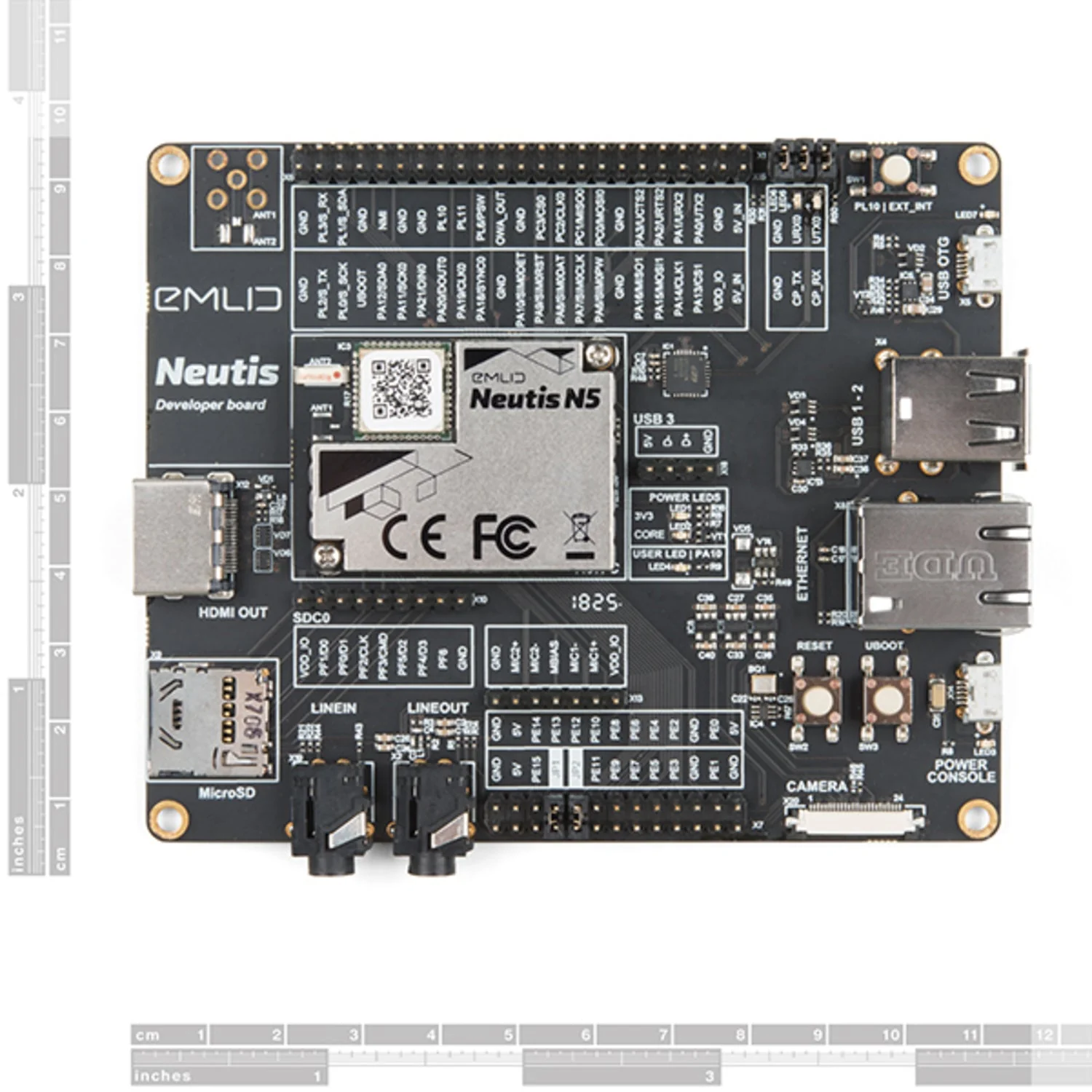

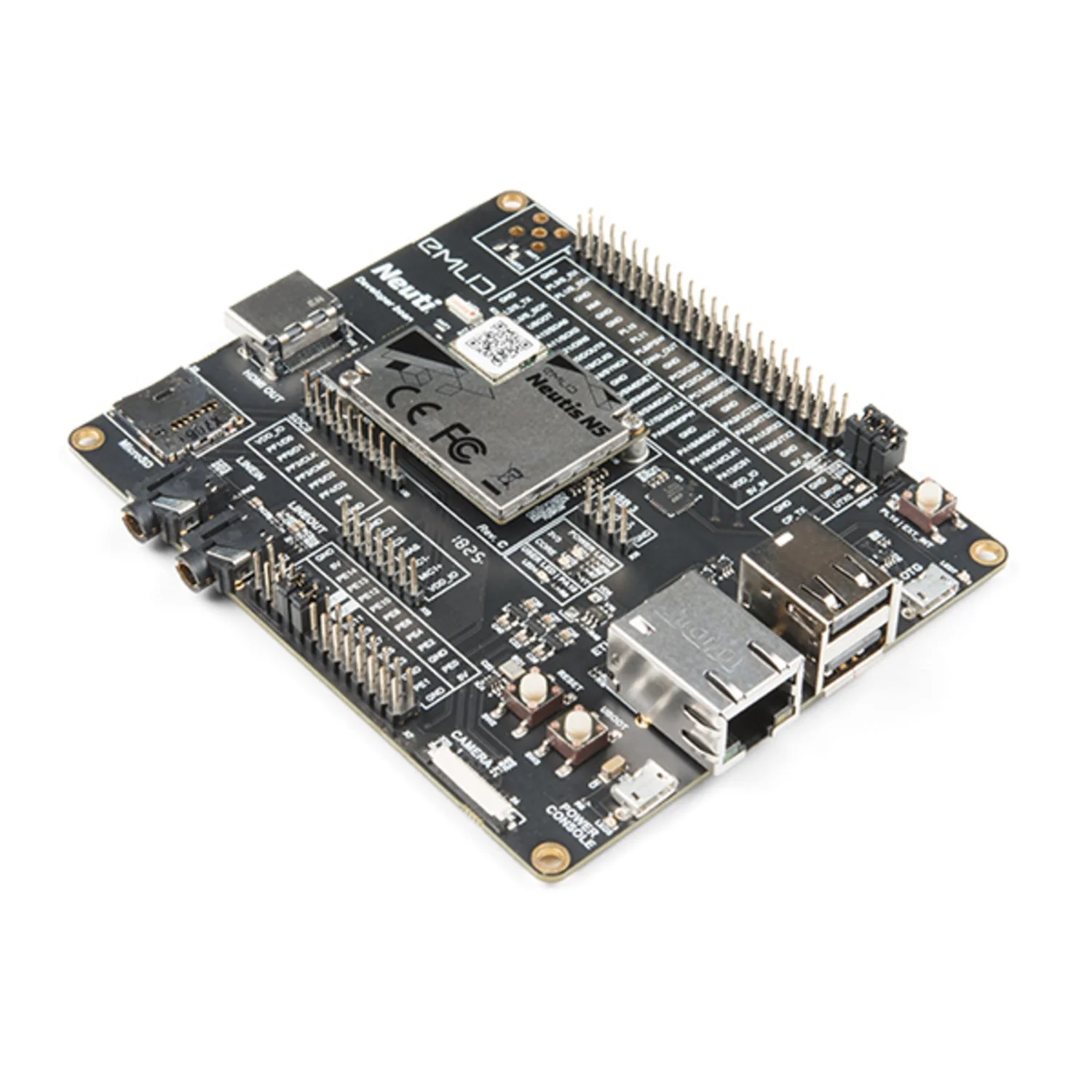

The development board provides easy access to the N5 module's features, adding a MicroSD slot, Ethernet port, USB connectors, and breakout headers. Built-in Wi-Fi, Bluetooth, and an ATECC508A secure element make it suitable for connected and security-conscious applications.

Key Features

• Neutis N5 SoM – Quad-core 64-bit ARM Cortex-A53 CPU
• ARM Mali450 MP2 GPU – Hardware graphics acceleration
• 512 MB RAM – DDR3 system memory
• 8 GB eMMC Storage – Onboard flash storage
• MicroSD Slot – Expandable storage on the dev board
• Wi-Fi 802.11 b/g/n – Built-in antenna
• Bluetooth 4.0 – Dual-mode with BLE
• Ethernet Port – Wired network connectivity
• USB Connectors – Host and device interfaces
• ATECC508A Secure Element – Cryptographic key storage, unique IDs, FIPS random number generation
• Yocto Linux BSP – Up-to-date kernel with build system support

Ideal For

• IoT and connected device prototyping
• Embedded Linux development
• Security-focused applications with hardware crypto
• SoM evaluation and carrier board design
