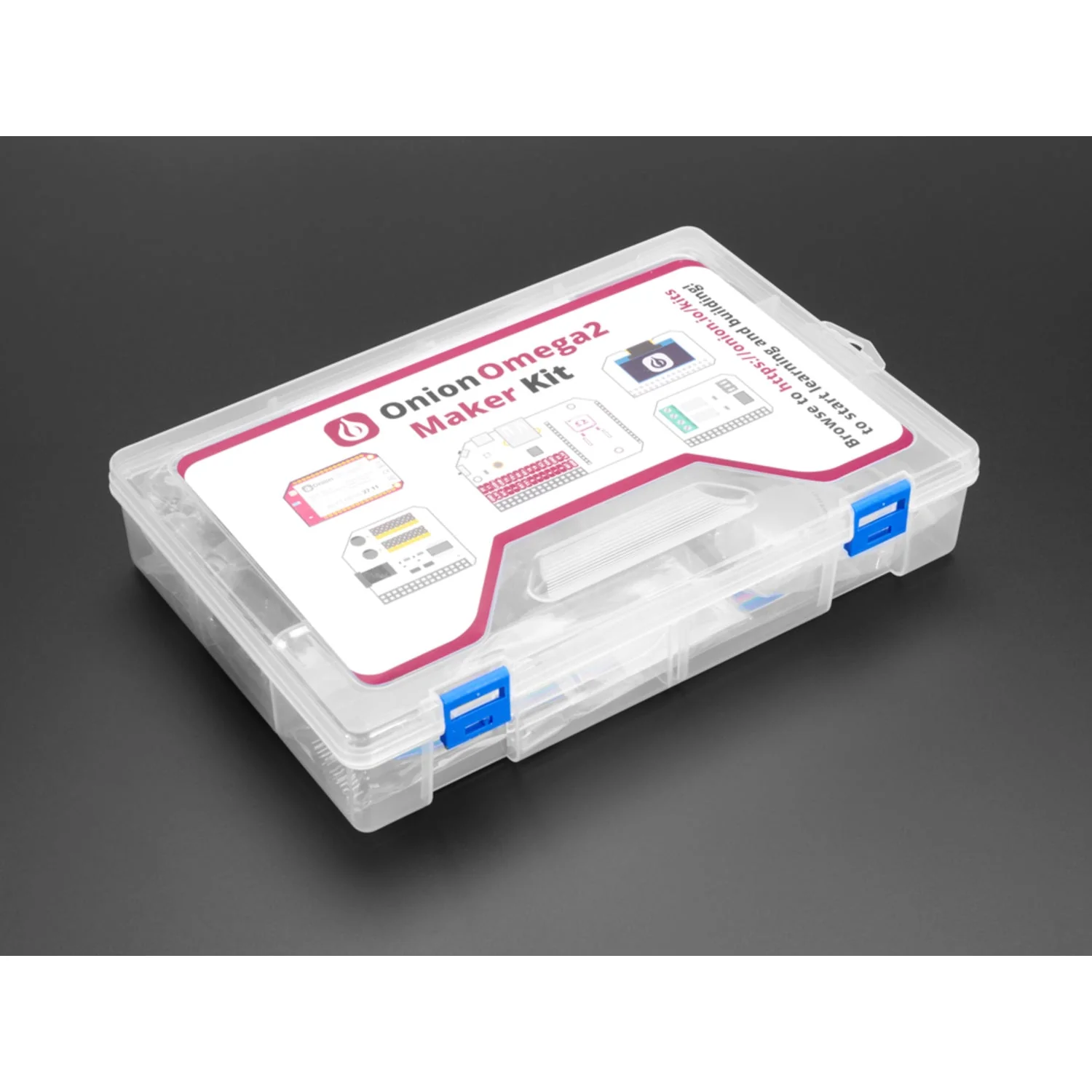

The Onion Omega2+ Maker Kit is a comprehensive starter kit for the Omega2+ — a compact Linux-based IoT development board powered by the MediaTek MT7688 with built-in WiFi. It sits between a microcontroller and a full computer: low power with a static filesystem, but running a variant of OpenWRT (Onion OS) with full TCP/IP, SSL/TLS, and multi-language programming support.

This kit includes the Omega2+, expansion dock, three add-on boards (relay, PWM/servo, OLED), plus a full collection of electronic components for hands-on prototyping — LEDs, sensors, displays, servos, motors, and more.

Key Features

• Omega2+ Development Board – Linux-based IoT computer with built-in WiFi
• MediaTek MT7688 SoC – WiFi router-grade processor
• Multi-Language Support – Python, C++, Node.js, PHP, Bash, Ruby, Perl, Lua, and more
• Three Expansion Boards – Relay, PWM/Servo, and OLED display expansions included
• Full Component Kit – LEDs, sensors, displays, servos, motors, and prototyping essentials
• Web Interface & SSH – Program via command line or simplified web UI

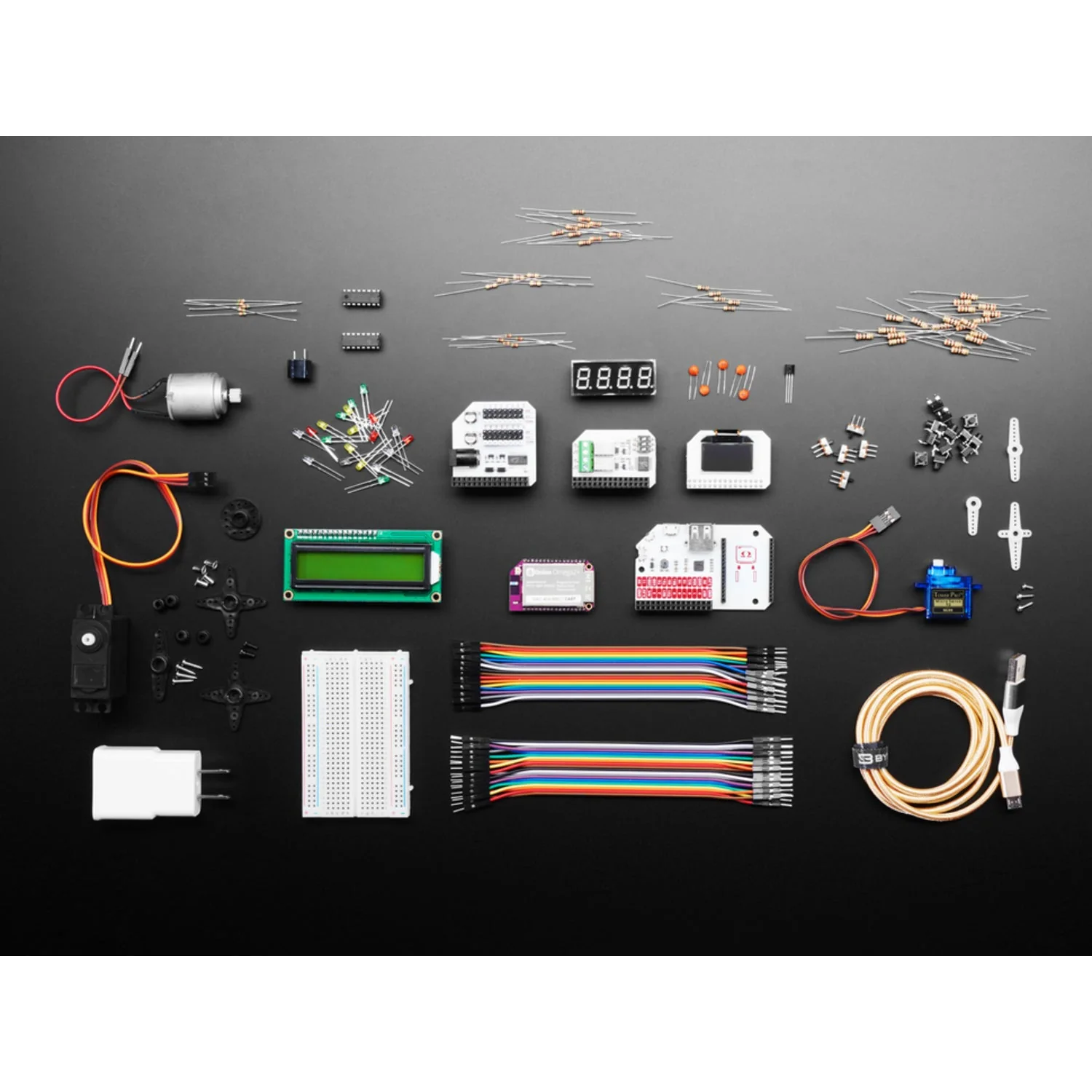

Package Contents

Boards & Expansions

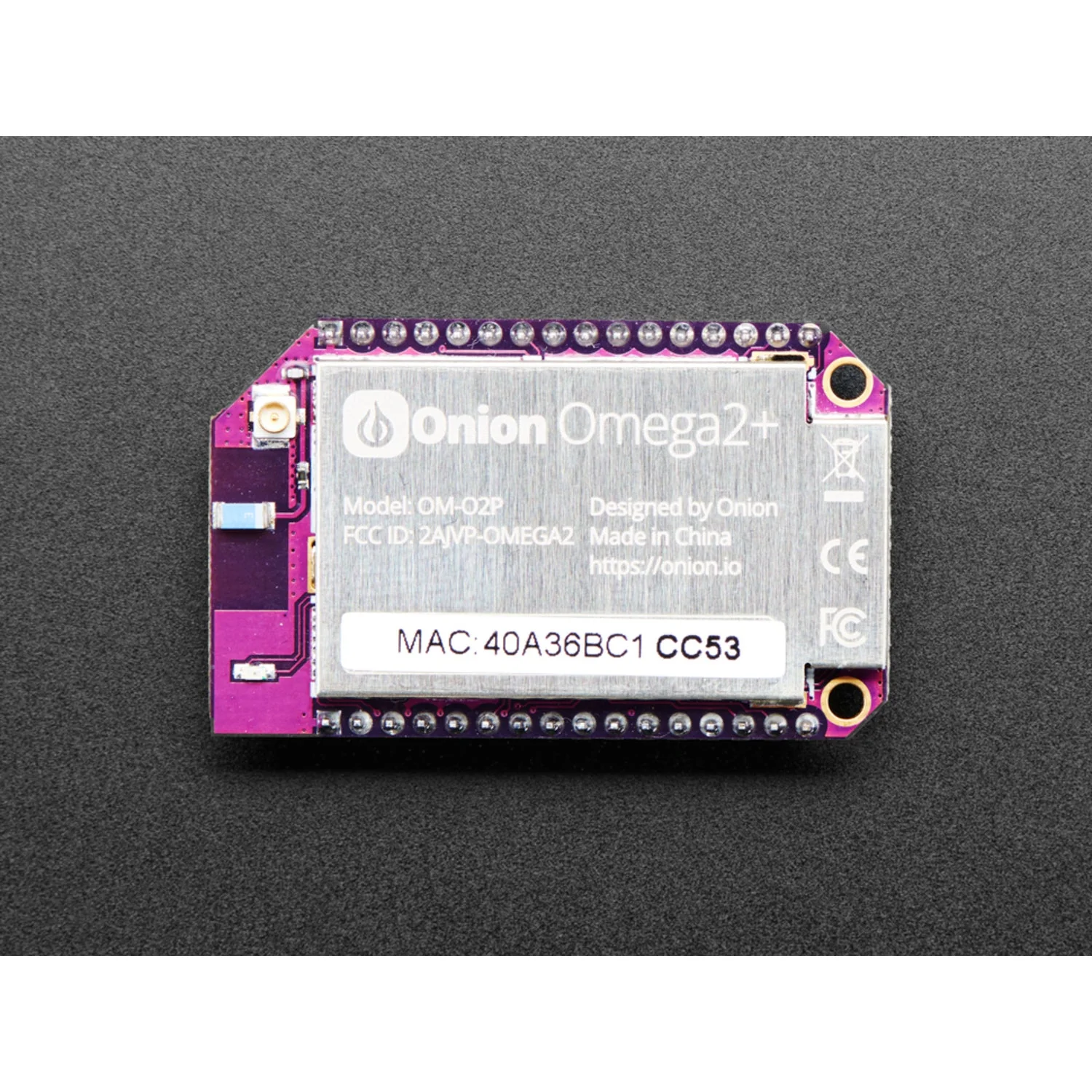

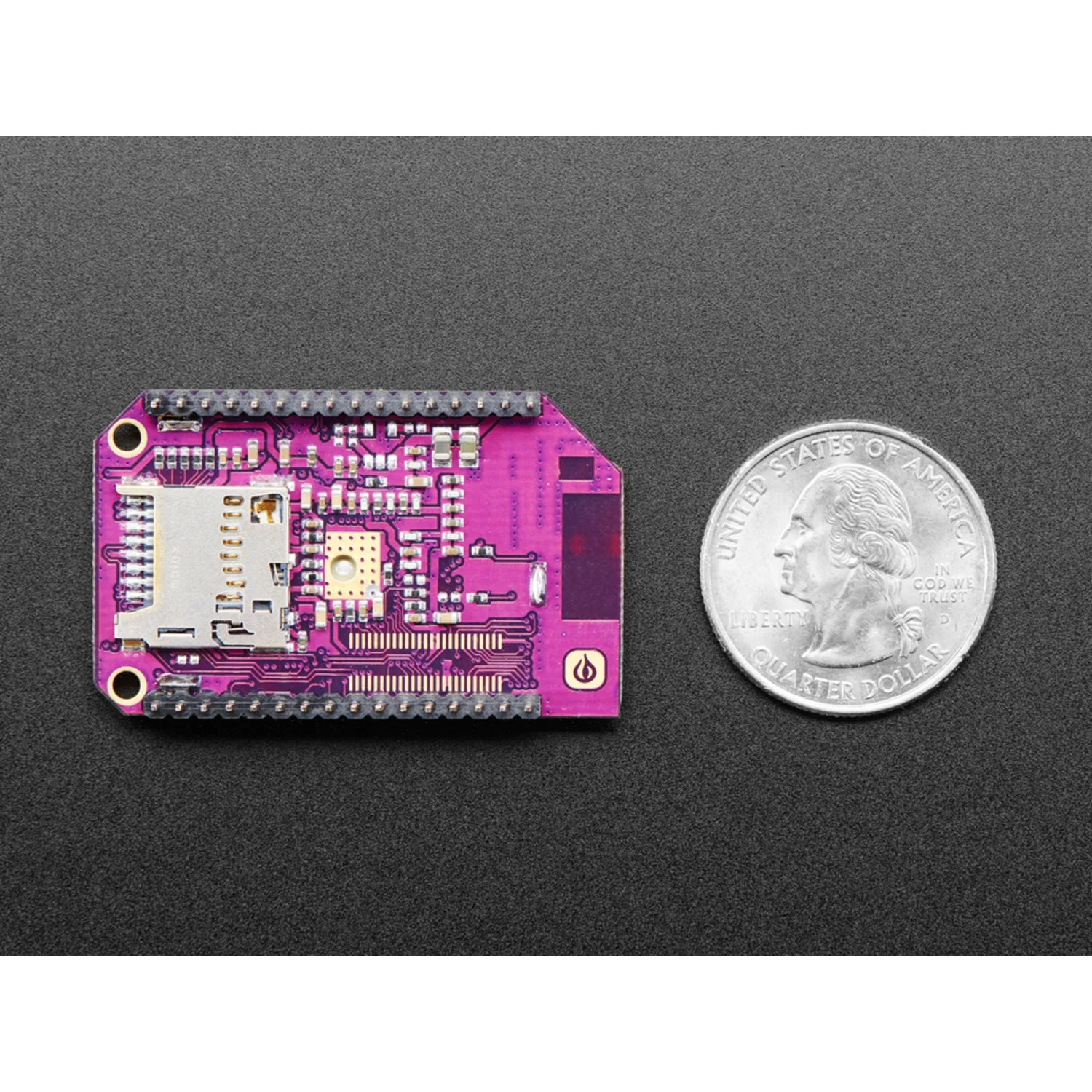

• 1× Omega2+ Development Board
• 1× Expansion Dock
• 1× Relay Expansion
• 1× Servo (PWM) Expansion
• 1× OLED Expansion

Power & Cables

• 1× Wall Charger
• 1× USB Micro-B Cable

Displays & Sensors

• 1× 16×2 LCD Screen
• 1× 7-Segment Display
• 1× Digital Temperature Sensor

Actuators

• 1× Standard Servo
• 1× Sub-Micro Servo
• 1× DC Motor
• 1× H-Bridge
• 1× Buzzer

Prototyping Components

• 1× Half-Size Breadboard
• 20× Male/Male Jumper Wires
• 20× Male/Female Jumper Wires
• 20× LEDs
• 12× Push Buttons
• 5× Slide Switches
• 1× Shift Register
• Resistors: 5× 100Ω, 20× 200Ω, 5× 470Ω, 5× 1kΩ, 5× 5.1kΩ, 5× 51kΩ
• 5× 100nF Capacitors

Ideal For

• Learning IoT development with Linux
• WiFi-connected physical computing projects
• Prototyping IoT products and connected devices
• Multi-language programming on embedded hardware
