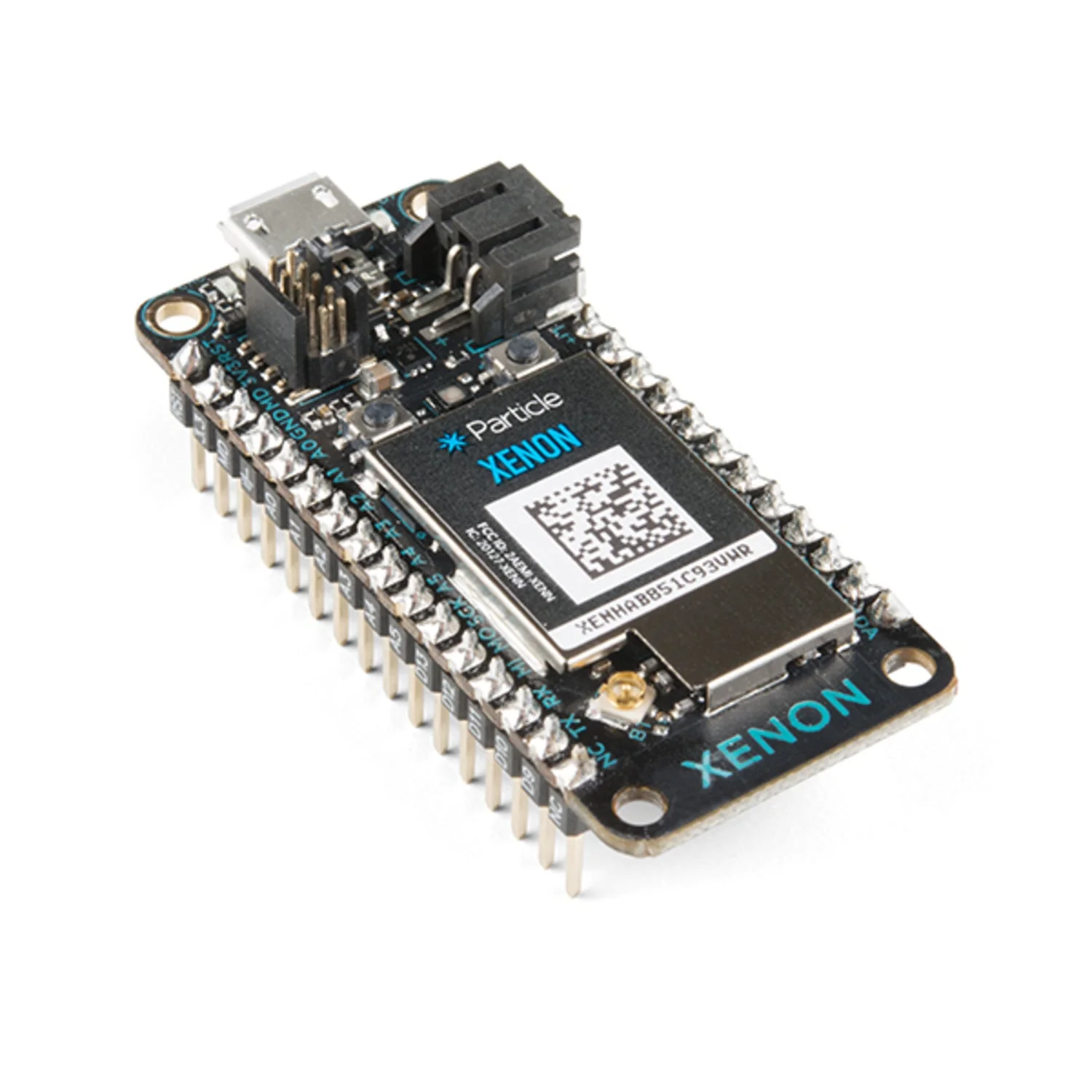

The Particle Xenon is a low-cost mesh-enabled IoT development board built around the Nordic nRF52840 SoC. It features an ARM Cortex-M4 processor with OpenThread mesh networking, NFC, Bluetooth, and plenty of GPIOs — all in the popular Adafruit Feather form factor.

The board includes a JST connector for LiPo battery charging over USB, an RGB status LED, a JTAG (SWD) debugging connector, and an onboard PCB antenna. Its Feather-compatible footprint means it works with the wide ecosystem of Feather Wings and shields.

Key Features

• Nordic nRF52840 SoC – ARM Cortex-M4 processor with floating point unit
• OpenThread Mesh Networking – Built-in mesh support with onboard PCB antenna
• NFC & Bluetooth – Multiple wireless connectivity options
• Feather Form Factor – Compatible with Feather Wings and shields
• LiPo Battery Support – JST connector with USB charging
• JTAG/SWD Debugging – On-board debug connector
• RGB Status LED – Visual feedback for device state

Ideal For

• IoT prototyping and mesh networking projects
• Low-power wireless sensor nodes
• Bluetooth and NFC applications

Package Contents

• 1× Particle Xenon Development Board
