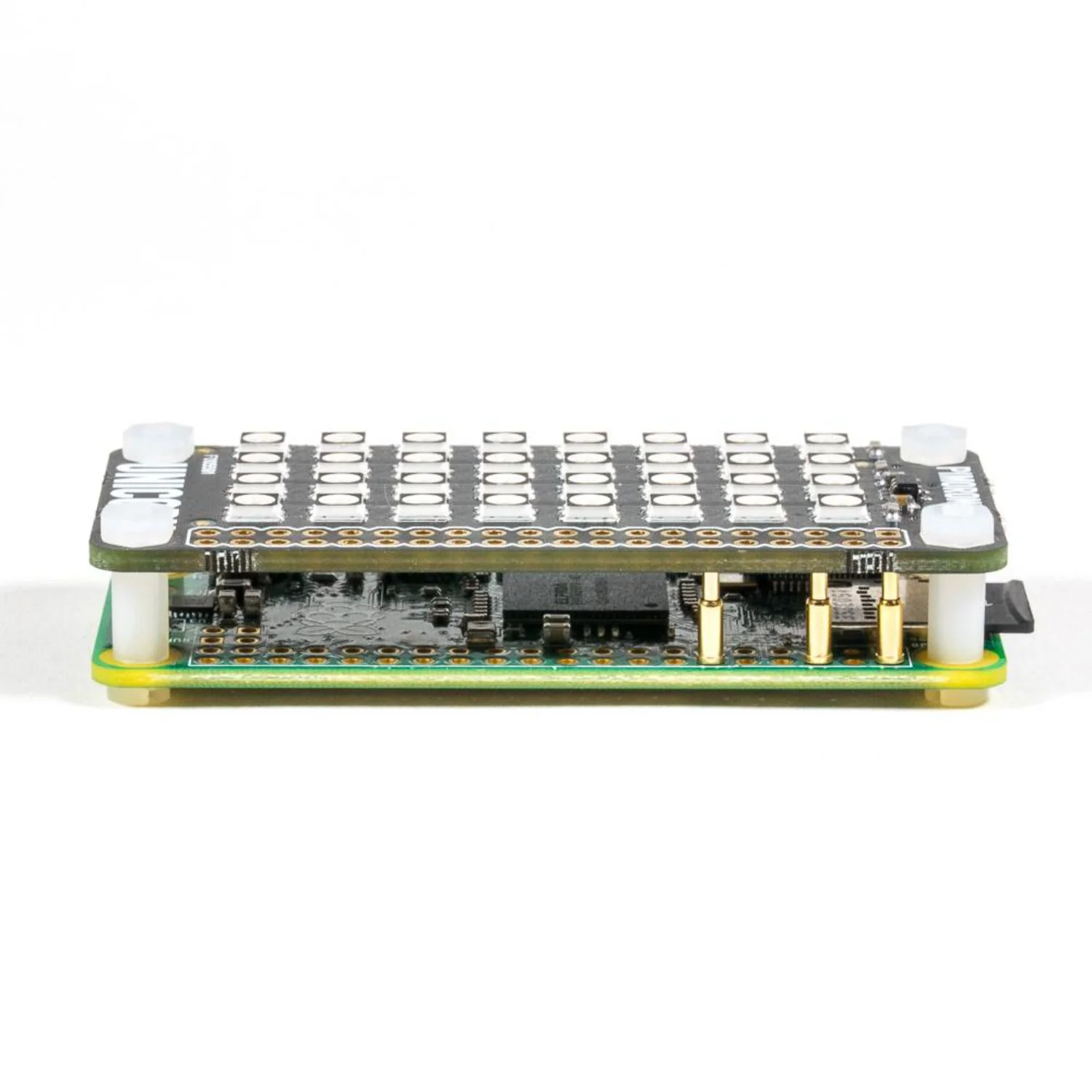

Fit a pHAT to your Raspberry Pi Zero without soldering! These spring-loaded pogo pins provide a reliable electrical contact between your Pi Zero and pHAT, making it quick and easy to swap boards between projects with no tools required.

Specially engineered to be just the right size for a solid connection, these pogo pins are a simple alternative to traditional soldered headers. Because they're non-permanent, you can easily move them between different projects.

Key Features

• Solderless Design – No soldering or special tools needed
• Spring-Loaded Pogo Pins – Reliable electrical contact between Pi Zero and pHAT
• Swappable – Easily move between projects without permanent connections
• Pin Length – ~9.5 mm extended, ~7 mm compressed

Installation

• Find the pins used by your pHAT at pinout.xyz
• Pop the four bolts through the Pi's mounting holes from below
• Slide on the four spacers
• Sit the pogo pins (short end down) in the appropriate GPIO holes
• Place the pHAT on top
• Secure with the four nuts

Package Contents

• 10× pogo GPIO pins
• 4× M2.5 × 12 mm white nylon bolts
• 4× M2.5 × 7 mm white nylon spacers
• 5× M2.5 white nylon nuts
