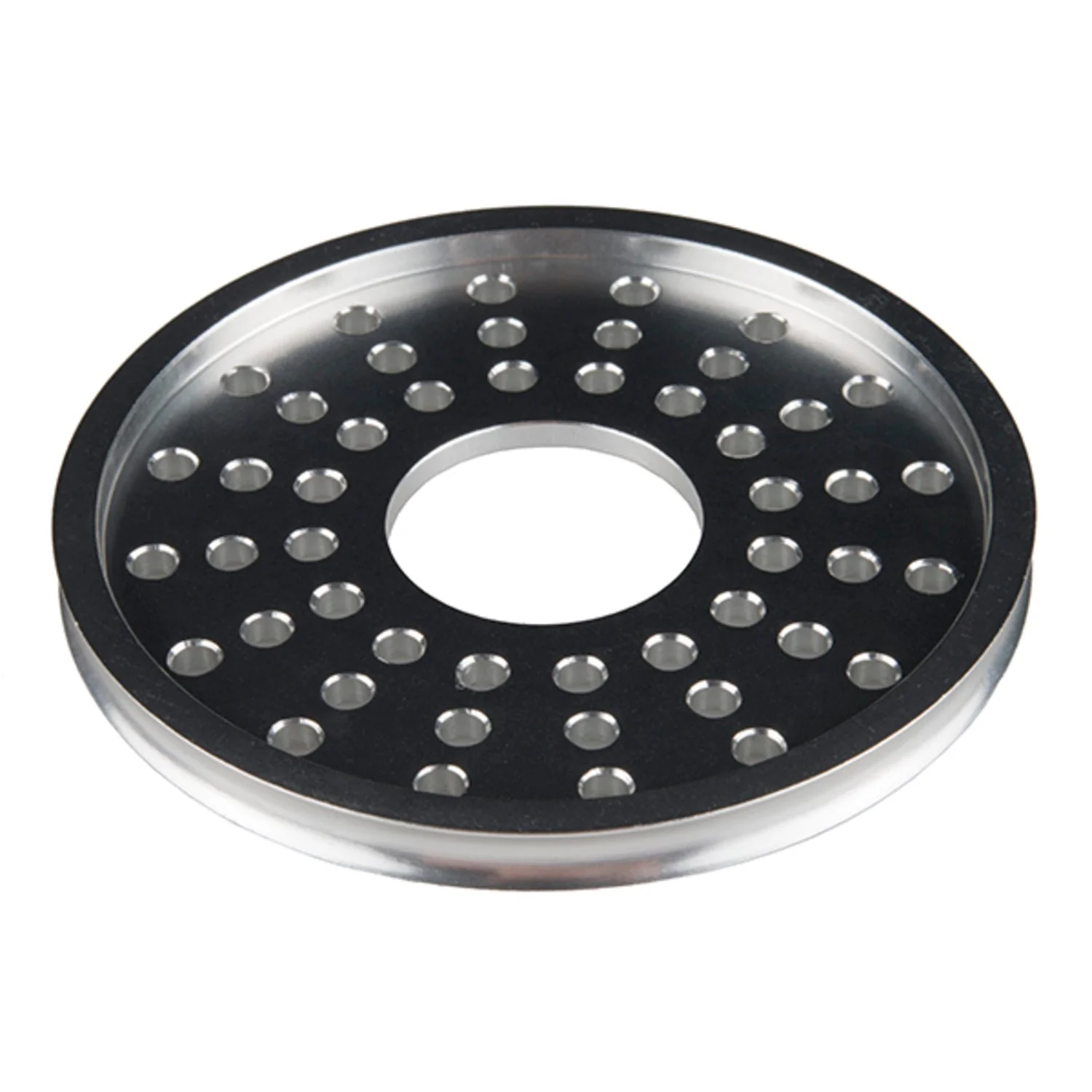

A hub-mountable aluminium pulley from the Actobotics robotics building system. Designed to drive wheels or other pulleys using 1/4″ (6.35 mm) or 1/8″ (3.18 mm) belts, it features a 1″ (25.4 mm) bore and the standard 1.5″ (38.1 mm) Actobotics hub pattern.

Specifications

• Outer Diameter: 3.125″ (79.4 mm)
• Bore: 1″ (25.4 mm)
• Hub Pattern: 1.5″ (38.1 mm)
• Belt Compatibility: 1/4″ (6.35 mm) and 1/8″ (3.18 mm)
• Material: Aluminium
• Part Number: 615138

Ideal For

• Actobotics robotics builds
• Belt-driven mechanisms and power transmission
• Custom electromechanical prototypes

Package Contents

• 1× Hub-Mount Aluminium Pulley (615138)

Resources

• 3D Model – SketchUp (.skp)
