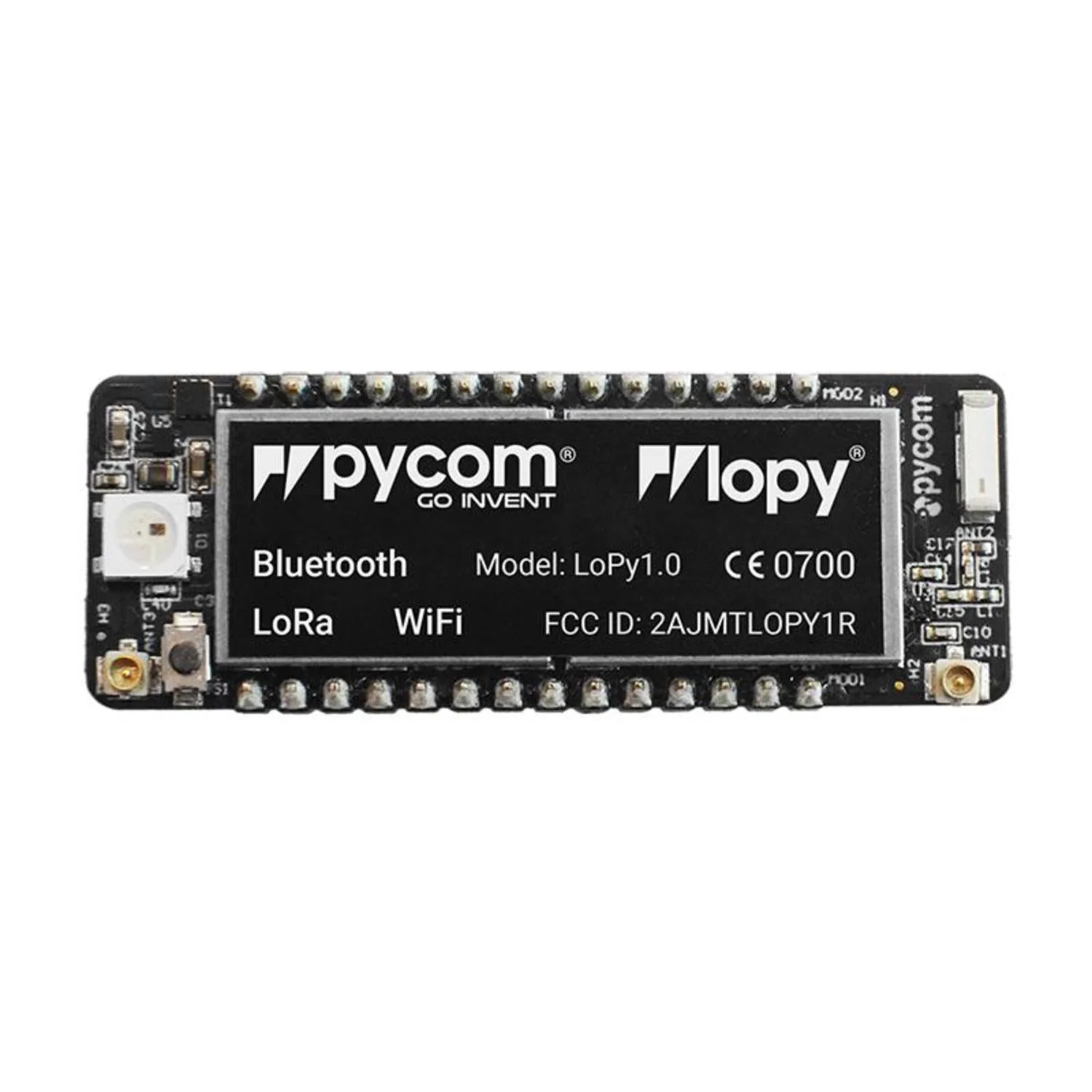

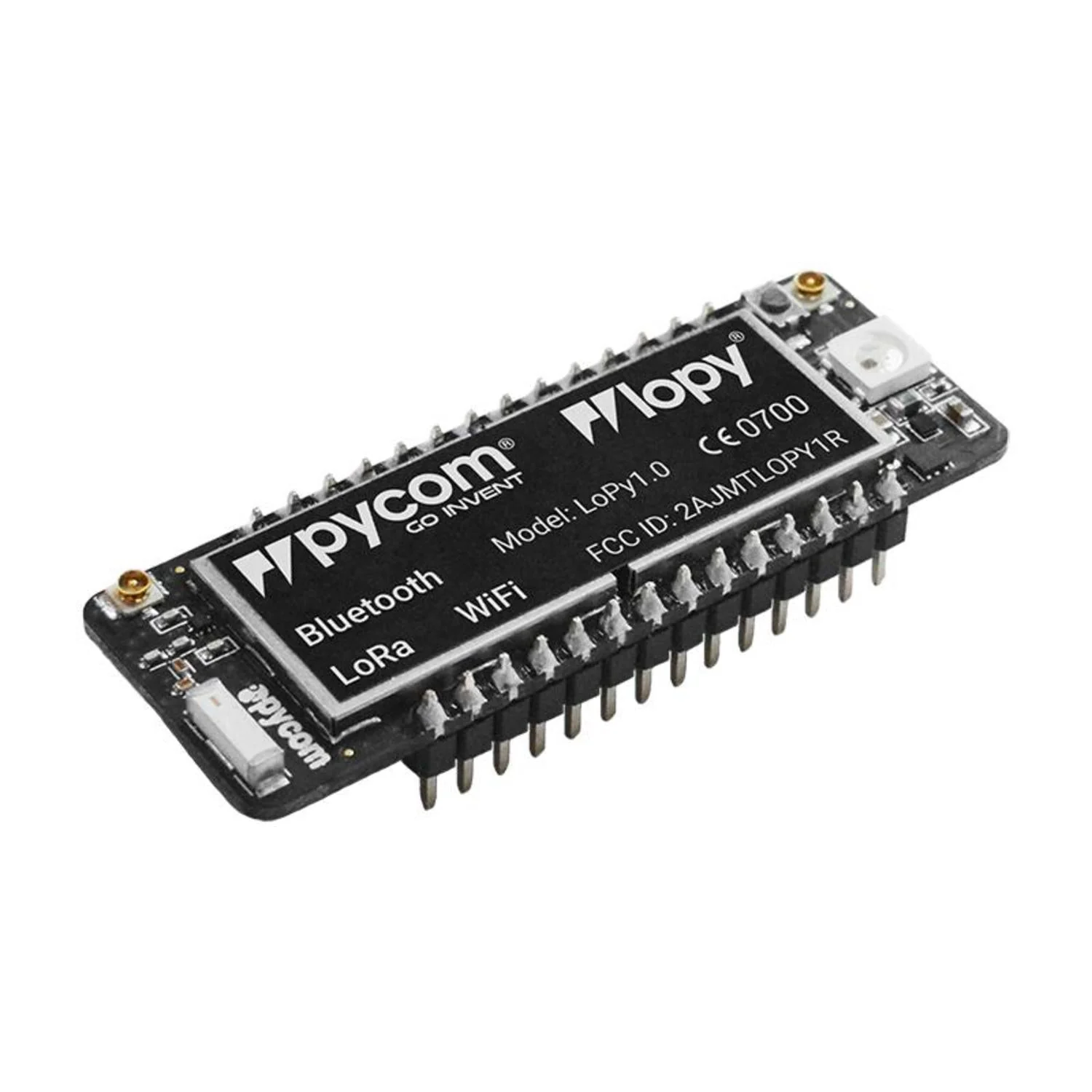

Pycom LoPy - LoRa+WiFi+Bluetooth MicroPython IoT Platform
The Pycom LoPy is a compact, triple-network MicroPython development board combining LoRa, WiFi, and Bluetooth on the Espressif ESP32 chipset. It can function as both a LoRa node (up to 40 km range) and a Nano LoRa Gateway (up to 22 km, 100 nodes), making it a versatile platform for LPWAN IoT deployments.
Programmable with MicroPython and the Pymakr IDE plugin, the LoPy supports all major LoRa frequencies (868 MHz and 915 MHz) and is LoRaWAN certified, CE and FCC approved. The dual-core ESP32 keeps the main processor free for your application while the network processor handles WiFi and IPv6.
Key Features
- Triple Network – LoRa, WiFi (802.11b/g/n), and Bluetooth (LE + Classic) on one board
- LoRa Node & Gateway – Up to 40 km node range, 22 km gateway range with up to 100 nodes
- LoRaWAN Certified – Class A and C device support with Semtech SX1272 transceiver
- ESP32 Dual Processor – Dedicated network processor plus ULP co-processor (25 µA deep sleep)
- MicroPython Enabled – Fast deployment with Python multi-threading
- Ultra-Low Power – LoRa standby 1 µA, WiFi standby 5 µA
- Rich I/O – 2× UART, 2× SPI, I²C, I²S, micro-SD, 8× 12-bit ADCs, 4× 16-bit timers with PWM, up to 24 GPIOs
- Breadboard Compatible – Fits standard breadboards with headers soldered
Specifications
- Processor – Espressif ESP32 dual-core with hardware floating point
- LoRa – Semtech SX1272, 868 MHz (+14 dBm) / 915 MHz (+20 dBm)
- WiFi – 802.11b/g/n, 16 Mbps, 1 km range
- Bluetooth – Low Energy and Classic
- RAM – 512 KB
- Flash – 4 MB external
- RTC – 32 KHz
- Encryption – SHA, MD5, DES, AES, SSL/TLS, WPA Enterprise
- Input Voltage – 3.3 V to 5.5 V
- 3V3 Output – Up to 400 mA
- Power (WiFi) – 12 mA active, 5 µA standby
- Power (LoRa) – 15 mA active, 1 µA standby
- Dimensions – 55 × 20 × 3.5 mm (without headers)
- Weight – 7 g (31 g packaged)
Certifications
- LoRaWAN Certified
- FCC – 2AJMTLOPY2R
- CE 0700
Ideal For
- LPWAN and LoRaWAN IoT deployments
- Long-range sensor networks in agriculture, utilities, and smart cities
- LoRa Nano Gateway setups
- Battery-powered remote monitoring with ultra-low-power sleep
