Raspberry Pi Touch Display 2
Raspberry Pi Touch Display 2 is a 7′′ touchscreen display for Raspberry Pi with a 720x1280resolution, ideal for interactive projects such as entertainment systems, home automation and information dashboards - or simply used as a compact monitor for your Raspberry Pi OS desktop!
Raspberry Pi OS provides touchscreen drivers with support for five-finger capacitive touchand an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.
Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers (except for the Raspberry Pi Zero and Pi 400 line). The Raspberry Pi provides power to the display - no separate power supply is required.
Please note: cases and enclosures designed for the original Raspberry Pi 7" Touchscreen display will not fitthe new Touch Display 2 (as the new display is slightly smaller with a slightly different glass position).
Raspberry Pi board not included.
Features
- Touchscreen display for Raspberry Pi
- Compatible with all Raspberry Pi boards with a DSI connector
- 7" display
- Portrait 720x1280 resolution (can be changed to landscape in software)
- Five-finger true multi-touch
- Capacitive touch
- Anti-glare surface treatment
- Powered directly by the host Raspberry Pi, no separate power supply required

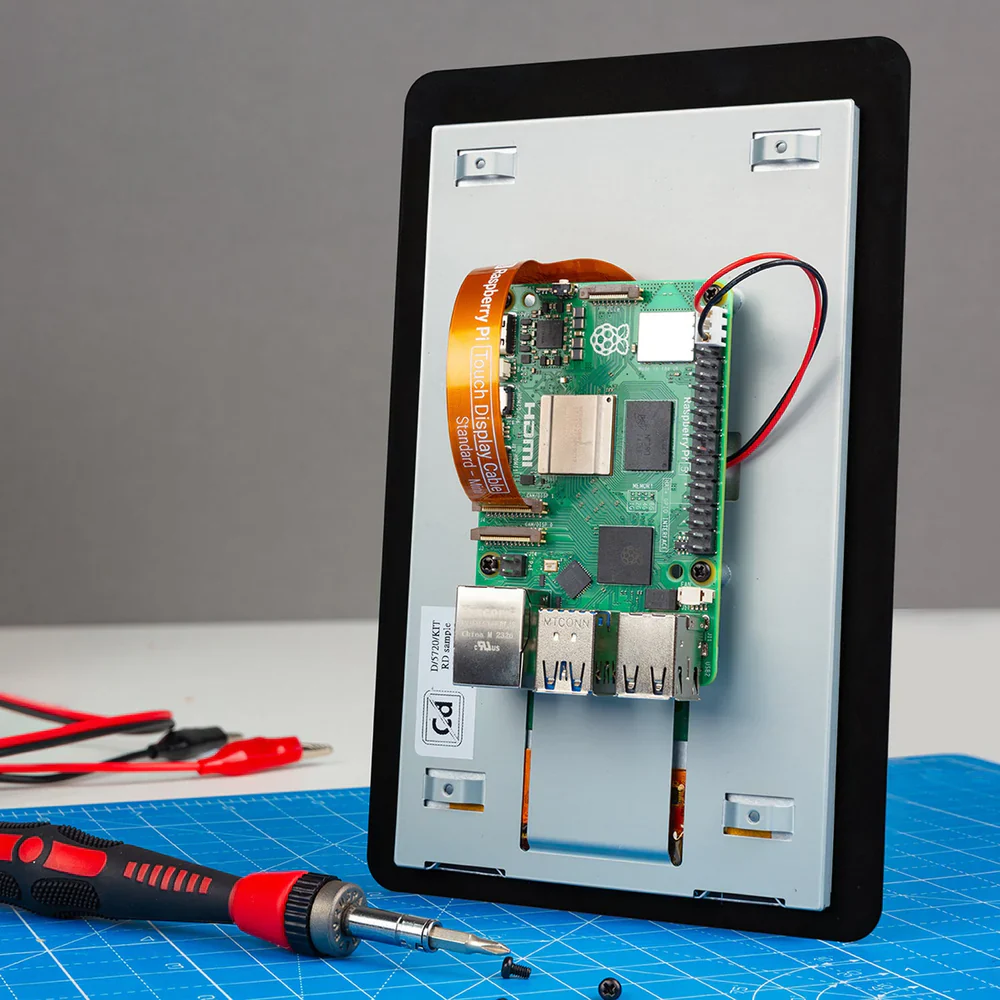

- Rear mounting points for Raspberry Pi boards (fixings included)
- Not compatible with enclosures designed for the original/older Raspberry Pi touch display
Specifications
- Size: 189.32mm x 120.24mm
- Display size (diagonal): 7"
- Display format 720 (RGB) x 1280 pixels
- Active area: 88mm x 155mm
- LCD type: TFT, normally white, transmissive
- Colour configuration: RGB-stripe
- Backlight type: LED B/L
- Production lifetime: The touch display will remain in production until at least January 2030
$32.59
Original: $108.63
-70%Raspberry Pi Touch Display 2—
$108.63
$32.59Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Raspberry Pi Touch Display 2 is a 7′′ touchscreen display for Raspberry Pi with a 720x1280resolution, ideal for interactive projects such as entertainment systems, home automation and information dashboards - or simply used as a compact monitor for your Raspberry Pi OS desktop!
Raspberry Pi OS provides touchscreen drivers with support for five-finger capacitive touchand an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.
Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers (except for the Raspberry Pi Zero and Pi 400 line). The Raspberry Pi provides power to the display - no separate power supply is required.
Please note: cases and enclosures designed for the original Raspberry Pi 7" Touchscreen display will not fitthe new Touch Display 2 (as the new display is slightly smaller with a slightly different glass position).
Raspberry Pi board not included.
Features
- Touchscreen display for Raspberry Pi
- Compatible with all Raspberry Pi boards with a DSI connector
- 7" display
- Portrait 720x1280 resolution (can be changed to landscape in software)
- Five-finger true multi-touch
- Capacitive touch
- Anti-glare surface treatment
- Powered directly by the host Raspberry Pi, no separate power supply required
- Rear mounting points for Raspberry Pi boards (fixings included)
- Not compatible with enclosures designed for the original/older Raspberry Pi touch display
Specifications
- Size: 189.32mm x 120.24mm
- Display size (diagonal): 7"
- Display format 720 (RGB) x 1280 pixels
- Active area: 88mm x 155mm
- LCD type: TFT, normally white, transmissive
- Colour configuration: RGB-stripe
- Backlight type: LED B/L
- Production lifetime: The touch display will remain in production until at least January 2030
