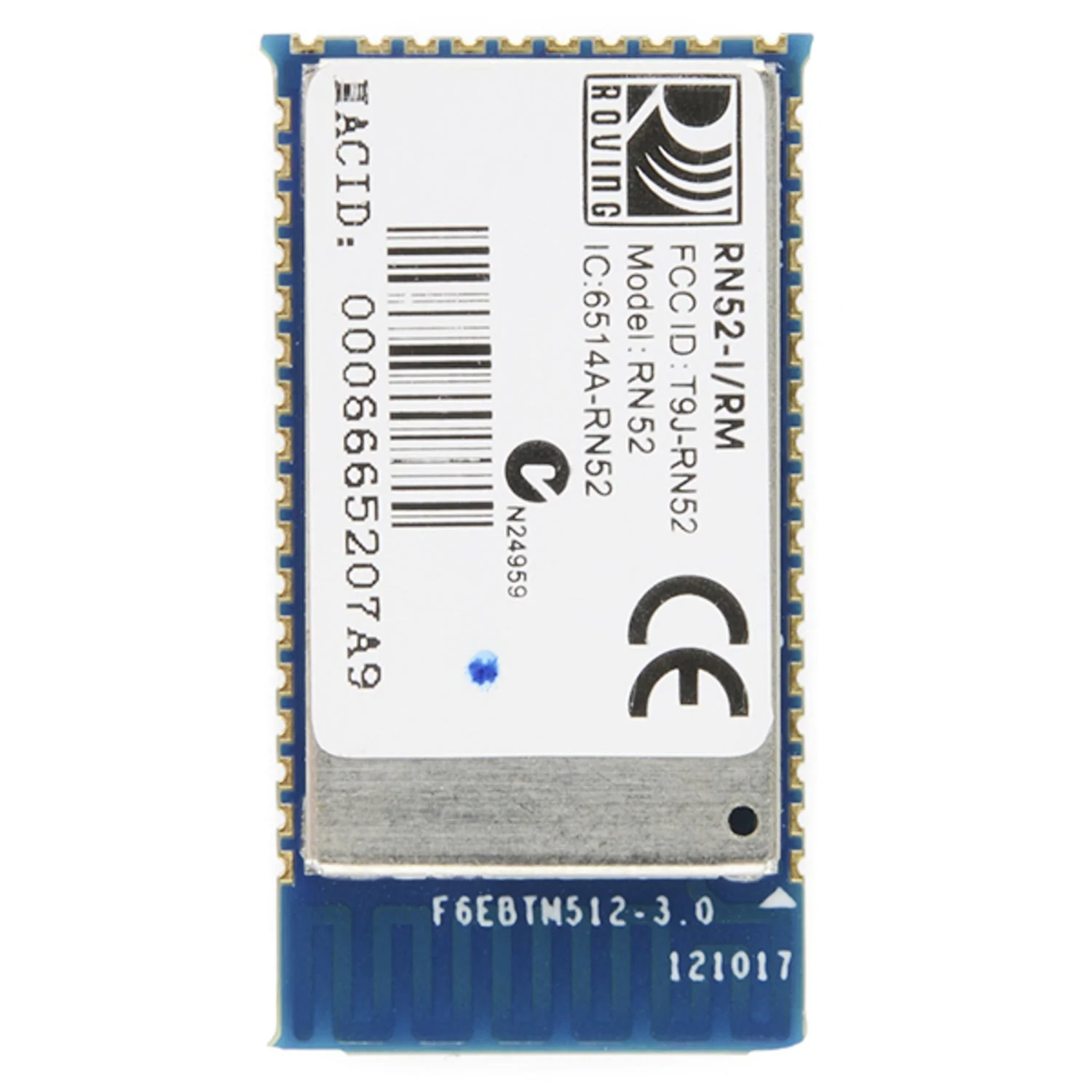

The RN-52 from Roving Networks (Microchip) is a compact Bluetooth audio module that delivers high-quality stereo audio streaming in a small, easy-to-integrate package. It combines a Class 2 Bluetooth radio with an embedded DSP, making it ideal for hands-free car audio, media centre control, and wireless 2-channel audio streaming.

The module is controlled via simple ASCII commands over UART and supports multiple Bluetooth profiles including A2DP for audio streaming, AVRCP for playback control, HFP/HSP for hands-free calling, and SPP for serial data.

Key Features

• Bluetooth v3.0 – Class 2, up to 3.0 Mbps over-air data rate
• Stereo Audio – Dual-channel differential audio input and output
• Multiple Profiles – A2DP, AVRCP, HFP/HSP, and SPP
• iAP Support – Compatible with Apple iAP profile
• UART Control – Fully configurable with ASCII command set
• Low Power Sleep Mode – Conserves power when not streaming
• FCC Certified – Fully qualified Bluetooth module

Specifications

• Bluetooth Version: 3.0
• Power Class: Class 2
• Operating Voltage: 3.0–3.6 V
• Max Data Rate: 3.0 Mbps (over-air)
• Profiles: A2DP, AVRCP, HFP/HSP, SPP
• Interfaces: UART, USB, GPIO, microphone input, speaker output

Ideal For

• Wireless stereo audio streaming projects
• Hands-free Bluetooth car audio
• Media centre remote control
• Custom Bluetooth speaker builds

Package Contents

• 1× RN-52 Bluetooth Audio Module

Resources

• Datasheet (PDF)
• Command Reference Guide (PDF)
