Small 1.2 8x8 Ultra Bright White LED Matrix [KWM-30881CWB]

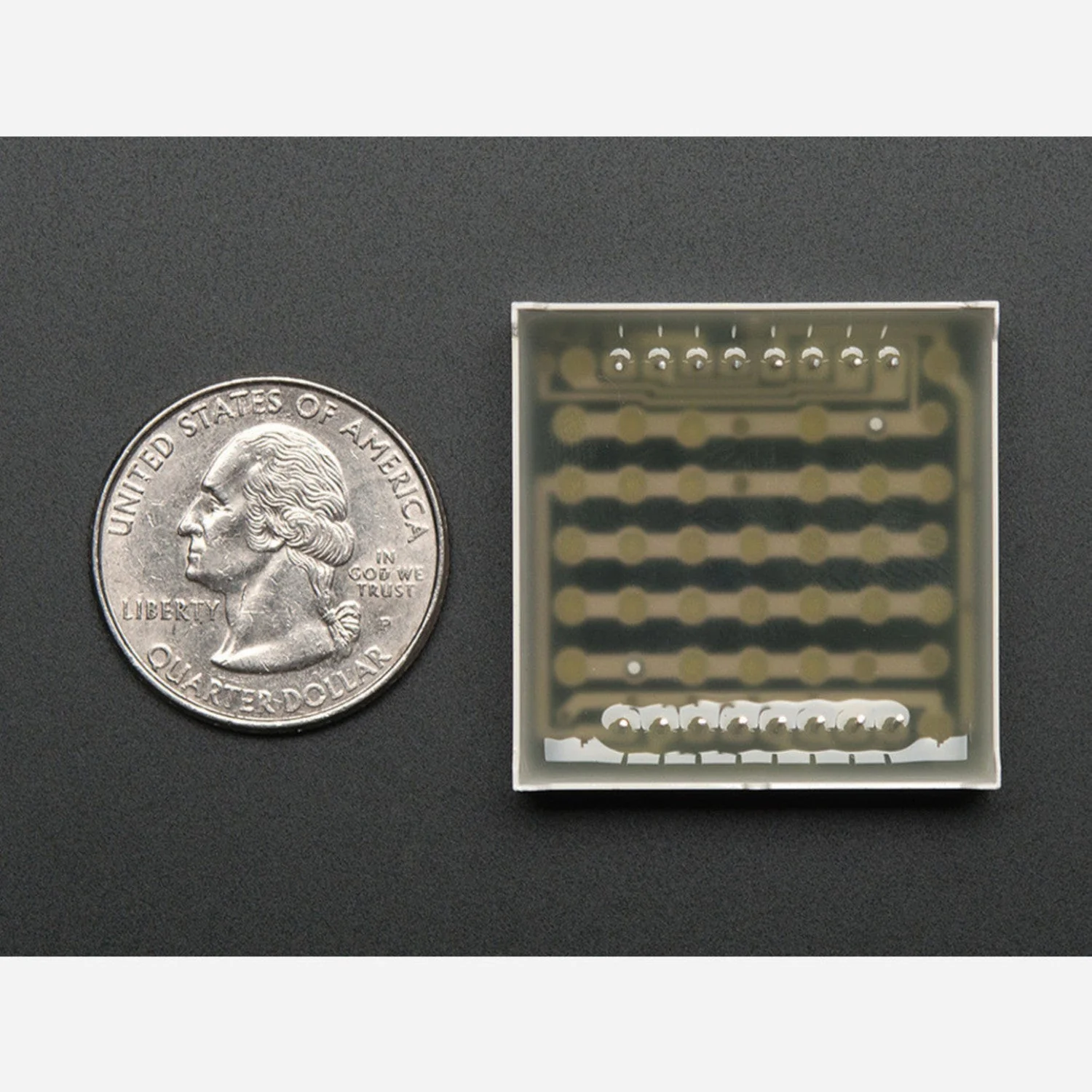

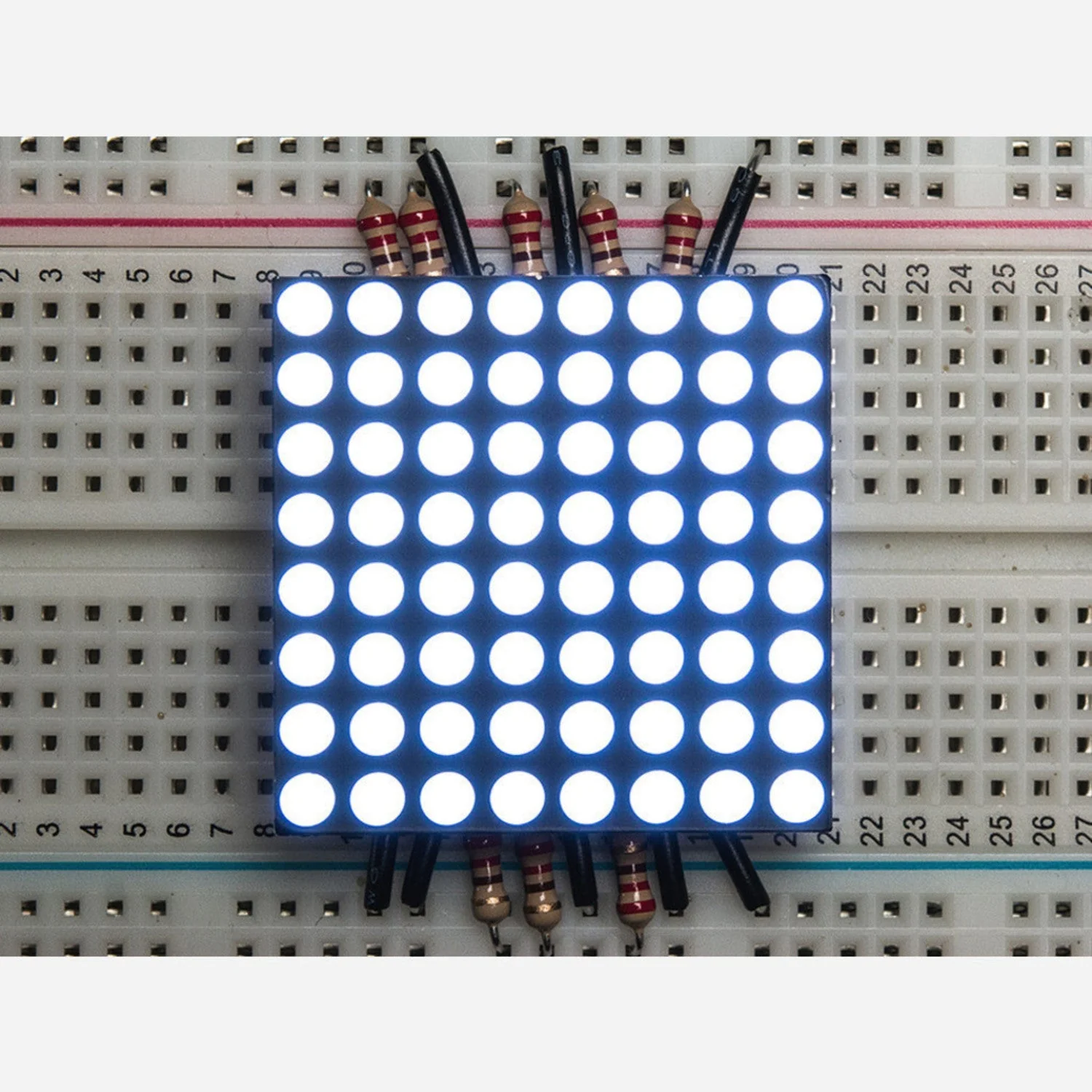

A small 8×8 ultra-bright cool white LED matrix in a 30 × 30 mm (1.2″) package. With 64 LEDs, 16 pins (8 per side), and standard 2.54 mm (0.1″) pin spacing, it plugs directly into a breadboard with one row free on each side for wiring.
Specifications
- Part Number – KWM-30881CWB
- Matrix Size – 8×8 (64 LEDs)
- Colour – Cool white (ultra bright)
- Package Size – 30 × 30 mm (1.2″ square)
- Pins – 16 (8 per side), 2.54 mm spacing
- Multiplexing – Requires 1:8 multiplex control
Driving Options
- MAX7219 – Single chip handles all multiplexing automatically
- Shift Registers – 74HC595 (anodes) + TPIC6B595 (cathodes) for manual control
Resources
$14.63
Small 1.2 8x8 Ultra Bright White LED Matrix [KWM-30881CWB]—
$14.63
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A small 8×8 ultra-bright cool white LED matrix in a 30 × 30 mm (1.2″) package. With 64 LEDs, 16 pins (8 per side), and standard 2.54 mm (0.1″) pin spacing, it plugs directly into a breadboard with one row free on each side for wiring.
Specifications
- Part Number – KWM-30881CWB
- Matrix Size – 8×8 (64 LEDs)
- Colour – Cool white (ultra bright)
- Package Size – 30 × 30 mm (1.2″ square)
- Pins – 16 (8 per side), 2.54 mm spacing
- Multiplexing – Requires 1:8 multiplex control
Driving Options
- MAX7219 – Single chip handles all multiplexing automatically
- Shift Registers – 74HC595 (anodes) + TPIC6B595 (cathodes) for manual control
