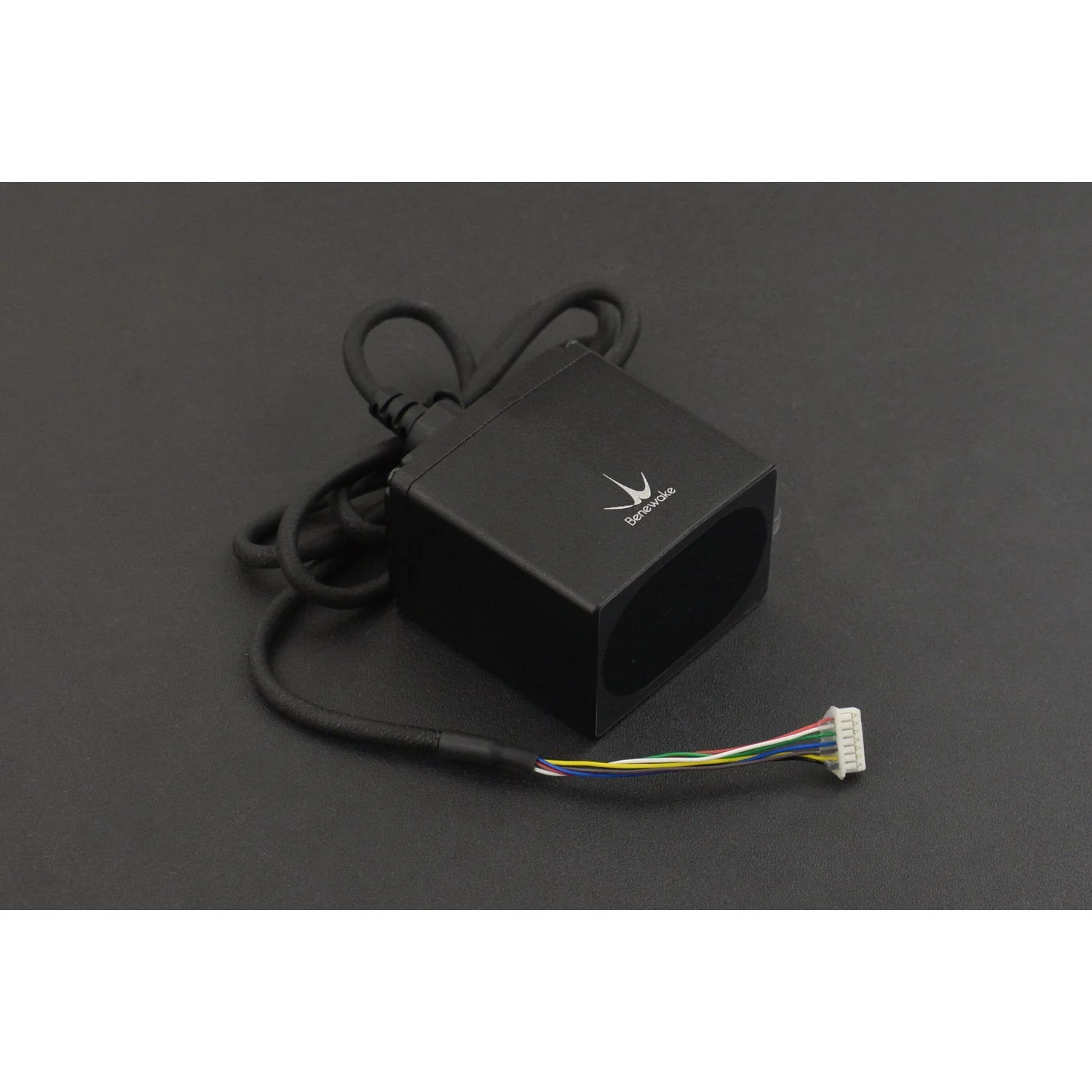

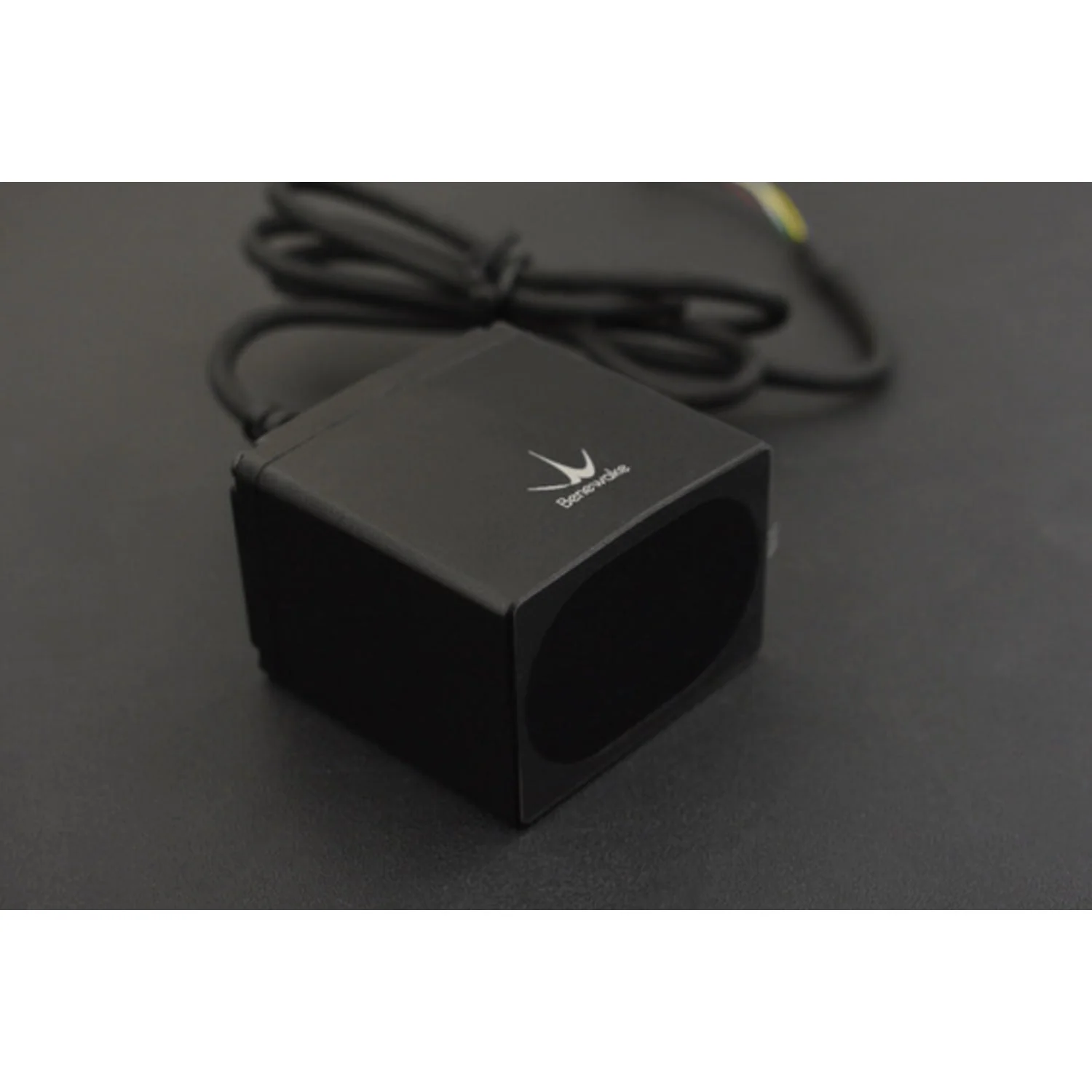

The TF03 is an industrial-grade LiDAR sensor with a detection range of up to 100 m. Using pulsed time-of-flight (ToF) measurement, it delivers high accuracy in a compact 44 × 43 × 32 mm package weighing just 77 g. Its IP67-rated aluminium alloy enclosure makes it suitable for demanding outdoor and industrial environments.

The sensor features a 0.1 m blind zone, ±10 cm accuracy (within 10 m), and immunity to ambient light up to 100 klux. It supports UART, CAN, and IO interfaces, with configurable parameters including frame rate, baud rate, and trigger mode. Compatible with Arduino and Raspberry Pi.

Key Features

• 100 m Range – Up to 100 m at 90% reflectivity, 40 m at 10% reflectivity
• High Accuracy – ±10 cm (under 10 m), 1% (over 10 m) with 1 cm resolution
• Adjustable Frame Rate – 1 Hz to 1000 Hz (default 100 Hz)
• 100 klux Ambient Light Immunity – Reliable outdoor performance
• IP67 Rated – Dust-tight and waterproof aluminium alloy enclosure
• Multiple Interfaces – UART, CAN, and IO with 3.3 V LVTTL levels
• Eye-Safe Laser – Class 1 (EN 60825), 905 nm wavelength
• Firmware Upgradeable – Built-in bootloader for local firmware updates

Specifications

• Range – 0.1–100 m (90% reflectivity), 0.1–40 m (10% reflectivity)
• Accuracy – ±10 cm (<10 m), 1% (>10 m)
• Distance Resolution – 1 cm
• Repeatability (1σ) – <3 cm
• FOV Angle – 0.5°
• Light Source – 905 nm laser diode, Class 1
• Supply Voltage – 5 V ± 0.5 V
• Average Current – ≤180 mA
• Power Consumption – ≤0.9 W
• Interfaces – UART, CAN, IO (3.3 V LVTTL)
• Dimensions – 44 × 43 × 32 mm
• Weight – 77 ± 3 g
• Cable Length – 700 mm
• Operating Temperature – −25 °C to 60 °C
• Storage Temperature – −40 °C to 85 °C
• Enclosure – IP67, aluminium alloy with infrared band-pass glass

Ideal For

• Drone terrain following and altitude holding
• Vehicle collision avoidance systems
• Intelligent transportation monitoring
• Industrial safety and distance warning systems

Resources

• DFRobot Wiki – TF03 LiDAR
