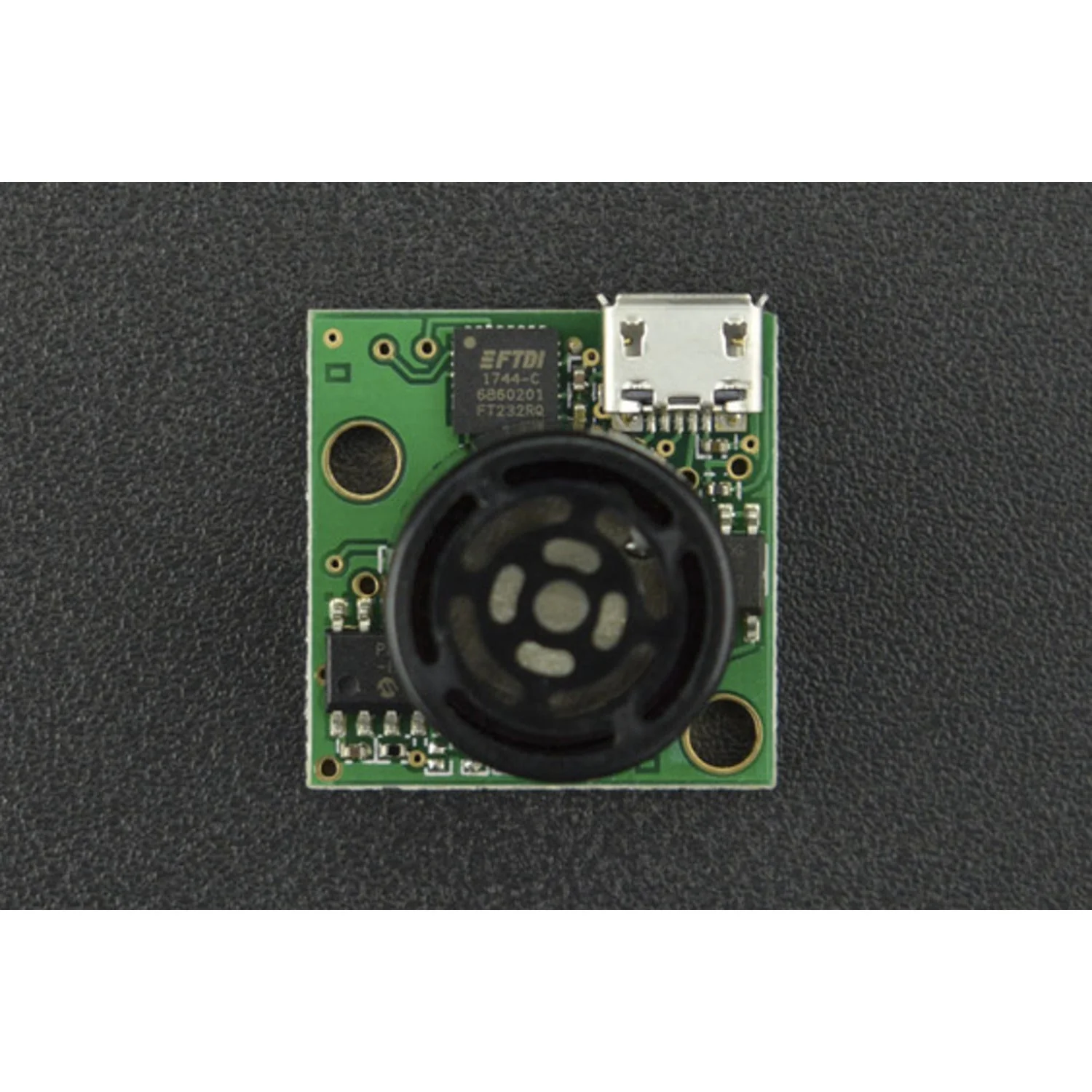

The MB1414 USB-ProxSonar-EZ1 is an ultrasonic proximity and range sensor with a USB interface. It provides both proximity detection (target enter/exit a calibrated zone) and distance measurement with 1-inch resolution, making it ideal for people sensing and obstacle detection applications.

With a detection zone of approximately 5 feet and support for 8+ simultaneous sensors, the MB1414 is designed for multi-sensor installations. It reports serial data over USB, with automatic target acquire and release timing.

Key Features

• USB Interface – Serial data output over USB for easy integration
• Proximity + Range – Reports both target presence and distance to nearest object
• 1-Inch Resolution – Accurate distance measurement up to 318 cm (125 in)
• Multi-Sensor Support – 8+ simultaneous sensors with automatic operation
• Minimal Dead Zone – Objects closer than 15 cm (6 in) report as 15 cm

Specifications

• Interface – USB
• Sensor Frequency – 42 kHz ultrasonic
• Maximum Range – 318 cm (125 in)
• Detection Zone – 152 cm (60 in)
• Resolution – 1 inch (2.54 cm)
• Target Acquire Time – ~2.5 seconds
• Target Release Time – ~1.5 seconds
• Minimum Range – 15 cm (6 in)
• Compliance – RoHS

Ideal For

• People detection and counting
• Obstacle avoidance systems
• Proximity-triggered installations
• Multi-sensor coverage zones

Package Contents

• 1× USB-ProxSonar-EZ1 (MB1414)

Resources

• Datasheet (PDF)
