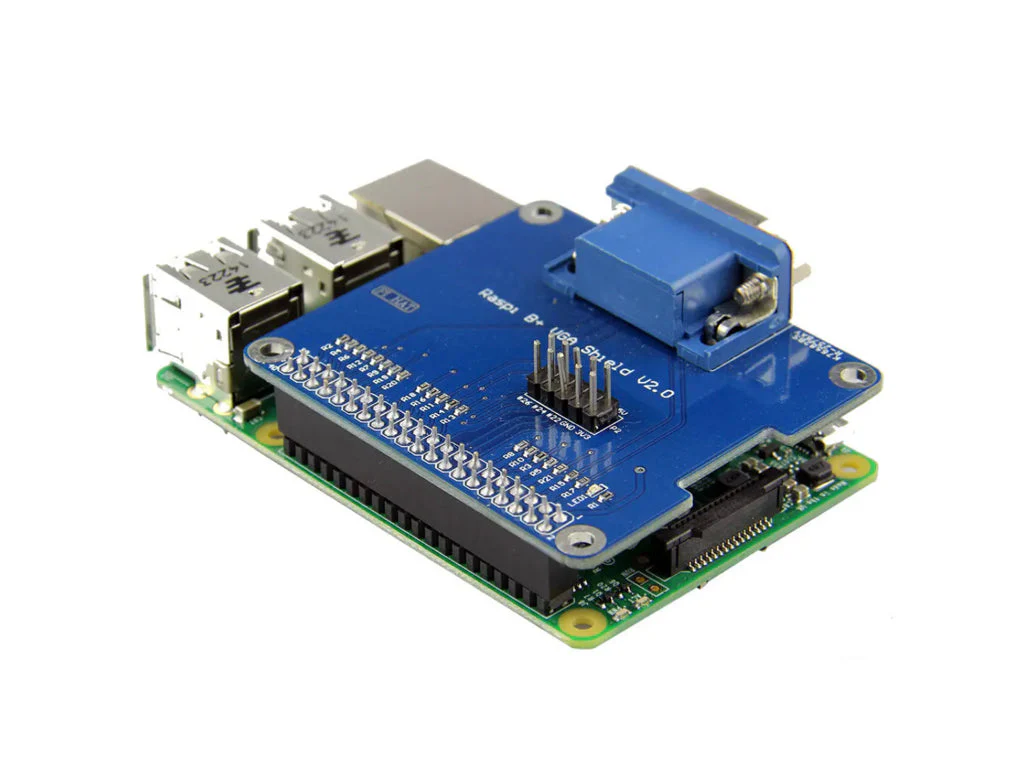

This VGA expansion board adds a VGA output to your Raspberry Pi via the GPIO header, while leaving the HDMI connector free for a second display or other use. Compatible with Raspberry Pi 3B, 2B, B+, and A+.

Setup requires a simple configuration change — just add a few lines to your Pi's config.txt file to enable the DPI display output at your preferred resolution.

Key Features

• VGA Output via GPIO – Adds analogue VGA without using the HDMI port
• HDMI Still Accessible – Use both outputs simultaneously
• Multiple Resolutions – Supports 1080p@60Hz, 1366×768@60Hz, and more
• Simple Setup – Just a few lines added to config.txt

Setup

enable_dpi_lcd=1
display_default_lcd=1

# For 1080p @ 60Hz:
dpi_group=2
dpi_mode=82

# For 1366x768 @ 60Hz:
dpi_group=2
dpi_mode=86

Ideal For

• Connecting a Raspberry Pi to older VGA monitors
• Dual-display setups (VGA + HDMI)
• Classroom and lab environments with VGA projectors

Package Contents

• 1× VGA Shield V2.0 Expansion Board
