XBee 2mW U.FL Connection - Series 2 (ZigBee Mesh)

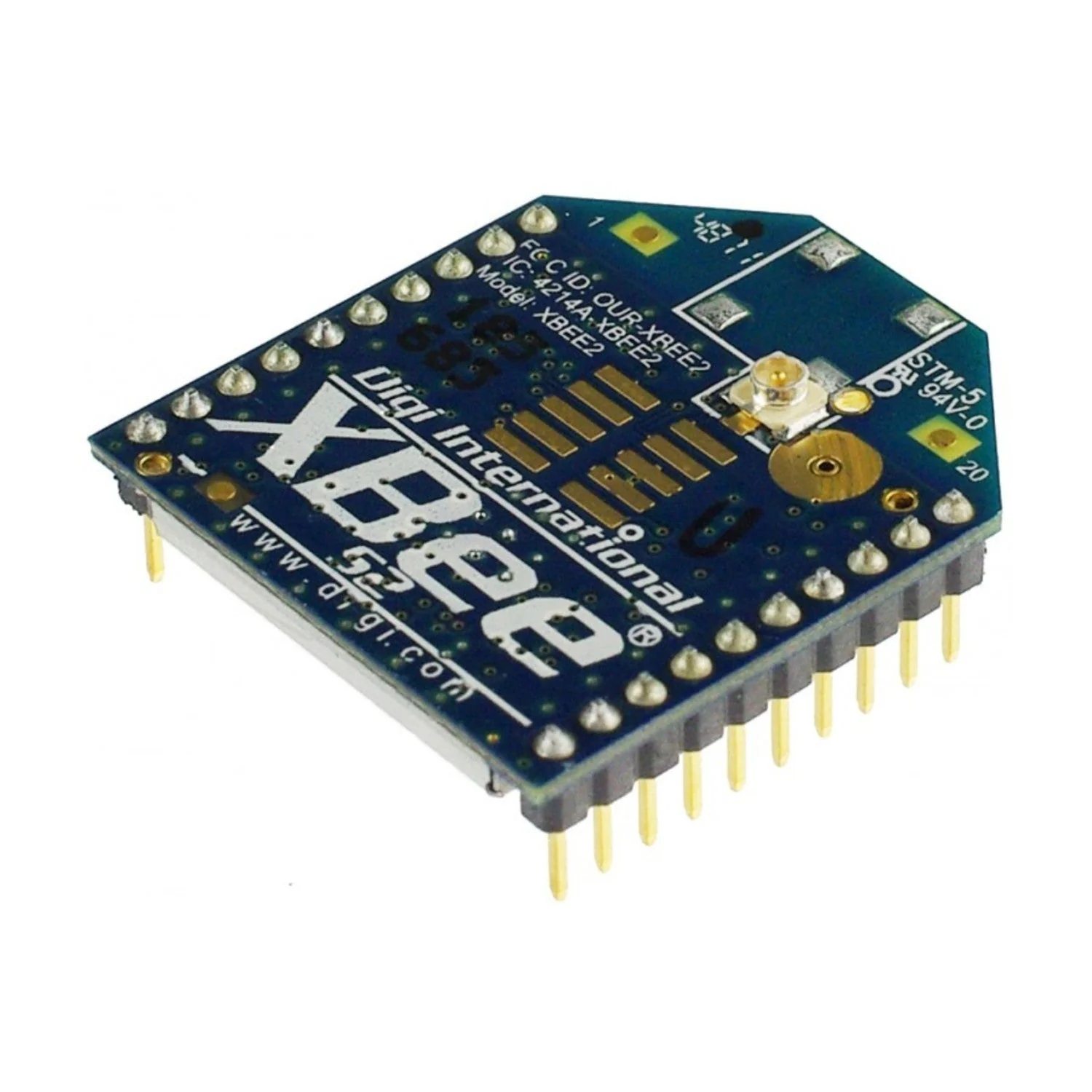

Product image 1
1 / 3

XBee 2mW U.FL Connection - Series 2 (ZigBee Mesh)

The XBee XB24-Z7UIT-004 from Digi is a Series 2 ZigBee mesh networking module with a U.FL antenna connector. It enables reliable wireless communication between microcontrollers, computers, and other serial devices using the XBee ZB ZigBee mesh firmware — supporting point-to-point, multi-point, and complex mesh network topologies.

The U.FL connector allows you to attach an external antenna, ideal for enclosures where the antenna needs to be mounted outside the case. Series 2 modules offer improved power output and the ZigBee mesh protocol over Series 1, though they require more setup and configuration via X-CTU software.

Key Features

  • ZigBee Mesh Networking – Point-to-point, multi-point, and mesh topologies
  • U.FL Antenna Connector – External antenna support for enclosures
  • 128-Bit AES Encryption – Secure wireless communication
  • 250 kbps Data Rate – High-throughput serial communication
  • AT or API Command Set – Local or over-the-air configuration
  • 6× ADC Inputs + 8× Digital I/O – Built-in sensor and control pins

Specifications

  • Model: XB24-Z7UIT-004
  • Protocol: ZigBee (802.15.4)
  • Frequency: 2.4 GHz
  • Output Power: 2 mW (+3 dBm)
  • Range: ~120 m (400 ft) line of sight
  • Data Rate: 250 kbps max
  • Operating Voltage: 3.3 V @ 40 mA
  • Antenna: U.FL connector (antenna not included)
  • Encryption: 128-bit AES
  • Certification: FCC certified
Note: Series 1 and Series 2 XBee modules share the same pin-out but cannot communicate with each other. If you need simple point-to-point communication without mesh, consider Series 1 instead.

Package Contents

  • 1× XBee 2 mW U.FL module (Series 2)

Resources

$18.47

Original: $61.57

-70%
