XBee Pro 50mW U.FL Connection - Series 2 (ZigBee Mesh)

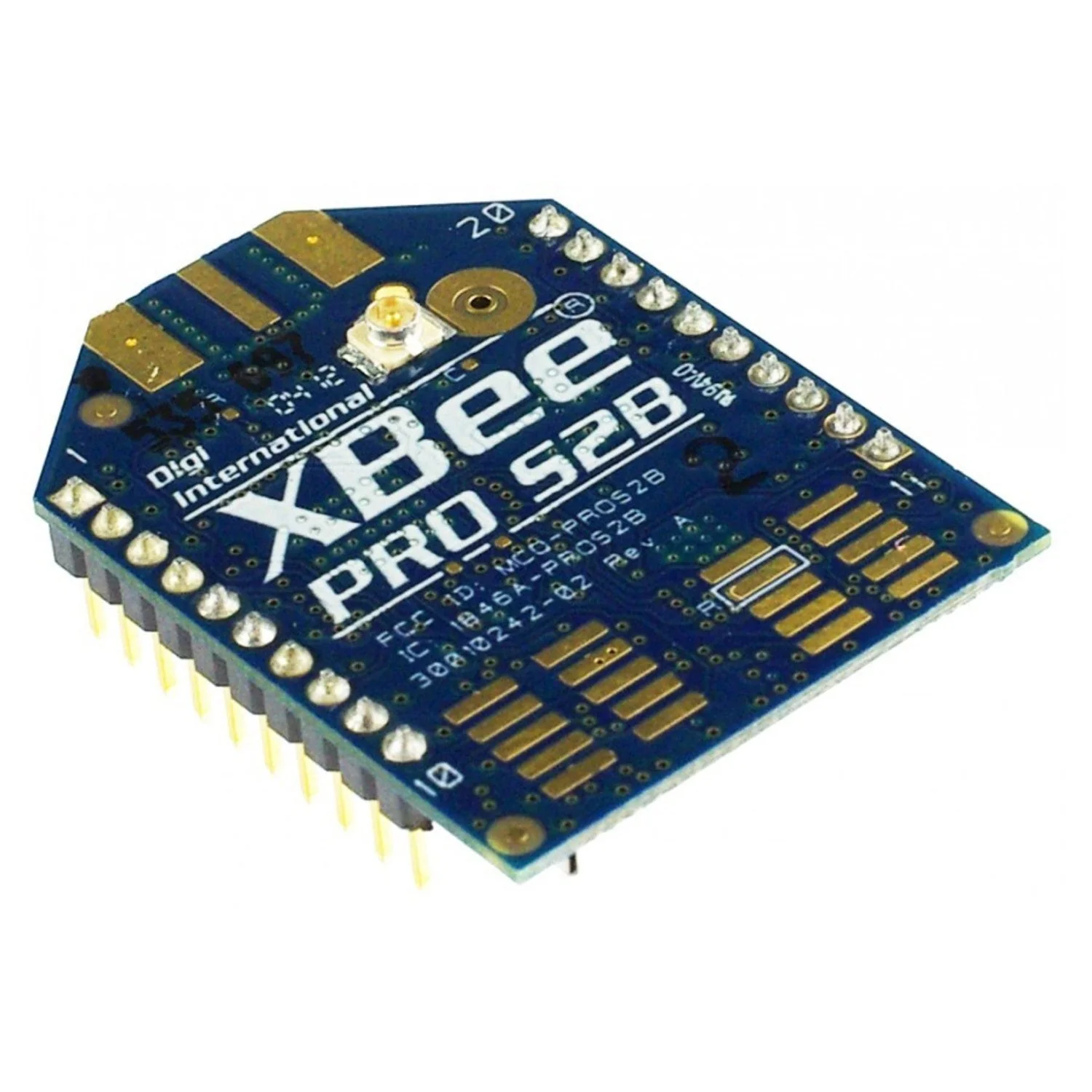

Product image 1
1 / 3

XBee Pro 50mW U.FL Connection - Series 2 (ZigBee Mesh)

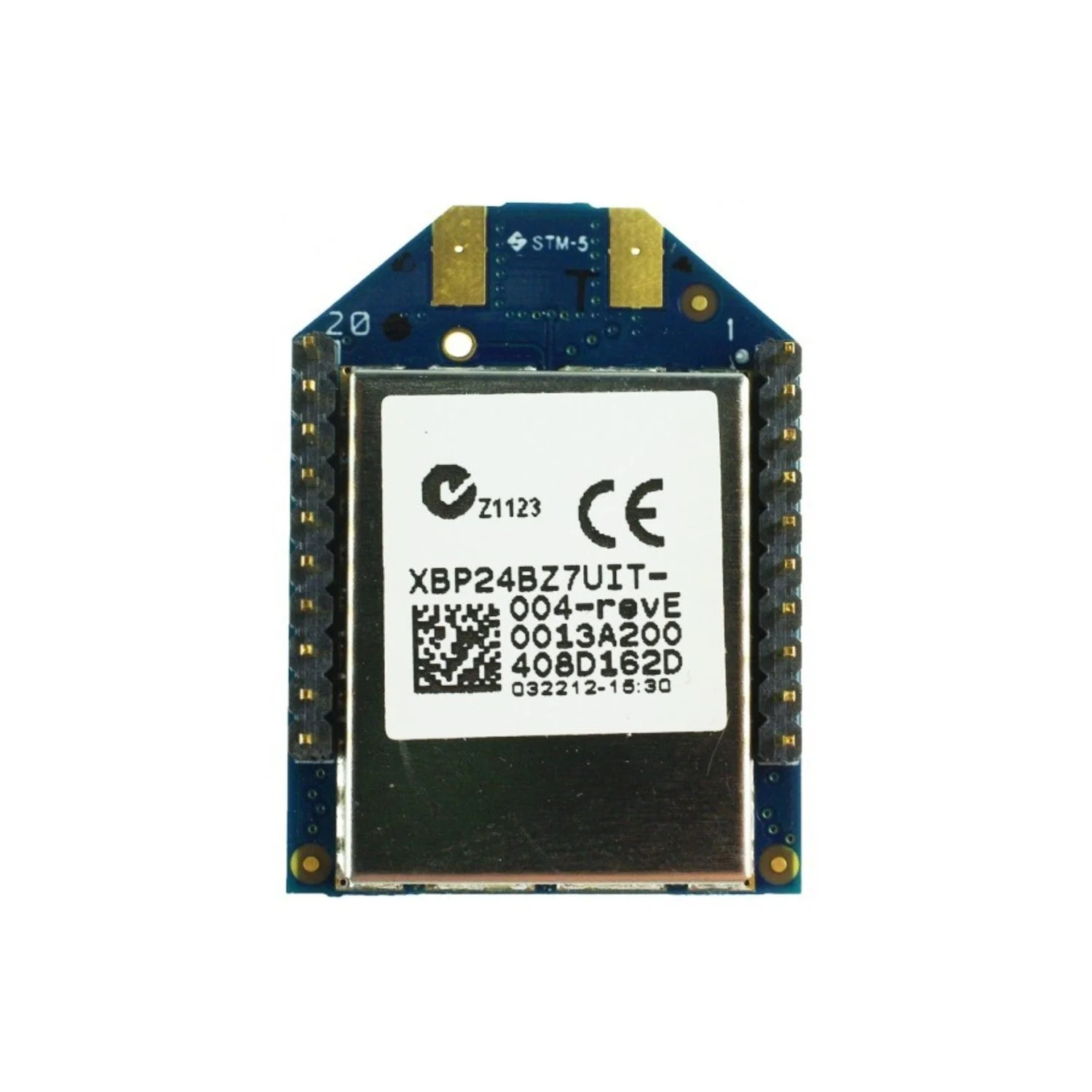

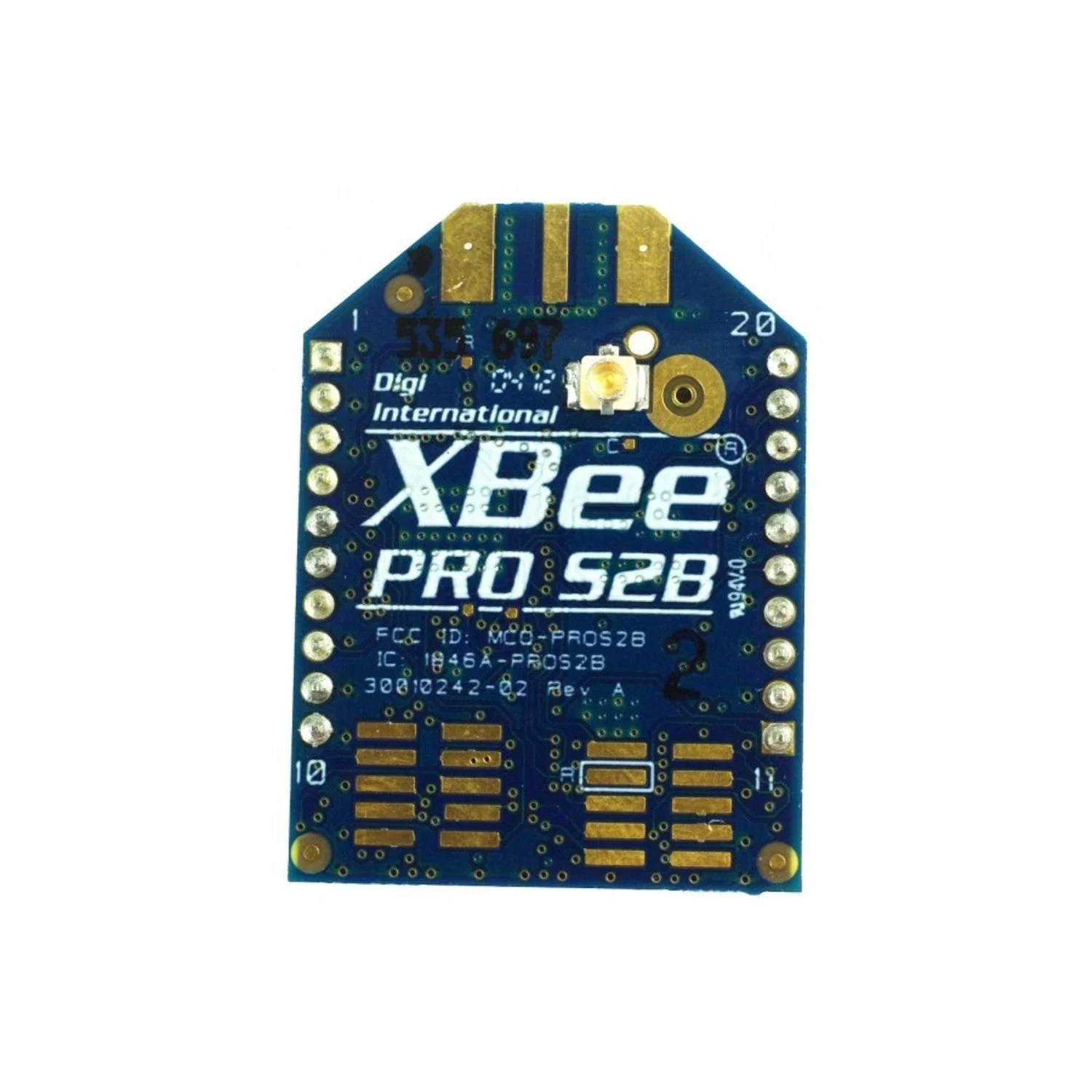

The XBee Pro XBP24-BZ7UIT-004 is a Series 2 ZigBee mesh networking module from Digi with 50 mW output power and a U.FL antenna connector. Series 2 modules support complex mesh networks based on the XBee ZB ZigBee firmware, enabling reliable serial communication between microcontrollers, computers, and other devices.

The U.FL connector lets you attach an external antenna — ideal when the module is enclosed and the antenna needs to be mounted externally. These modules are hardware-compatible with the older Series 2.5 and will interoperate after a firmware update via X-CTU.

Key Features

  • 50 mW Output (+17 dBm) – Extended range up to 1.6 km (1 mile) line of sight
  • ZigBee Mesh Networking – Point-to-point and multi-point mesh topologies
  • U.FL Antenna Connector – Attach your own external antenna
  • 250 kbps Data Rate – Fast serial communication
  • 128-Bit Encryption – Secure wireless links
  • 6 Analogue Inputs – 10-bit ADC on 6 pins
  • 8 Digital I/O Pins – Flexible GPIO for sensor and control applications
  • AT or API Command Set – Configure locally or over the air

Specifications

  • Supply Voltage: 3.3 V
  • Supply Current: 295 mA
  • TX Power: 50 mW (+17 dBm)
  • Range: ~1.6 km line of sight
  • Data Rate: 250 kbps max
  • Certification: FCC certified
Note: Series 1 and Series 2 XBee modules share the same pin-out but cannot communicate with each other. If using outside Australia, check your local regulations regarding radio communication.

Resources
