An ultra-compact 2.5g micro servo with 360-degree continuous rotation, ideal for micro robots and space-constrained projects. The coreless motor and POM gears deliver smooth, reliable rotation in a tiny form factor measuring just 19.6 × 8.0 × 16.3mm.

Controlled via standard PWM servo signals, it connects directly to an Arduino output pin without a motor driver. Write 0° for full-speed clockwise, 90° to stop, and 180° for full-speed counterclockwise using the Arduino Servo library.

Key Features

• 360° Continuous Rotation – Full rotational motion with speed and direction control via PWM
• Ultra-Lightweight – Only 2.9g, perfect for micro robots and lightweight builds
• Coreless Motor – Smooth operation with MOSFET driver
• Standard PWM Control – 50Hz, 900–2100µs pulse width, 1500µs midpoint
• POM Gears – Durable engineering plastic gears

Specifications

• Model – D2S51
• Voltage – 4.8–6.0V DC
• Speed (no load) – 0.09 sec/60° at 4.8V, 0.07 sec/60° at 6.0V
• Torque (stall) – 0.45 kg·cm at 4.8V, 0.60 kg·cm at 6.0V
• Working Current – <0.10A at 4.8V, <0.10A at 6.0V
• Stall Current – <0.5A at 4.8V, <0.5A at 6.0V
• Dimensions – 19.6 × 8.0 × 16.3mm
• Weight – 2.9g
• Operating Temperature – -20°C to 60°C

Ideal For

• Micro robots and miniature motorised builds
• Projects with tight space constraints
• Arduino-controlled continuous rotation applications

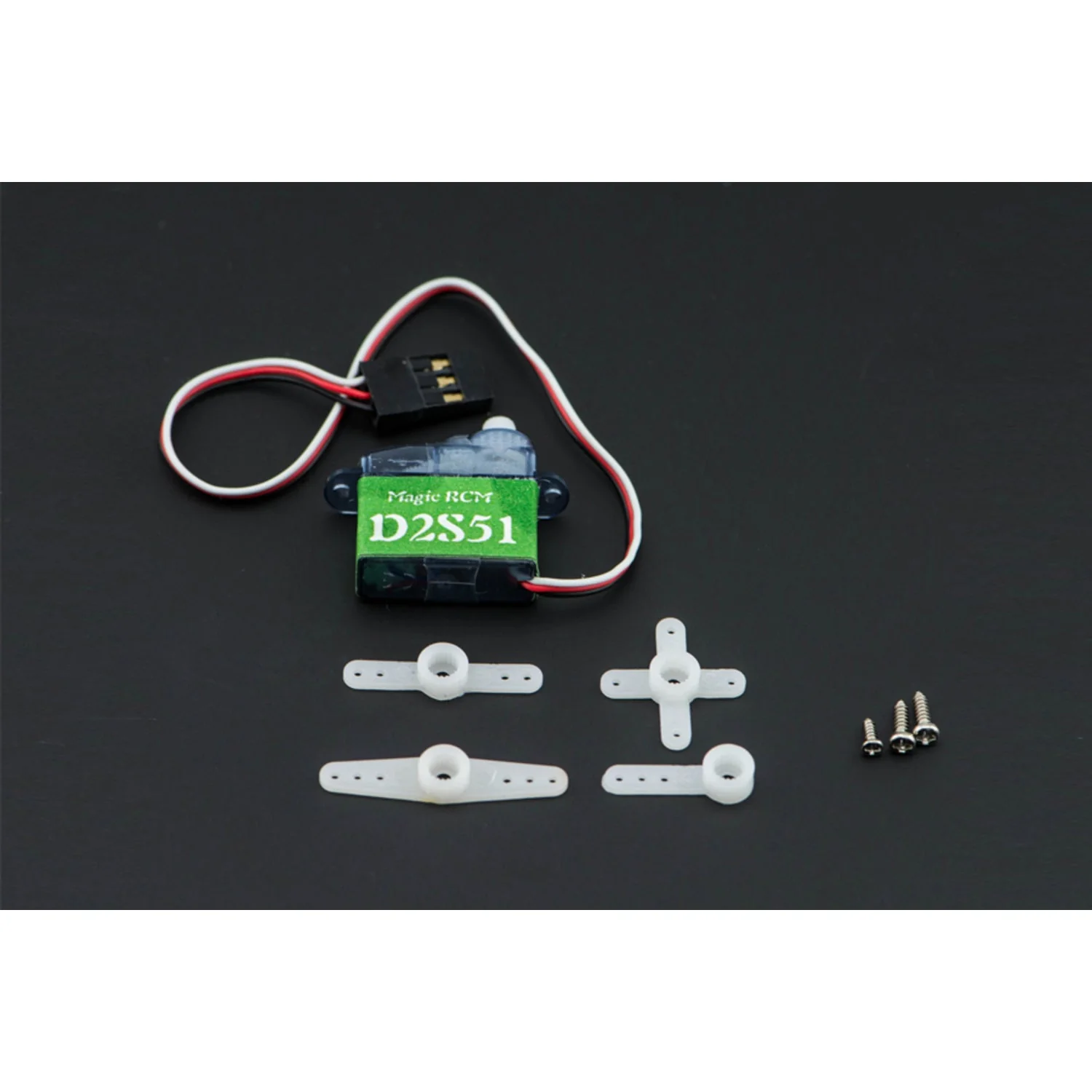

Package Contents

• 1× Micro servo (D2S51)
• 4× Servo horns (assorted shapes)
• 2× Mounting screws
• 2× Servo horn attachment screws
