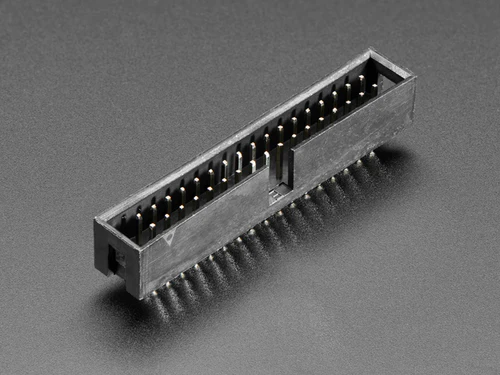

This double-row 2×17 (34-pin) IDC box header with 2.54 mm (0.1″) pitch is commonly used for floppy disk drive interfaces and other legacy 34-pin IDC ribbon cable connections. The keyed box header ensures correct cable orientation.

Key Features

• 34-Pin (2×17) – Double-row IDC box header
• 2.54 mm Pitch – Standard 0.1″ pin spacing
• Keyed Housing – Ensures correct ribbon cable orientation
• Through-Hole Mount – Solder directly to your PCB

Ideal For

• Floppy disk drive interfacing
• 34-pin IDC ribbon cable connections
• Custom PCB designs requiring keyed connectors

Package Contents

• 1× 2×17 (34-pin) IDC box header
