A flexible 64×32 RGB LED matrix with 4mm pixel pitch, built on a thin bendable PCB that can conform to curved surfaces. With a panel size of 256 × 128mm and 2048 individually addressable RGB LEDs, it's an excellent choice for creative display projects where rigid panels won't fit.

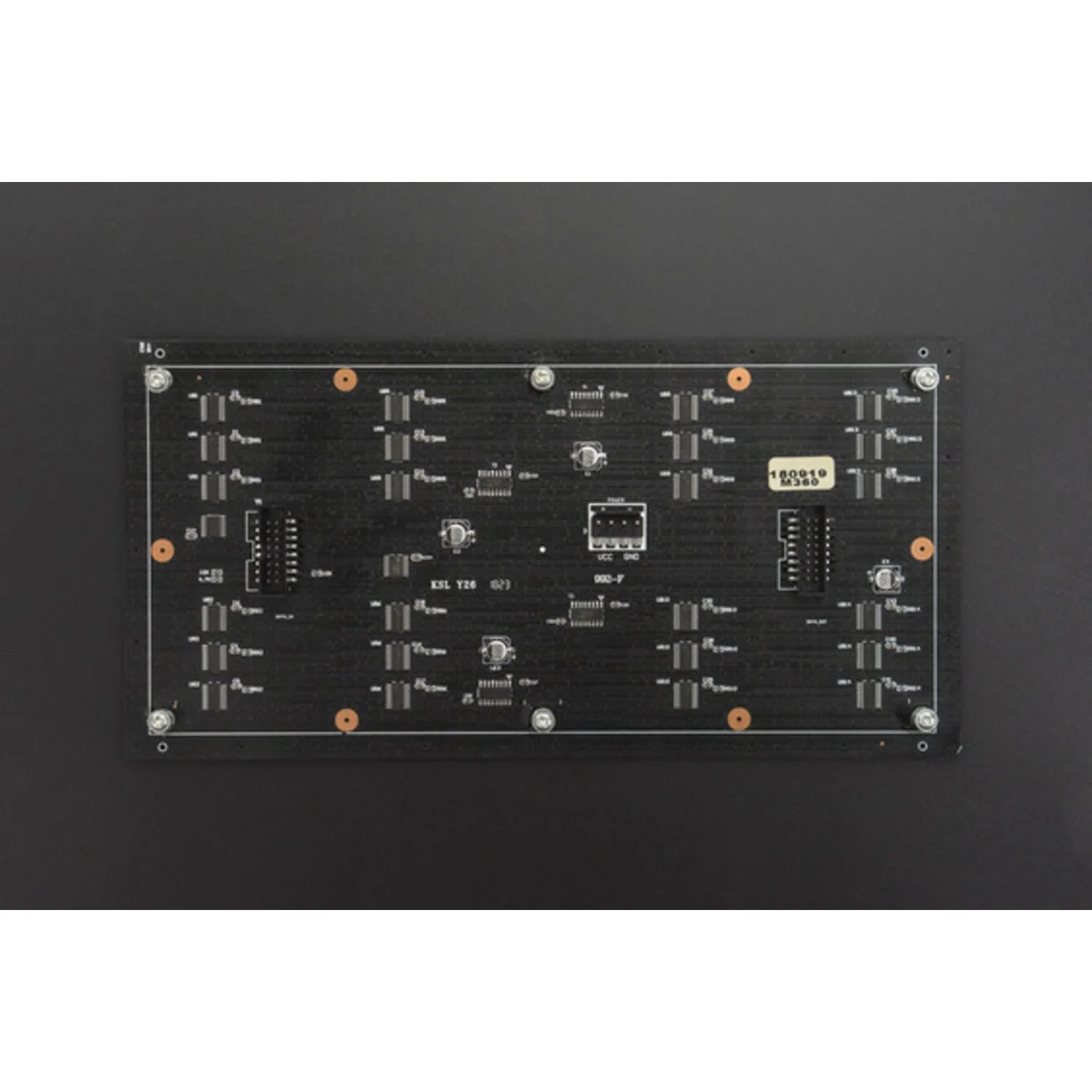

Features two IDC connectors (DATA_IN and DATA_OUT) for cascading multiple panels into larger displays. Requires a microcontroller with large RAM and high speed — Raspberry Pi, Arduino Mega 2560, or similar. Not compatible with Arduino Uno. External 5V power supply required.

Key Features

• Flexible PCB – Bendable for curved and non-flat installations
• 2048 RGB LEDs – 64×32 pixel grid at 4mm pitch
• Cascadable – DATA_IN and DATA_OUT IDC connectors for chaining panels
• Wide Viewing Angle – ≥160°
• High Refresh Rate – ≥300Hz with ≥60Hz repetition frequency

Specifications

• Resolution – 64 × 32 (2048 pixels)
• Pixel Pitch – 4mm
• Panel Dimensions – 256 × 128mm
• Operating Voltage – 5V DC
• Maximum Power – 18W
• Viewing Angle – ≥160°
• Refresh Frequency – ≥300Hz
• Optimal Viewing Distance – 4–30 metres

Also Available

• 64×32 Flexible RGB LED Matrix – 4mm Pitch (Adafruit)
• 64×32 Flexible RGB LED Matrix – 5mm Pitch
• 64×32 RGB LED Matrix – 4mm Pitch (Rigid)
• 64×32 RGB LED Matrix – 5mm Pitch (Rigid)

Ideal For

• Curved and cylindrical display builds
• Architectural and artistic LED installations
• Wearable and portable LED displays

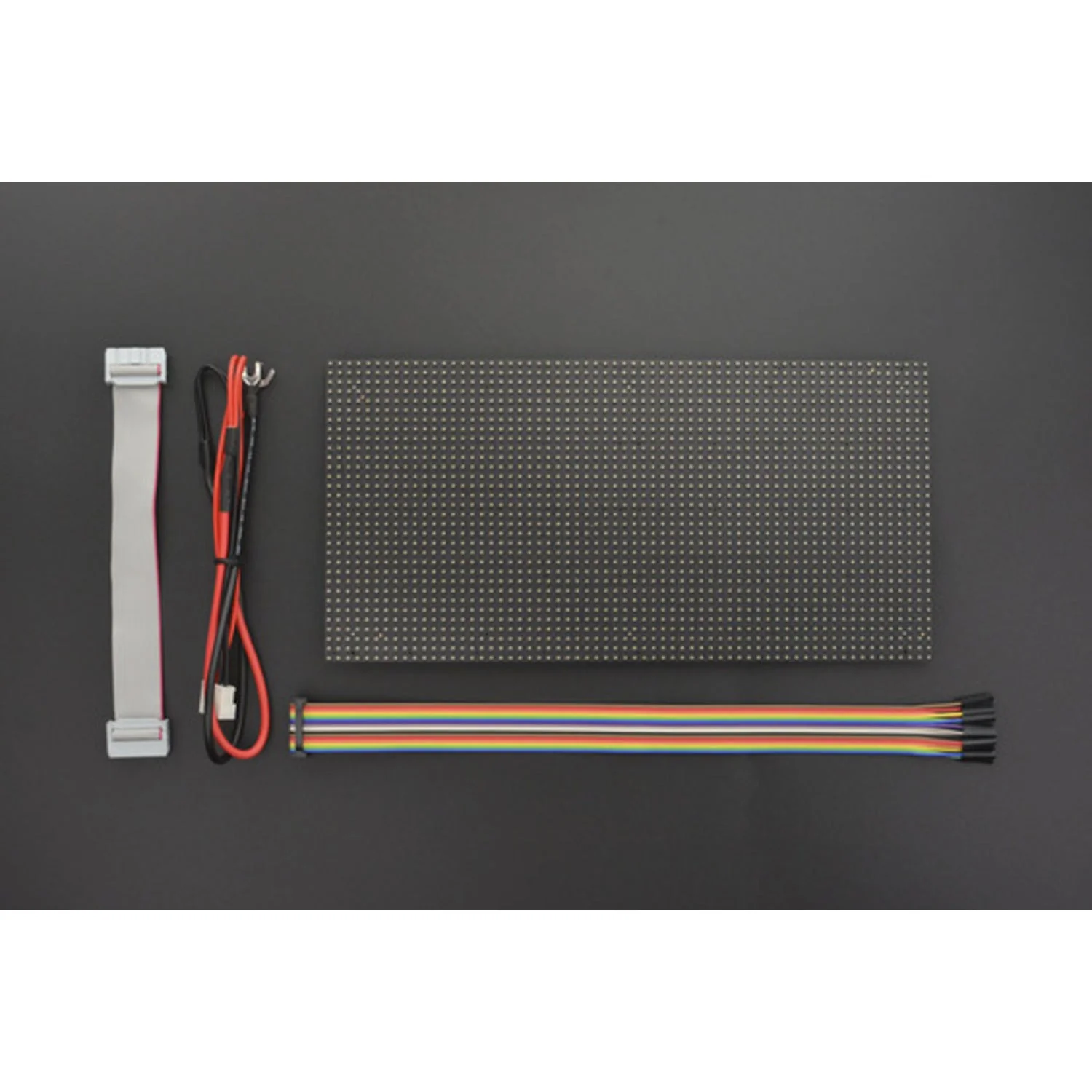

Package Contents

• 1× 64×32 Flexible RGB LED Matrix (4mm pitch)
