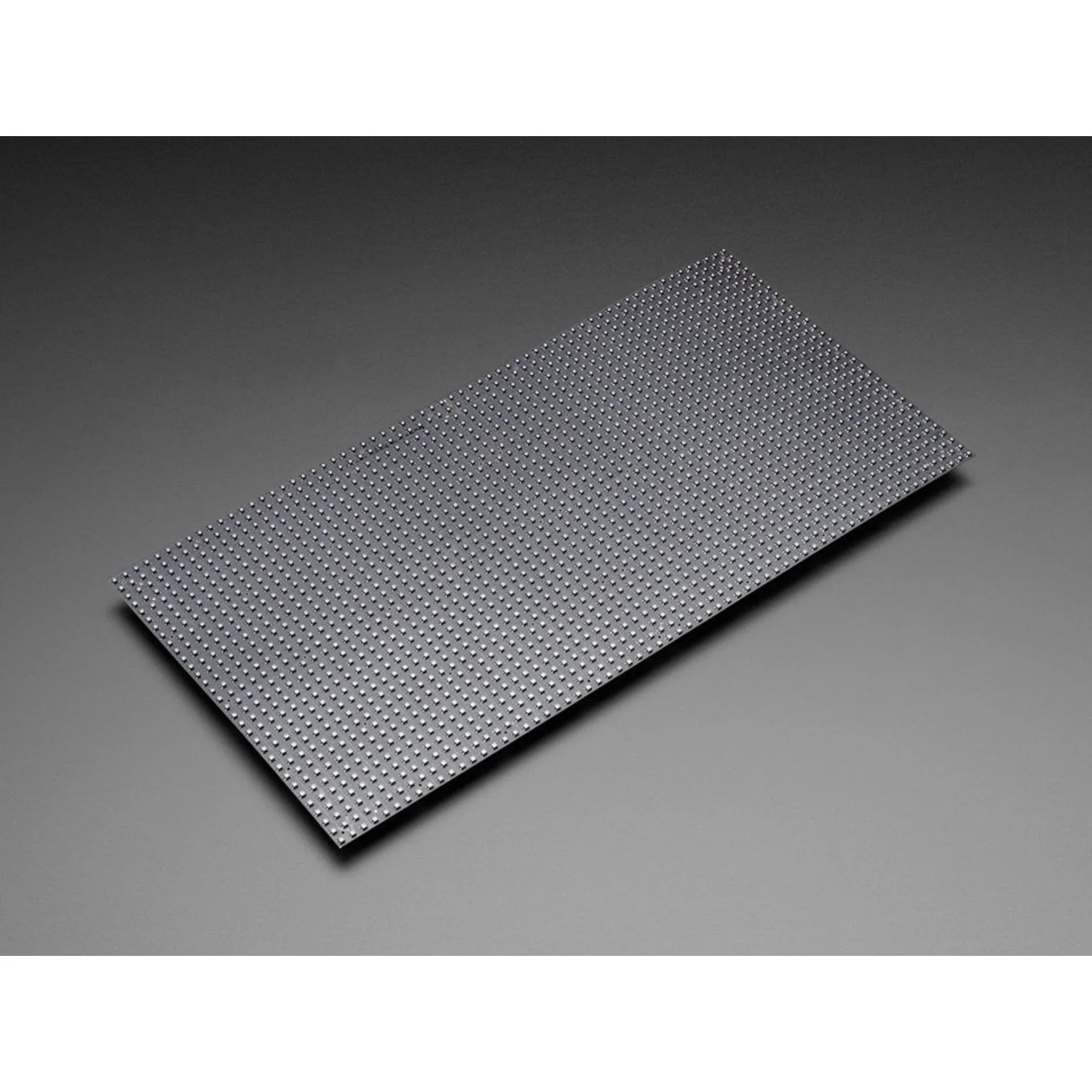

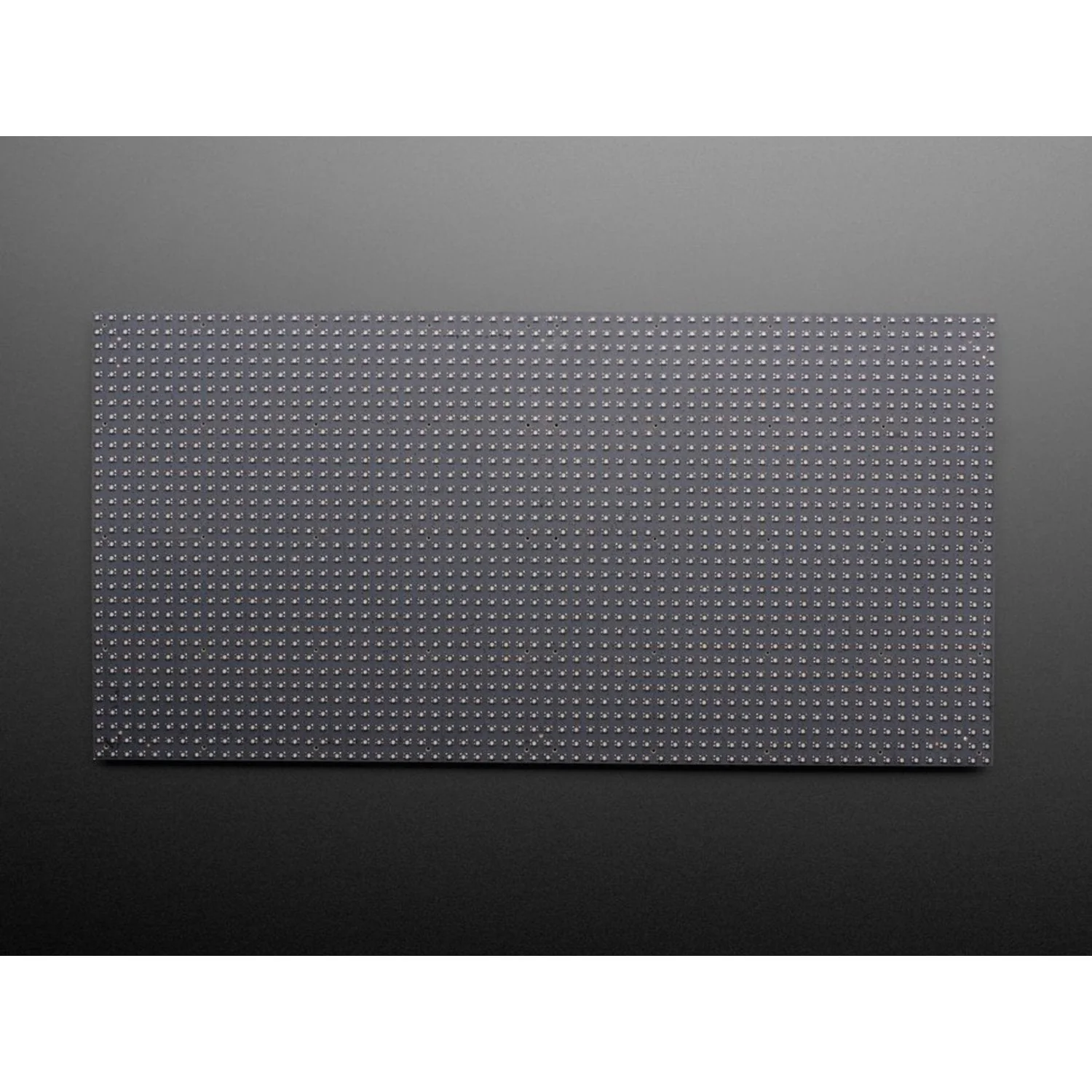

A flexible version of the popular 64×32 RGB LED matrix with 5mm pixel pitch. The thin, bendable PCB can be gently curved around surfaces for creative installations — wearables, architectural lighting, curved displays, and more. Features 2048 bright RGB LEDs in a 64×32 grid.

Driven at a 1:16 scan rate via two IDC connectors (input and output for chaining). Requires a fast microcontroller with plenty of RAM — Arduino Mega, Raspberry Pi, or FPGA recommended. Not compatible with Arduino Uno.

Key Features

• Flexible PCB – Bendable backing for curved and non-flat surfaces
• 2048 RGB LEDs – 64×32 pixel grid at 5mm pitch
• Larger Panel Size – 320 × 160mm gives more physical display area than the 4mm version

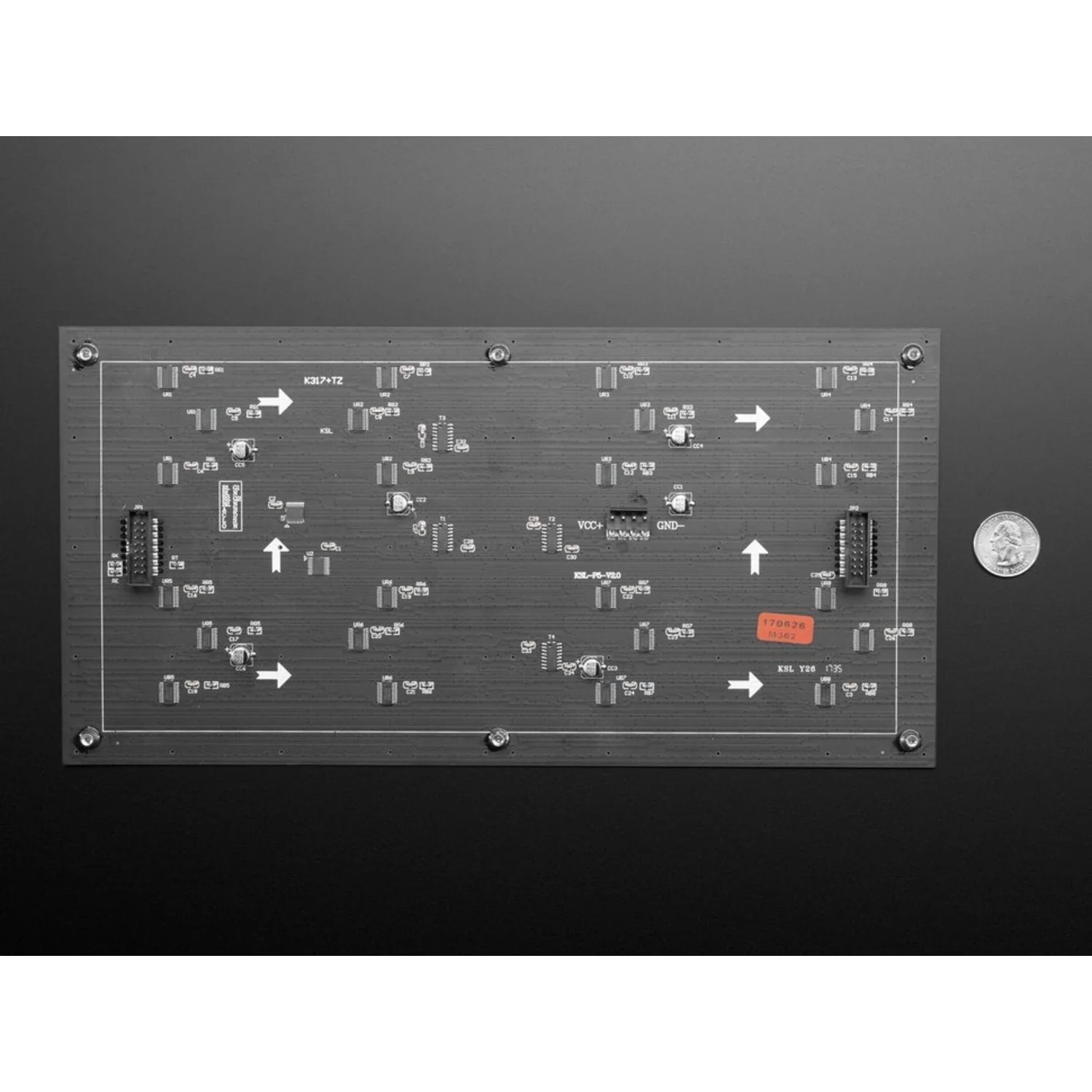

• Chainable – Input and output IDC connectors for cascading panels
• 1:16 Scan Rate – 12 onboard 16-bit latches
• Pre-White Balanced – Uniform colour when all LEDs are lit

Specifications

• Resolution – 64 × 32 (2048 pixels)
• Pixel Pitch – 5mm
• Panel Dimensions – 320 × 160mm
• Operating Voltage – 5V DC
• Current Draw – Up to 4A per panel
• Data Pins – 13 digital (6 data + 7 control)
• Scan Rate – 1:16

Also Available

• 64×32 Flexible RGB LED Matrix – 4mm Pitch
• 64×32 RGB LED Matrix – 3mm Pitch (Rigid)
• 64×32 RGB LED Matrix – 4mm Pitch (Rigid)
• 64×32 RGB LED Matrix – 5mm Pitch (Rigid)
• 64×32 RGB LED Matrix – 6mm Pitch (Rigid)
• 64×32 RGB LED Matrix – 2.5mm Pitch (Rigid)

Ideal For

• Curved and cylindrical display installations
• Wearable LED displays
• Architectural and artistic lighting
• Signage on non-flat surfaces

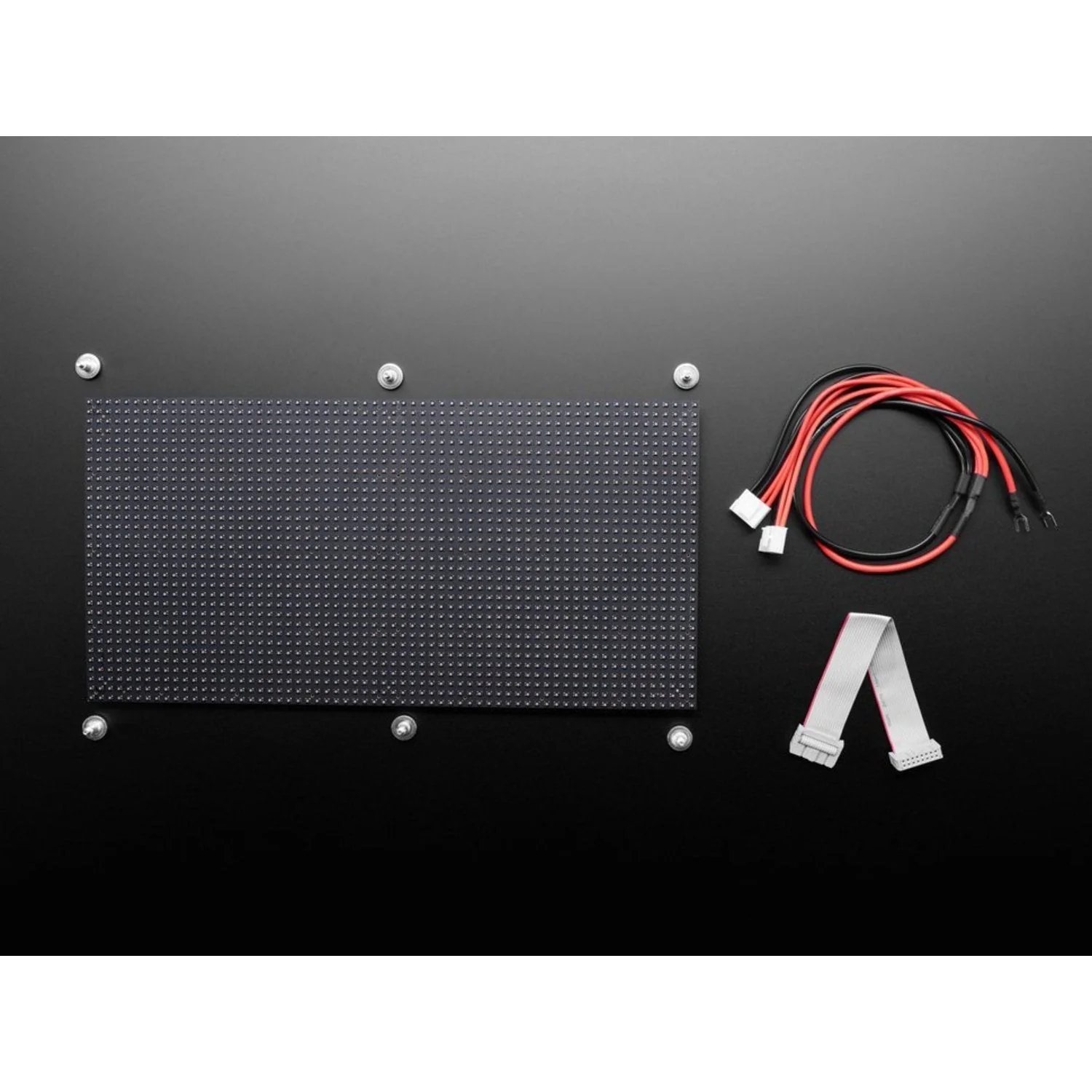

Package Contents

• 1× 64×32 Flexible RGB LED Matrix (5mm pitch)
• 1× IDC cable
• 1× Power cable
