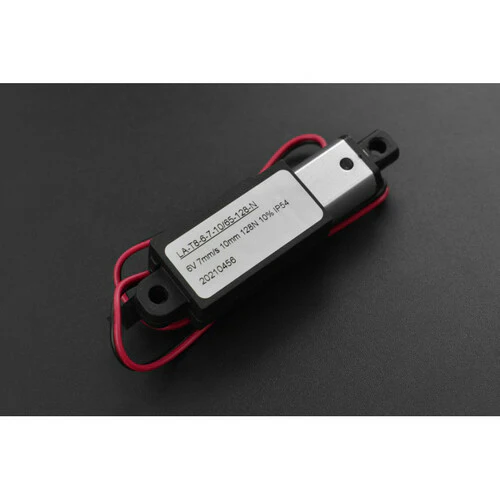

The 6V Electric Push Rod with 10mm stroke from DFRobot is a compact linear actuator delivering up to 128N of thrust. Despite its small size, it provides strong pushing force for access control, DIY lifting projects, electric telescopic poles, and other linear motion applications.

With simple two-wire connection, the push rod extends and retracts by reversing the polarity of the 6V supply. This is the shortest-stroke variant in the range, offering 10mm of ultra-short travel with IP54 water resistance.

Key Features

• 128N Thrust – Strong pushing force in a compact package
• 10mm Stroke – Ultra-short travel for precise, compact applications
• 6V Operation – Simple two-wire connection
• IP54 Rated – Splash and dust resistant
• 7 mm/s Speed – Consistent actuation speed

Specifications

• Rated Voltage: 6V
• Stroke: 10mm
• Thrust: 128N
• Speed: 7 mm/s
• Waterproof Rating: IP54
• Duty Cycle: 10%

Also Available

• 6V Electric Push Rod – 30mm Stroke
• 6V Electric Push Rod – 50mm Stroke
• 6V Electric Push Rod – 100mm Stroke

Ideal For

• Access control and locking mechanisms
• DIY lifting and telescoping projects
• Robotics and automation
• Compact linear motion applications

Package Contents

• 1× 6V Electric Push Rod (10mm stroke, 128N)
