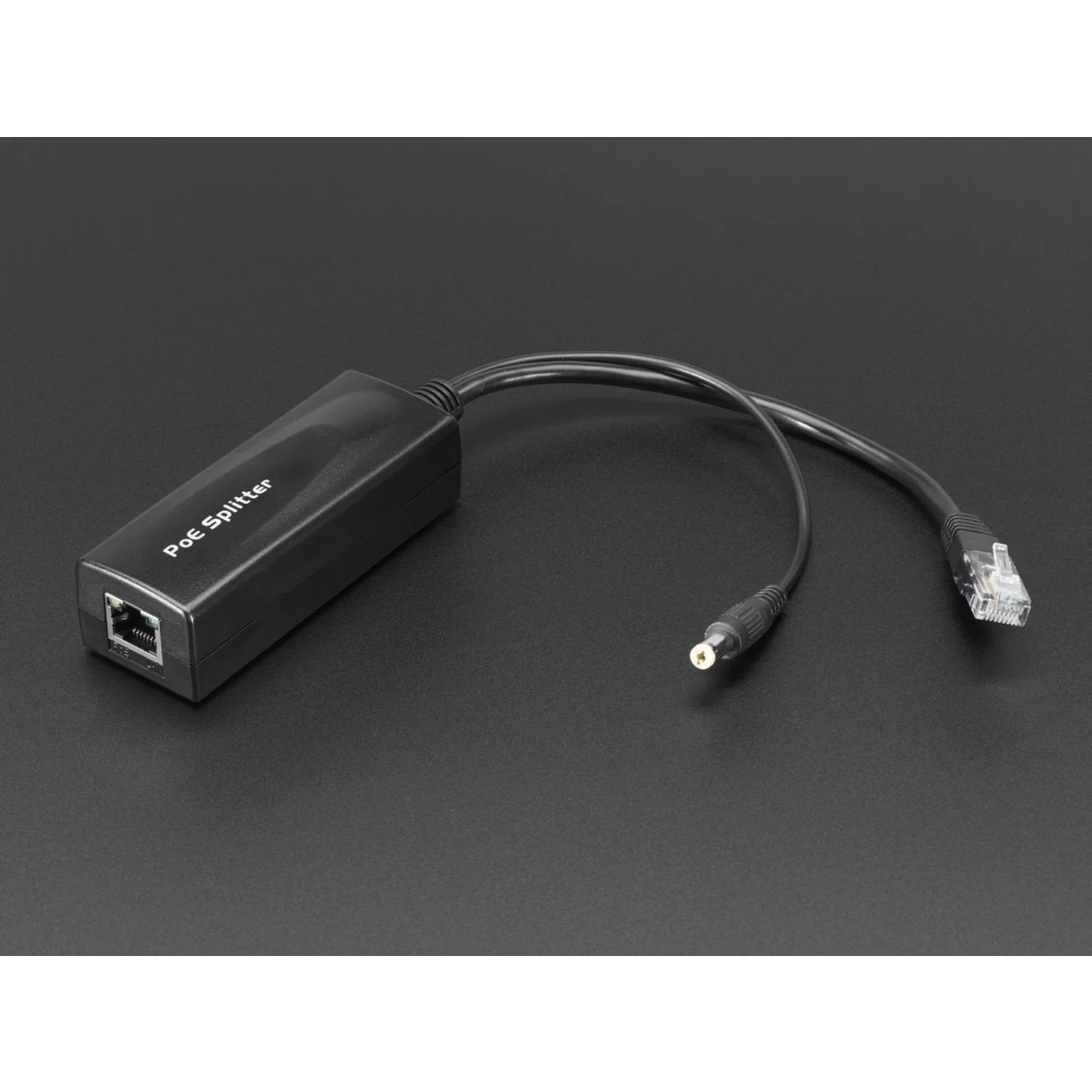

This IEEE 802.3af PoE splitter separates power and data from a single PoE Ethernet cable, providing regulated 12VDC at up to 1A on a standard 2.1 mm DC barrel jack alongside a standard Ethernet data connection. It lets you power non-PoE devices over Ethernet without running separate power cables.

The splitter accepts 44–57V PoE input and supports 10/100 Mbps data transmission. It works with any 802.3af-compliant PoE switch, injector, or router.

Key Features

• IEEE 802.3af Compliant – Works with standard PoE switches and injectors
• Regulated 12V Output – Up to 1A on a 2.1 mm DC barrel jack
• 10/100 Mbps Data – Passes through Ethernet data alongside power
• Wide Input Range – 44–57V PoE input
• Simple Installation – Splits one PoE cable into separate data and power connections

Ideal For

• Powering Raspberry Pi or Arduino over Ethernet
• IP cameras and access points without dedicated power
• Remote sensor installations
• Simplifying wiring for networked devices

Package Contents

• 1× 802.3af PoE Splitter (12V 1A output)
