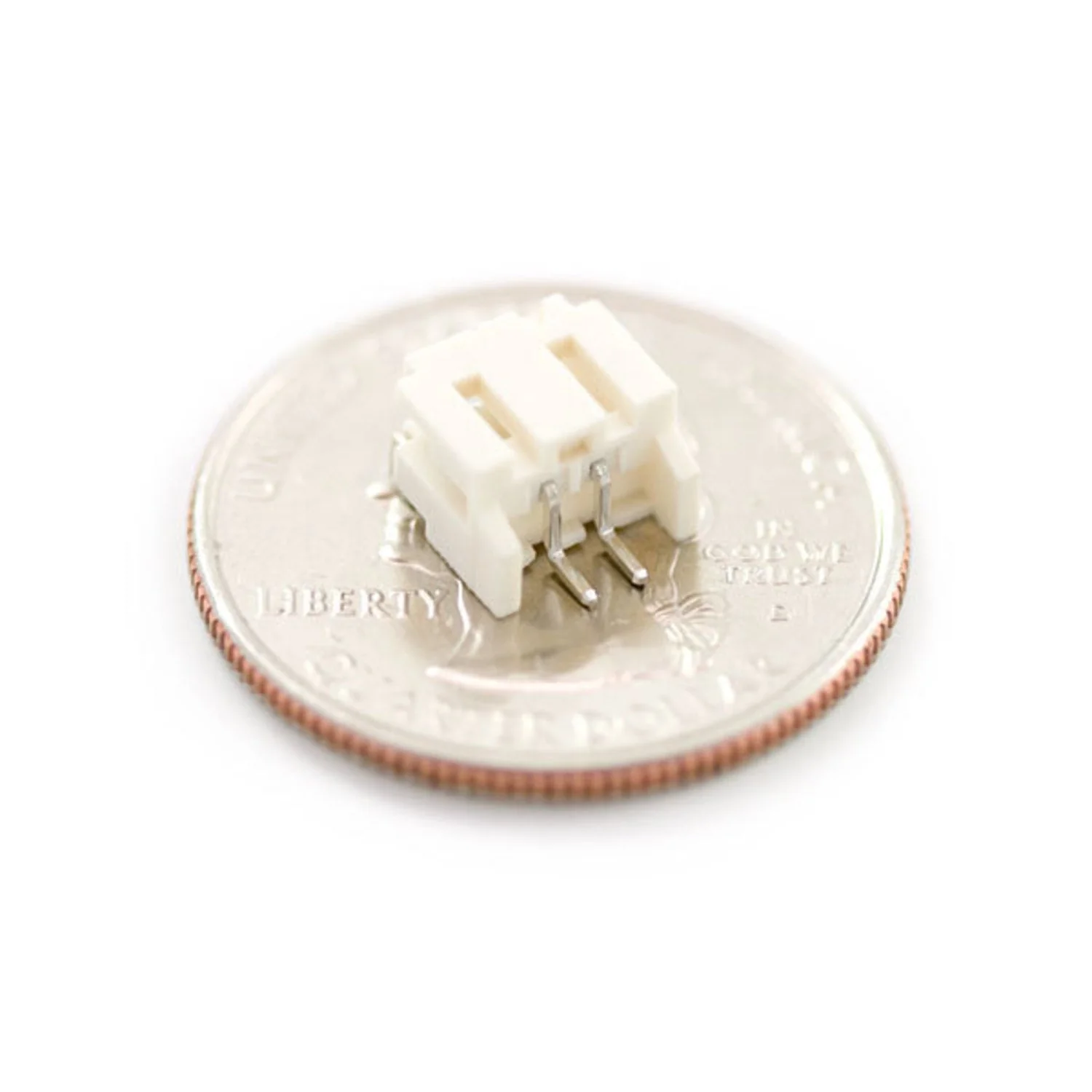

A 2-pin JST right-angle surface mount connector with a secure locking mechanism and high current rating. Commonly used as a battery connector on development boards, LiPo chargers, and portable electronics projects.

Key Features

• 2-Pin JST – Standard connector used across many development boards
• Right-Angle Mount – Low-profile horizontal orientation
• Surface Mount – Compact SMD footprint
• Locking Connector – Secure, positive-locking connection

Specifications

• Pins – 2
• Type – JST PH, right-angle, surface mount
• Colour – White

Ideal For

• LiPo battery connections on PCBs
• Custom development board designs
• Portable electronics and wearables
• Replacing damaged battery connectors

Package Contents

• 1× JST Right-Angle Connector (White, 2-pin SMD)

Resources

• Datasheet
