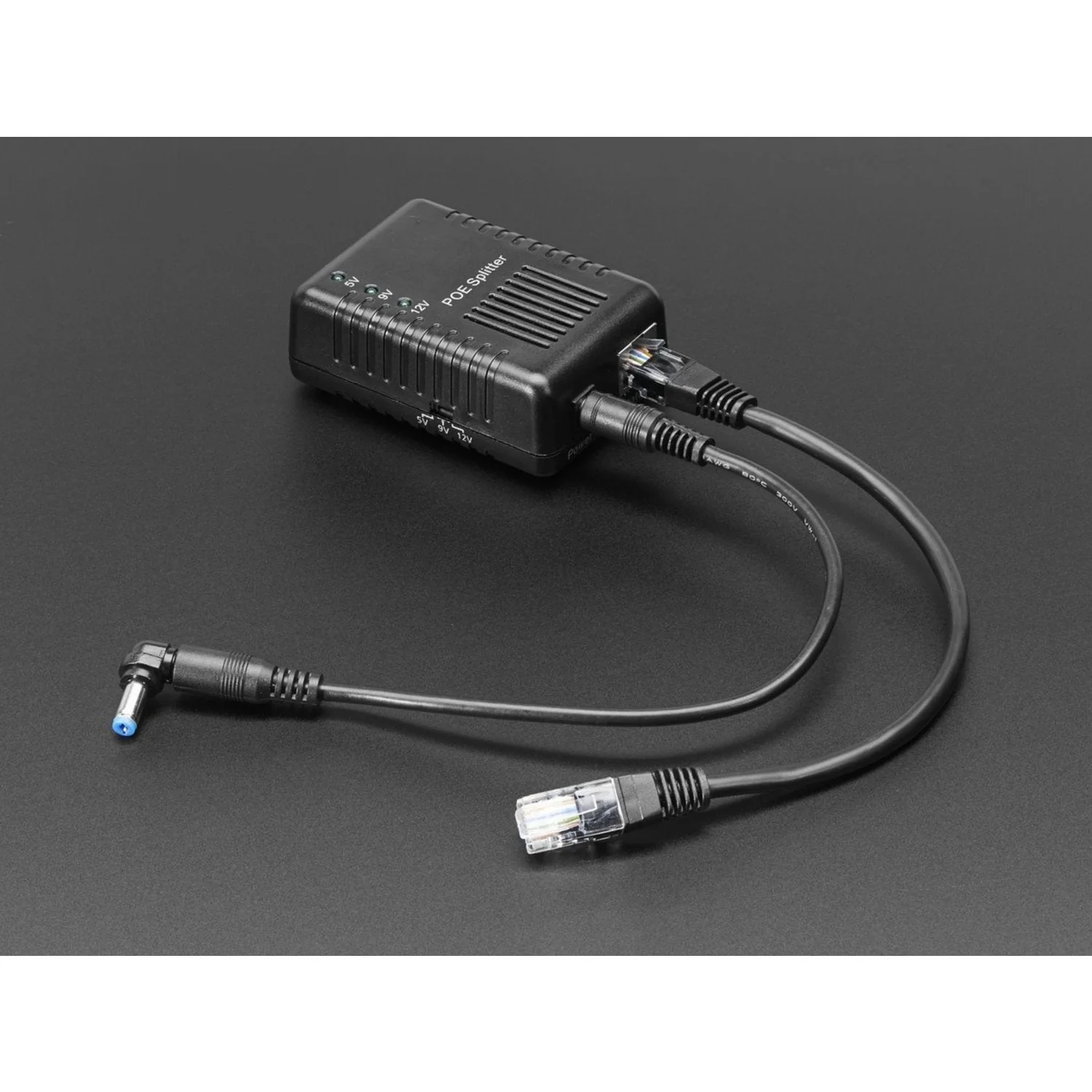

This IEEE 802.3af PoE splitter separates power and data from a single PoE Ethernet cable, providing selectable regulated DC output (5V, 9V, or 12V) at up to 1A alongside a standard Ethernet data connection. A DIP switch on the unit lets you select your desired output voltage.

The splitter accepts 44–57V PoE input, supports 10/100 Mbps data transmission, and includes four interchangeable DC plug adapters with positive-tip output to fit a wide range of devices.

Key Features

• IEEE 802.3af Compliant – Works with standard PoE switches and injectors
• Selectable Output Voltage – 5V, 9V, or 12V via DIP switch
• Up to 1A Output – Regulated DC on a barrel jack
• 10/100 Mbps Data – Passes through Ethernet data alongside power
• Multiple DC Plugs Included – 5.5/2.5 mm, 5.5/2.1 mm, 4.8/1.8 mm, 3.4/1.3 mm
• Wide Input Range – 44–57V PoE input

Also Available

• 802.3af PoE Splitter – 12V 1A – Fixed 12V output version

Ideal For

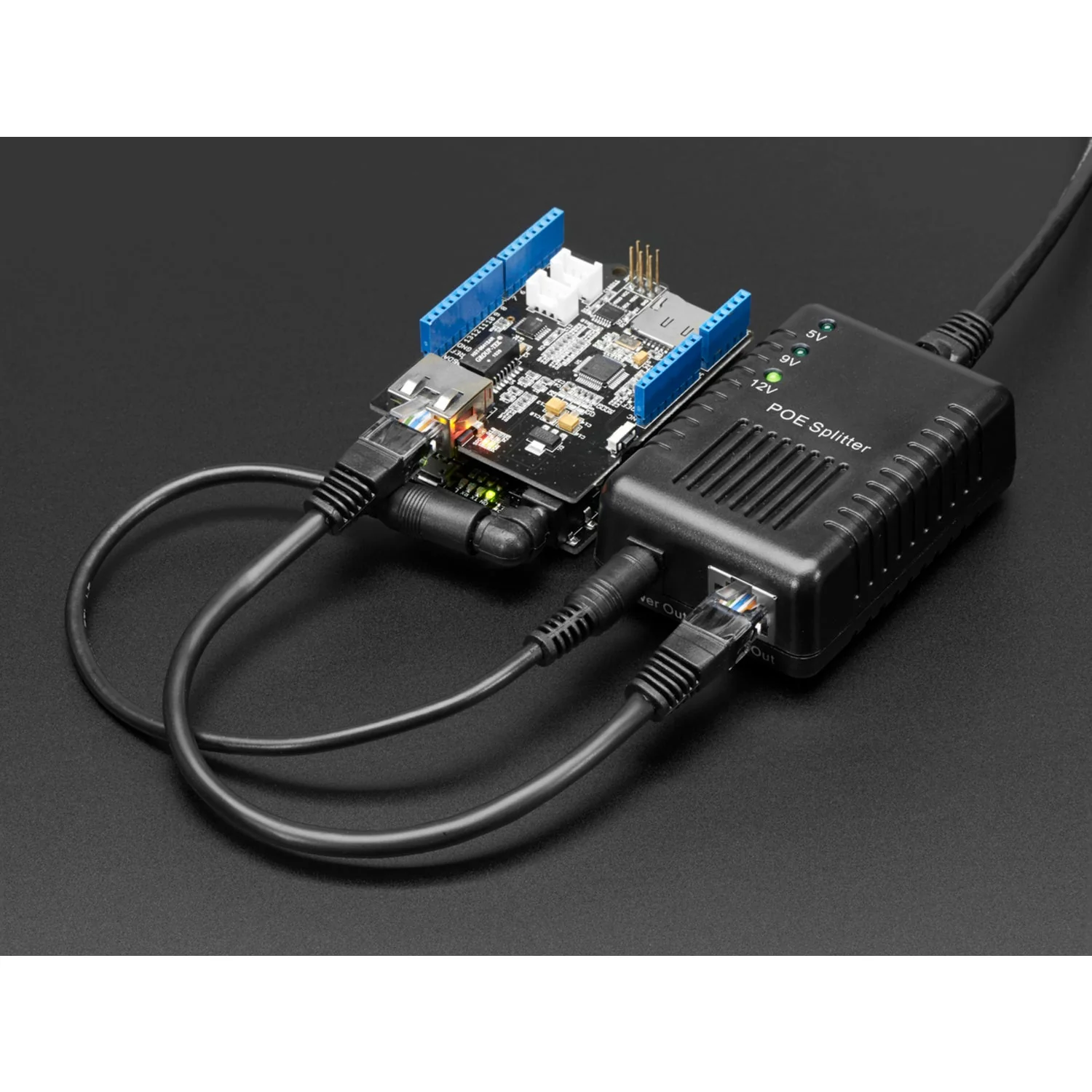

• Powering Raspberry Pi or Arduino over Ethernet
• IP cameras and access points without dedicated power
• Remote sensor installations
• Devices requiring 5V, 9V, or 12V DC

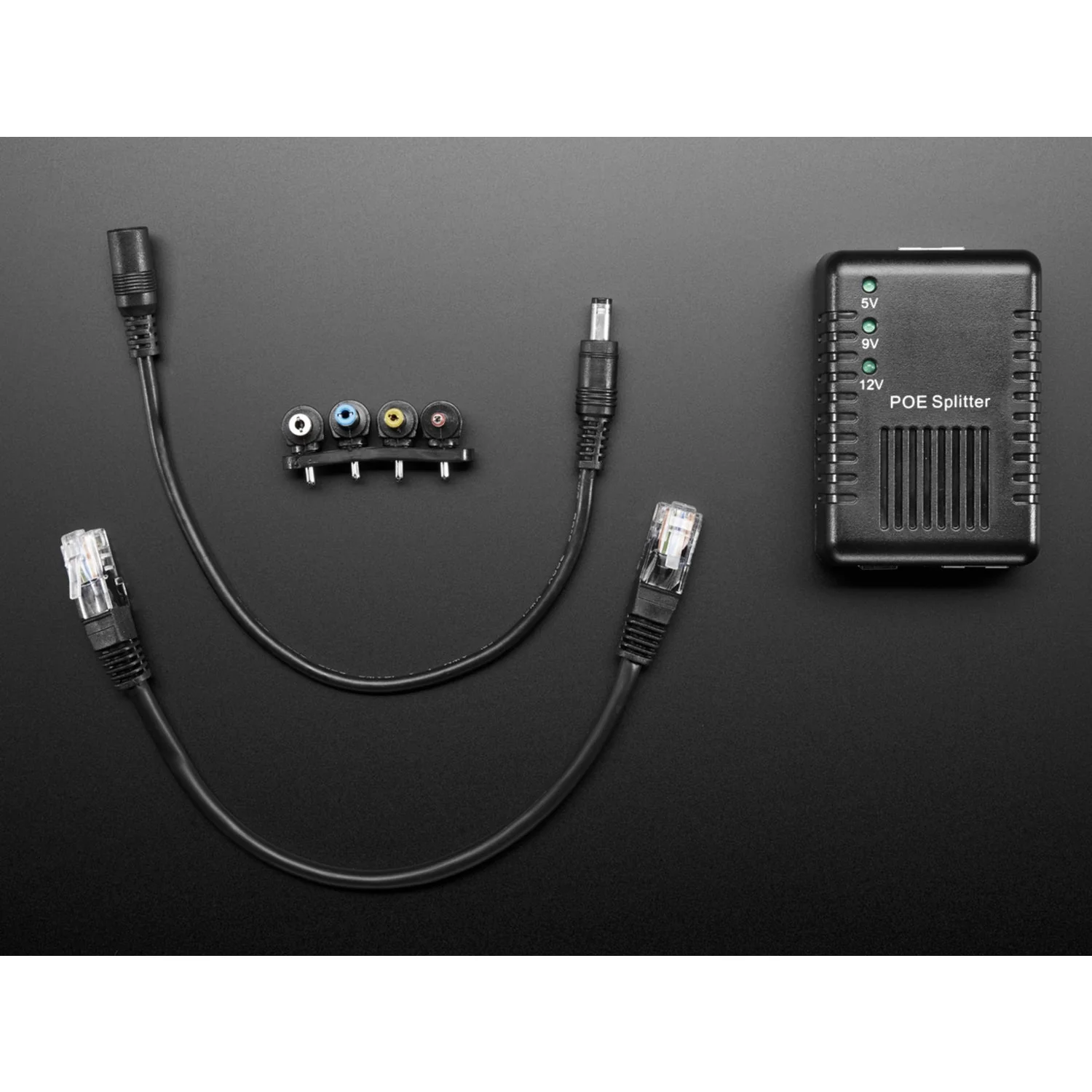

Package Contents

• 1× 802.3af PoE Splitter (5/9/12V selectable output)
• 4× DC plug adapters (5.5/2.5 mm, 5.5/2.1 mm, 4.8/1.8 mm, 3.4/1.3 mm)
