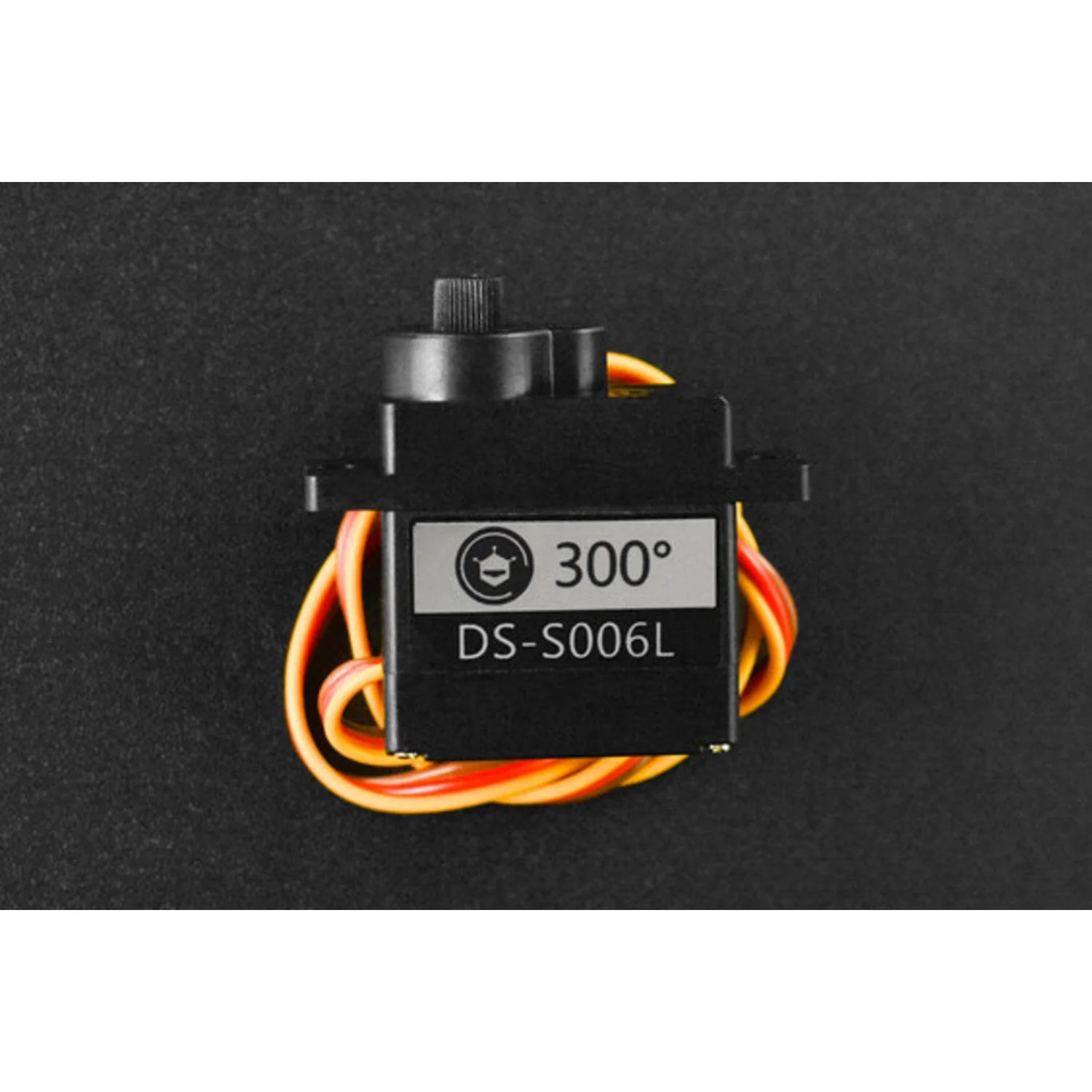

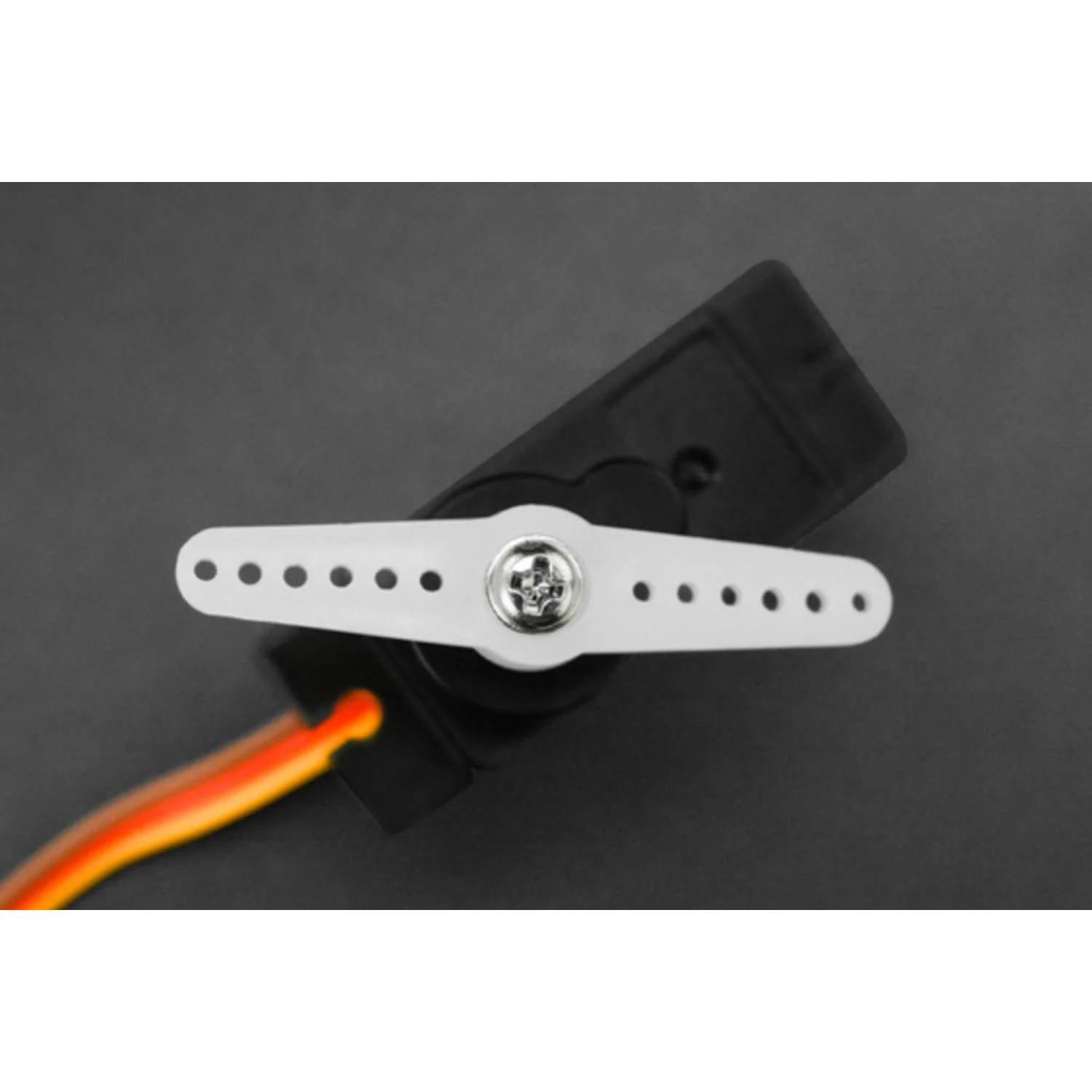

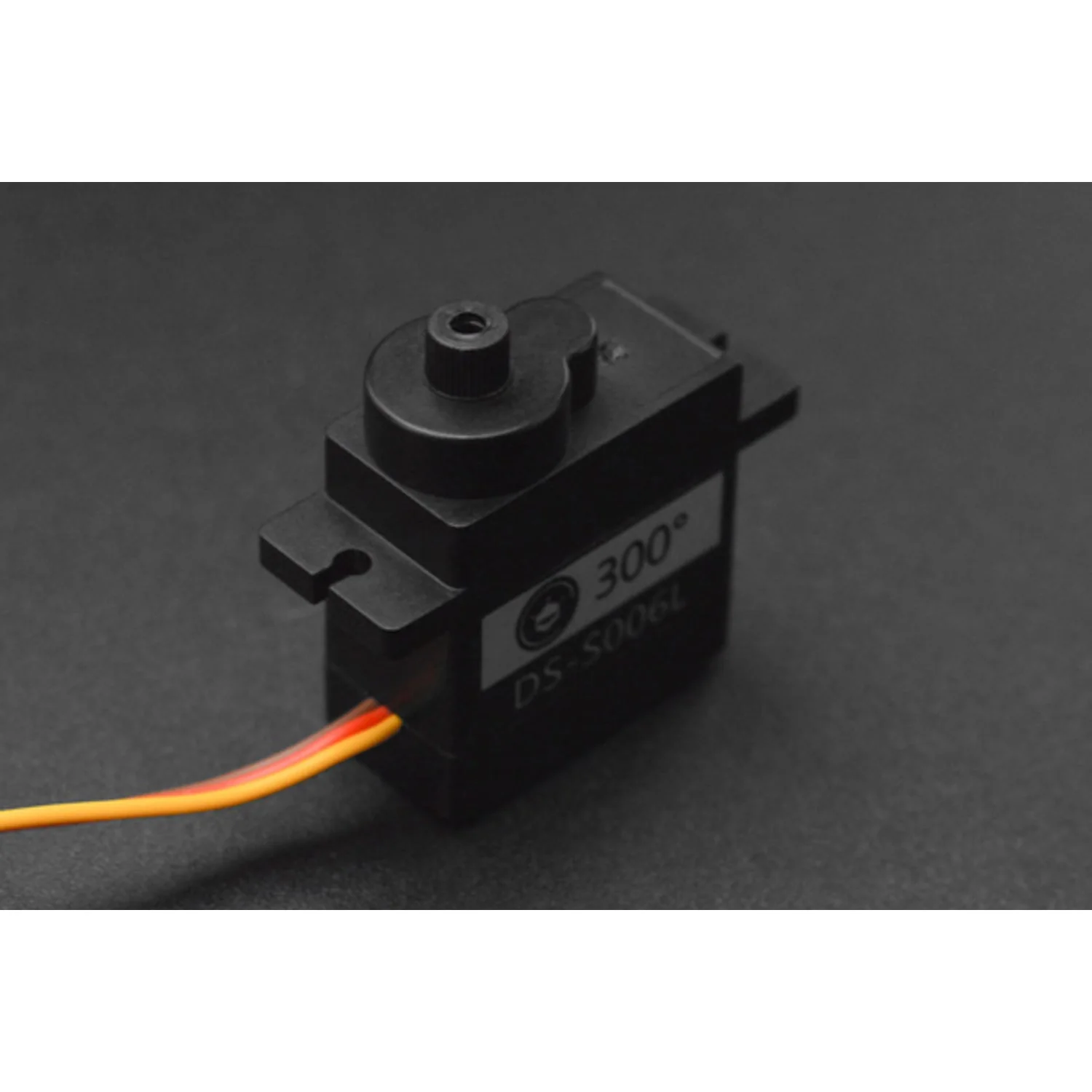

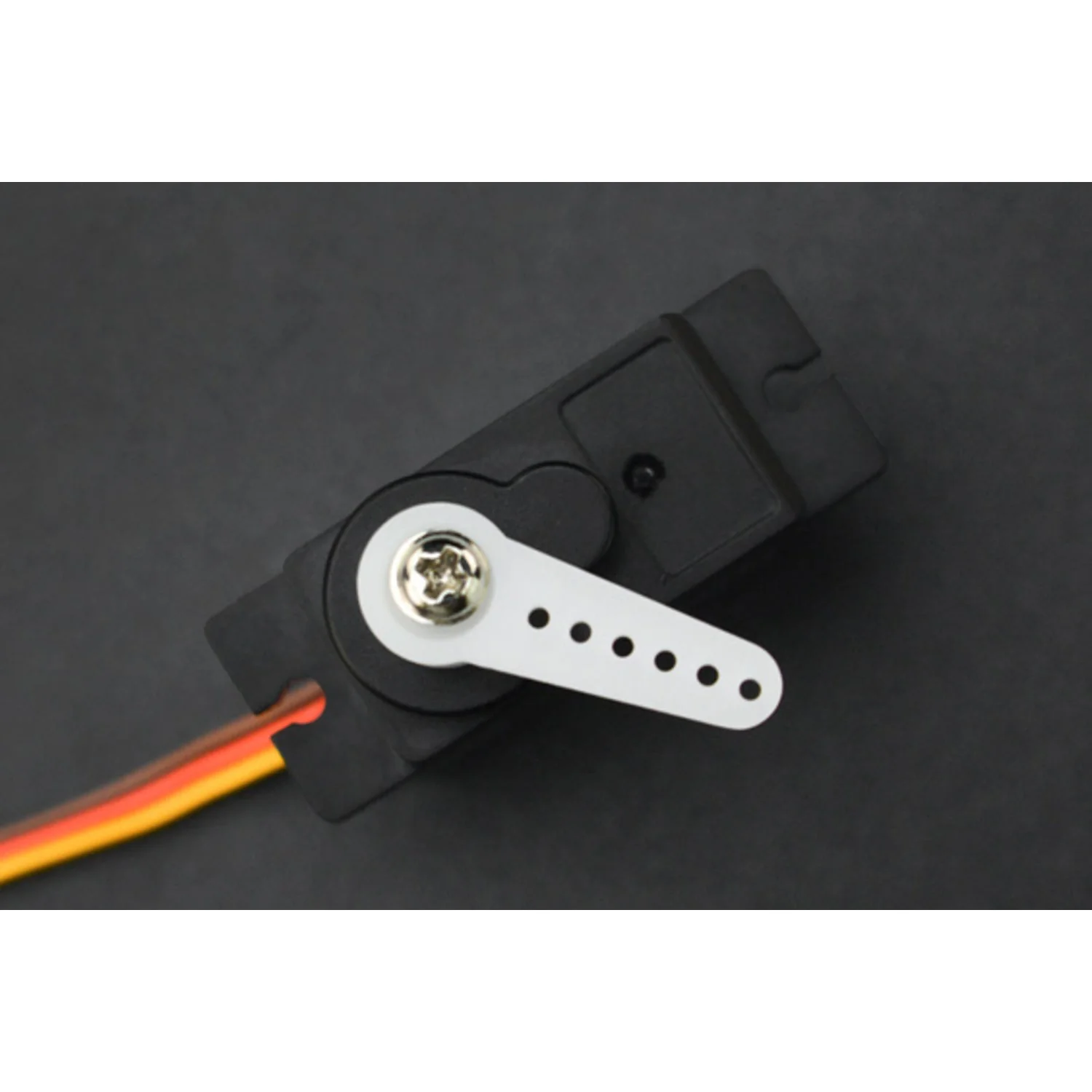

A 9g micro servo with 300° rotation and a built-in clutch mechanism that protects the servo from damage when external forces are applied. If the servo angle is changed by an external force during operation, the clutch allows it to automatically reset and continue working without stripping gears or burning out.

An electronic protection feature automatically cuts power after 5 seconds of being stalled, preventing overheating and burnout. The extended 300° range provides more travel than standard servos. Compatible with Arduino servo libraries using PWM control.

Key Features

• Clutch Protection – Automatically resets when forced out of position by external loads
• Electronic Stall Protection – Shuts off power after 5 seconds of continuous stall
• 300° Rotation – Extended range within 500–2500μs pulse width
• Low Power – Runs from standard battery or USB power sources
• Arduino Compatible – Works directly with Arduino servo libraries

Specifications

• Operating Voltage – 4.8–6V DC
• Operating Angle – 300° ±10°
• Static Current – ≤8mA (at 6V)
• No-Load Current – ≤110mA (4.8V) / ≤120mA (6V)
• Stall Current – ≤700mA (4.8V) / ≤800mA (6V)
• Rated Torque – ≥0.45 kgf·cm (4.8V) / ≥0.55 kgf·cm (6V)
• Stall Torque – ≥1.6 kgf·cm (4.8V) / ≥2.0 kgf·cm (6V)
• Communication – PWM (500–2500μs)

Also Available

• 9g 180° Clutch Servo – Standard range with clutch protection
• 9g 270° Metal Servo with Analog Feedback – Metal gears with position feedback

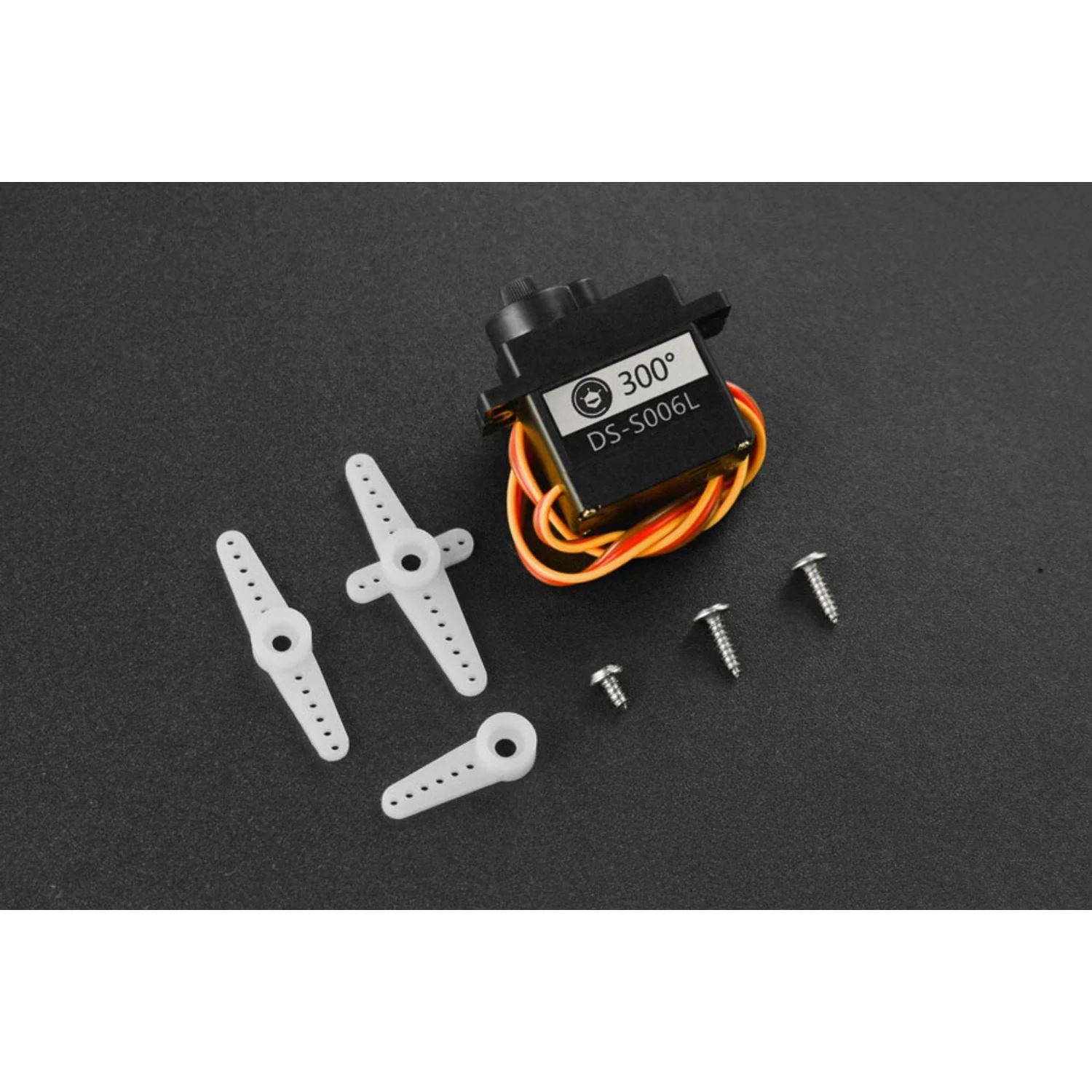

Package Contents

• 1× 9g 300° Clutch Servo
