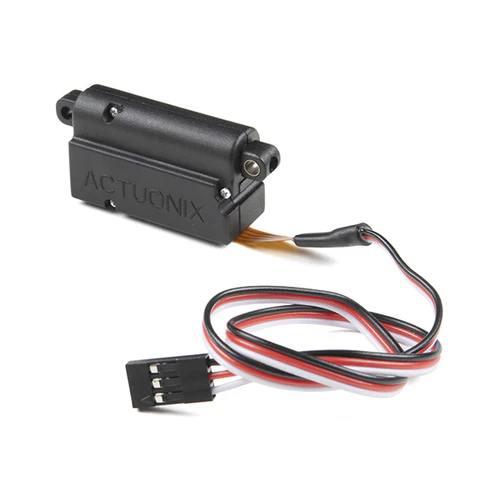

The Actuonix PQ12-100-6-R is a micro linear actuator with a servo-compatible PWM interface. Weighing just 22 grams with a 20mm stroke, it delivers up to 50N (~5 kg) of force thanks to its 100:1 gear ratio — making it one of the most powerful actuators of its size.

The PQ12-R series operates as a direct drop-in replacement for standard rotary servos, using the same 3-wire connector (ground, power, control). Whether driven by an RC receiver, Arduino, or other microcontroller, the PQ12-R provides linear motion where a rotary servo would normally go.

Key Features

• Servo Interface – Standard 3-wire PWM connection, drop-in replacement for rotary servos
• 100:1 Gear Ratio – Maximum lifting force of 50N (~5 kg)
• Compact & Lightweight – Just 22 grams with a 20mm stroke
• High Precision – ±0.1mm positional repeatability
• IP-54 Rated – Protected against dust and water splashes

Specifications

• Gear Ratio: 100:1
• Stroke: 20mm
• Input Voltage: 6V DC
• Stall Current: 550mA @ 6V
• Peak Power Point: 40N @ 6mm/s
• Peak Efficiency Point: 20N @ 8mm/s
• Max Speed (no load): 10mm/s
• Max Force (lifted): 50N
• Max Side Load: 10N
• Back Drive Force: 35N
• Mass: 22g
• Operating Temperature: -10°C to +50°C
• Positional Repeatability: ±0.1mm
• Mechanical Backlash: 0.25mm
• Audible Noise: 55dB @ 45cm
• Ingress Protection: IP-54
• Maximum Duty Cycle: 20%
• PWM Signal: Fully retracted 2.0ms / Fully extended 1.0ms @ 50Hz

Ideal For

• Robotics and prosthetics
• RC and hobby projects
• Arduino servo replacement (linear motion)
• Medical and simulation applications
• Compact mechanical prototyping

Package Contents

• 1× PQ12-100-6-R Micro-Actuator
• 1× Mounting Hardware Kit
