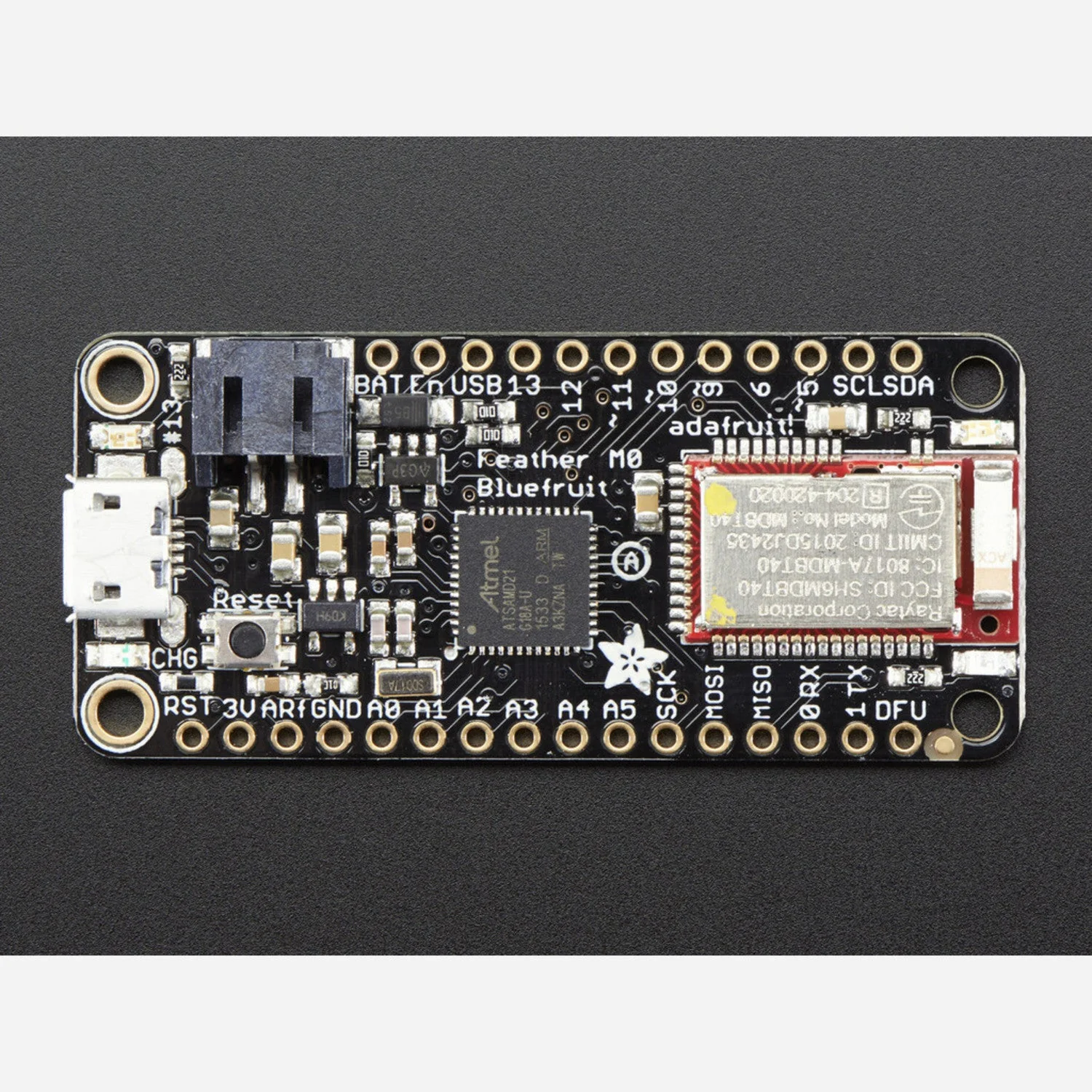

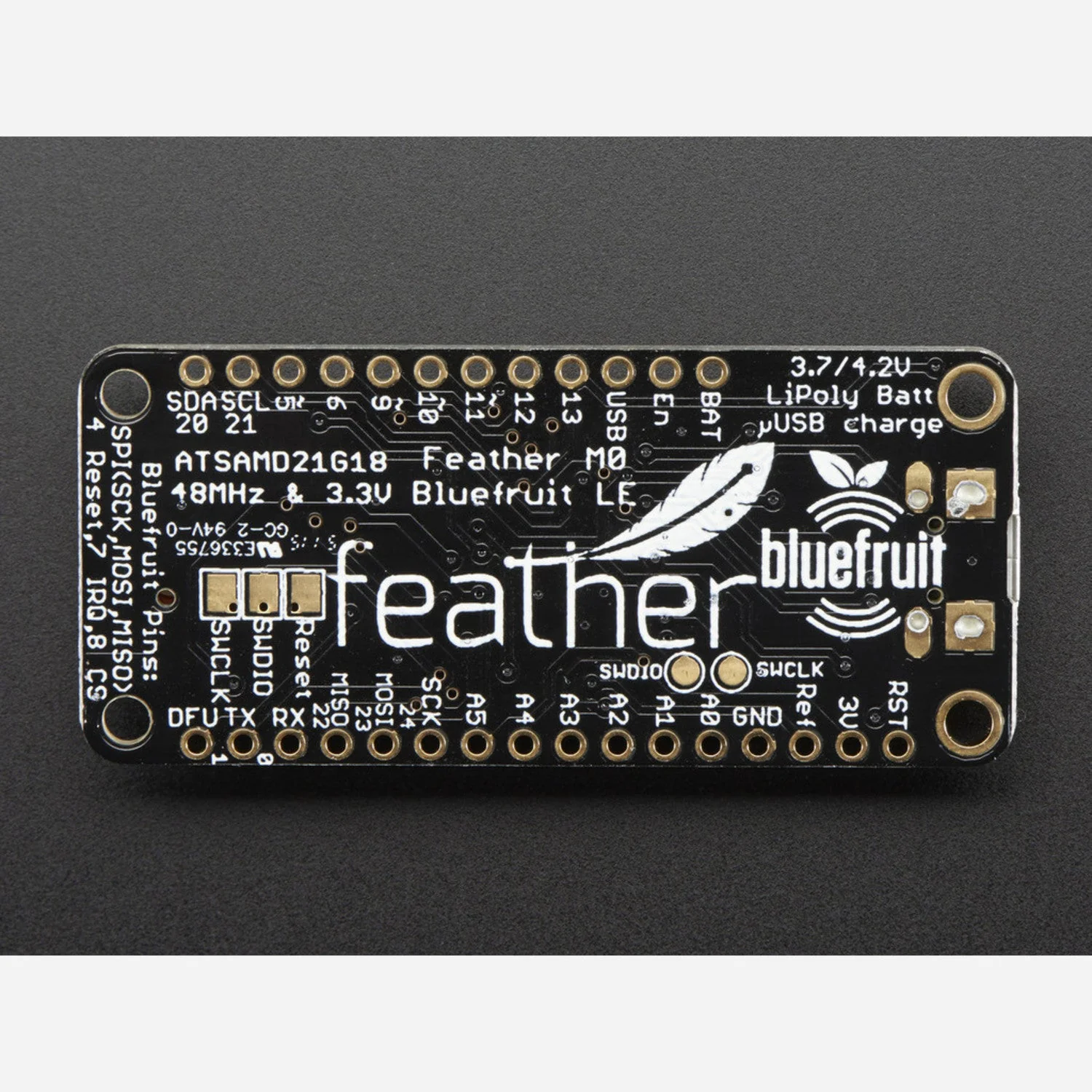

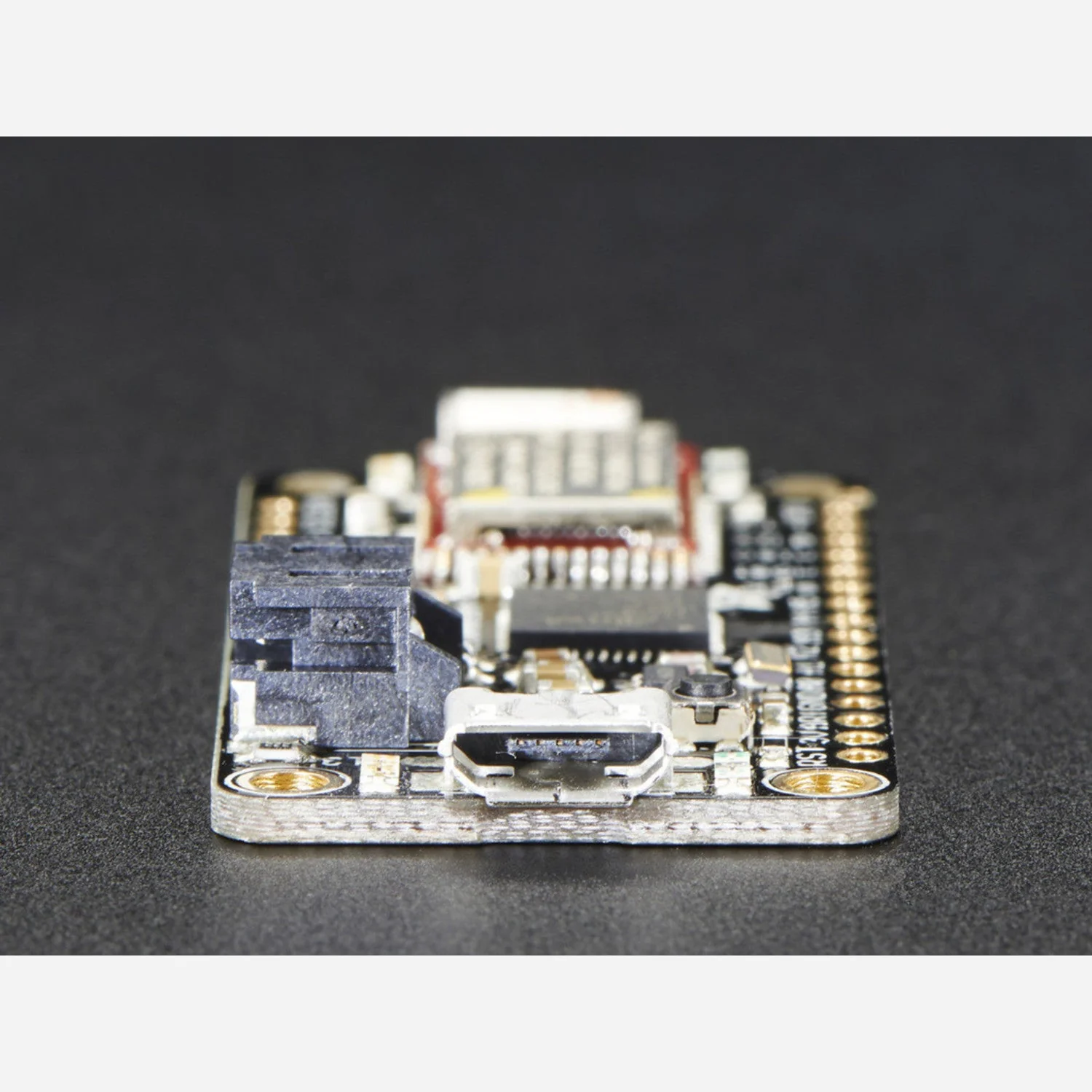

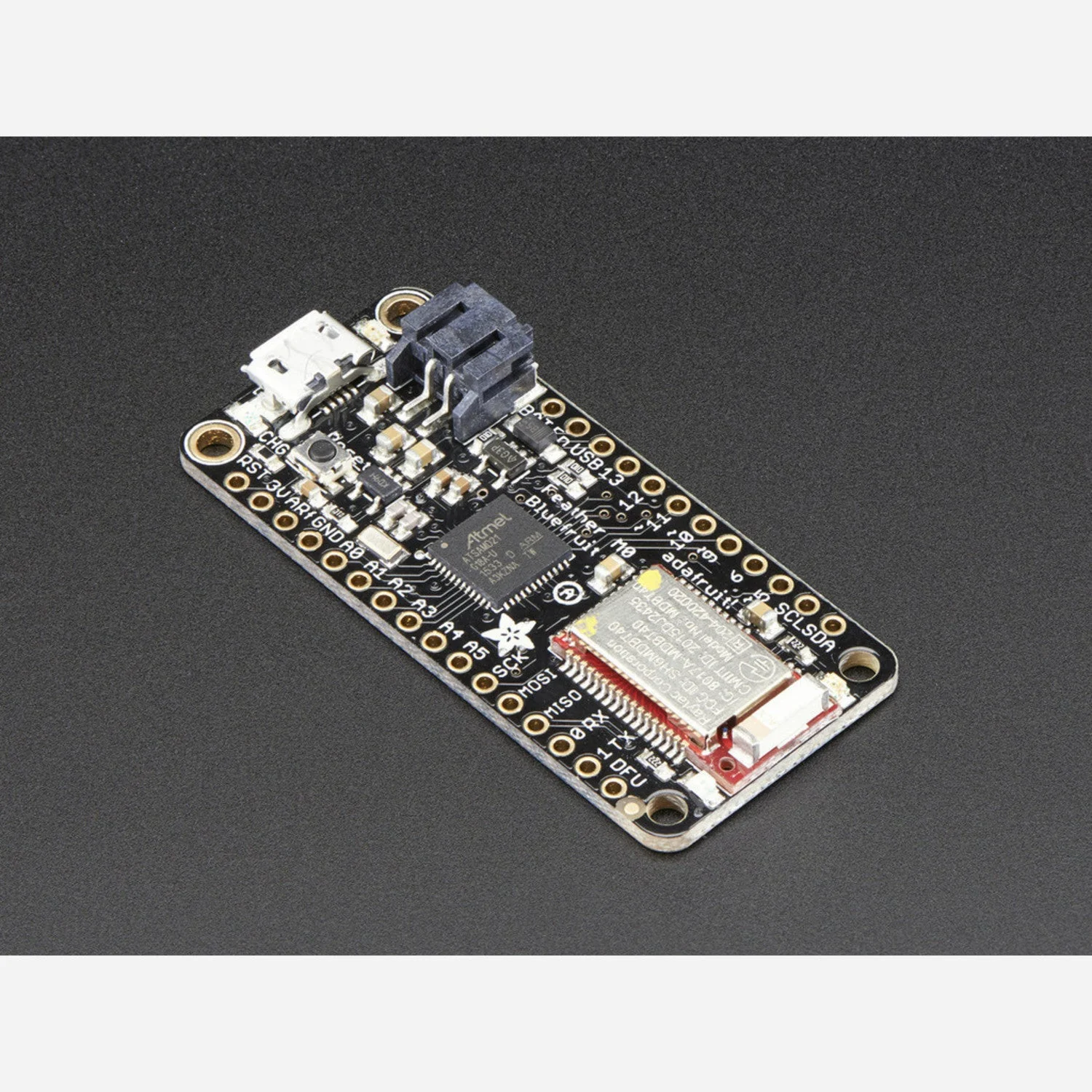

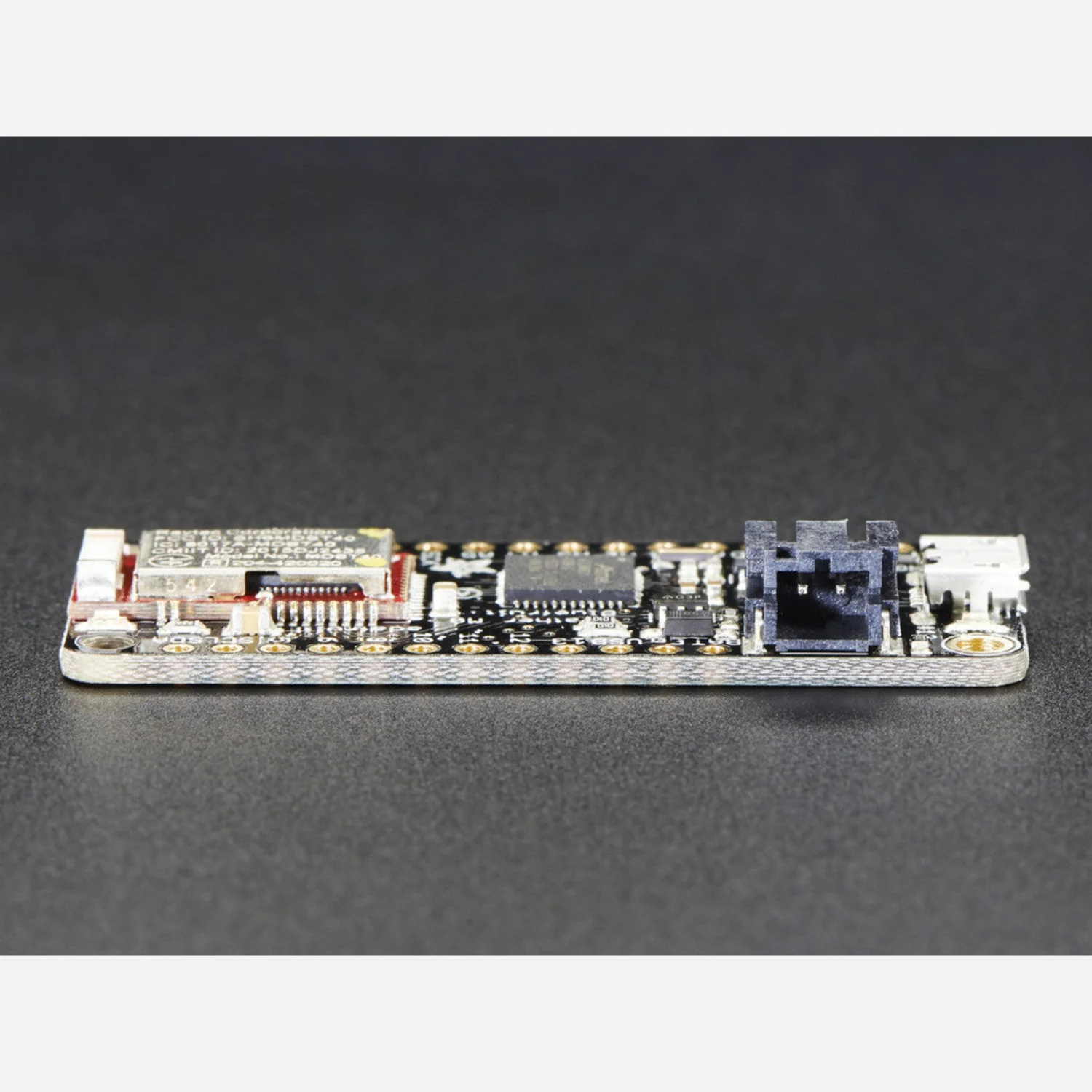

Adafruit Feather M0 Bluefruit LE
The Feather M0 Bluefruit LE combines an ATSAMD21G18 ARM Cortex M0 processor with a Bluetooth Low Energy module, native USB, and LiPo battery charging. With the power of a 48 MHz ARM core and 256KB of flash, it provides significantly more processing headroom than the 32u4-based Bluefruit while maintaining full BLE functionality.
BLE is supported by all modern smartphones and tablets (iOS, Android, Mac OS X, Windows 8+). The Bluefruit module is built on the Nordic nRF51822 chipset and supports transparent UART serial communication, custom GATT services, HID keyboard emulation, UriBeacon broadcasting, and over-the-air firmware updates.
Key Features
- ATSAMD21G18 @ 48 MHz – ARM Cortex M0, 3.3V logic, 256KB flash, 32KB RAM
- Native USB – Built-in USB bootloader and serial port debugging
- Bluetooth Low Energy (nRF51822) – iOS and Android compatible
- UART Service – Transparent serial data pipe between BLE device and microcontroller
- AT Command Set – Full control over BLE behaviour, GATT services, and advertising
- BLE HID Keyboard – Act as a wireless keyboard for compatible devices
- BLE Heart Rate Monitor – Standard BLE health profile support (external sensor required)
- UriBeacon Support – Broadcast URLs to nearby devices
- Over-the-Air Updates – Update BLE module firmware via iOS or Android
- 20 GPIO Pins – Including 10 analogue inputs, 8 PWM outputs, and 1 analogue output (DAC)
- Hardware Serial, I2C & SPI – Full peripheral support

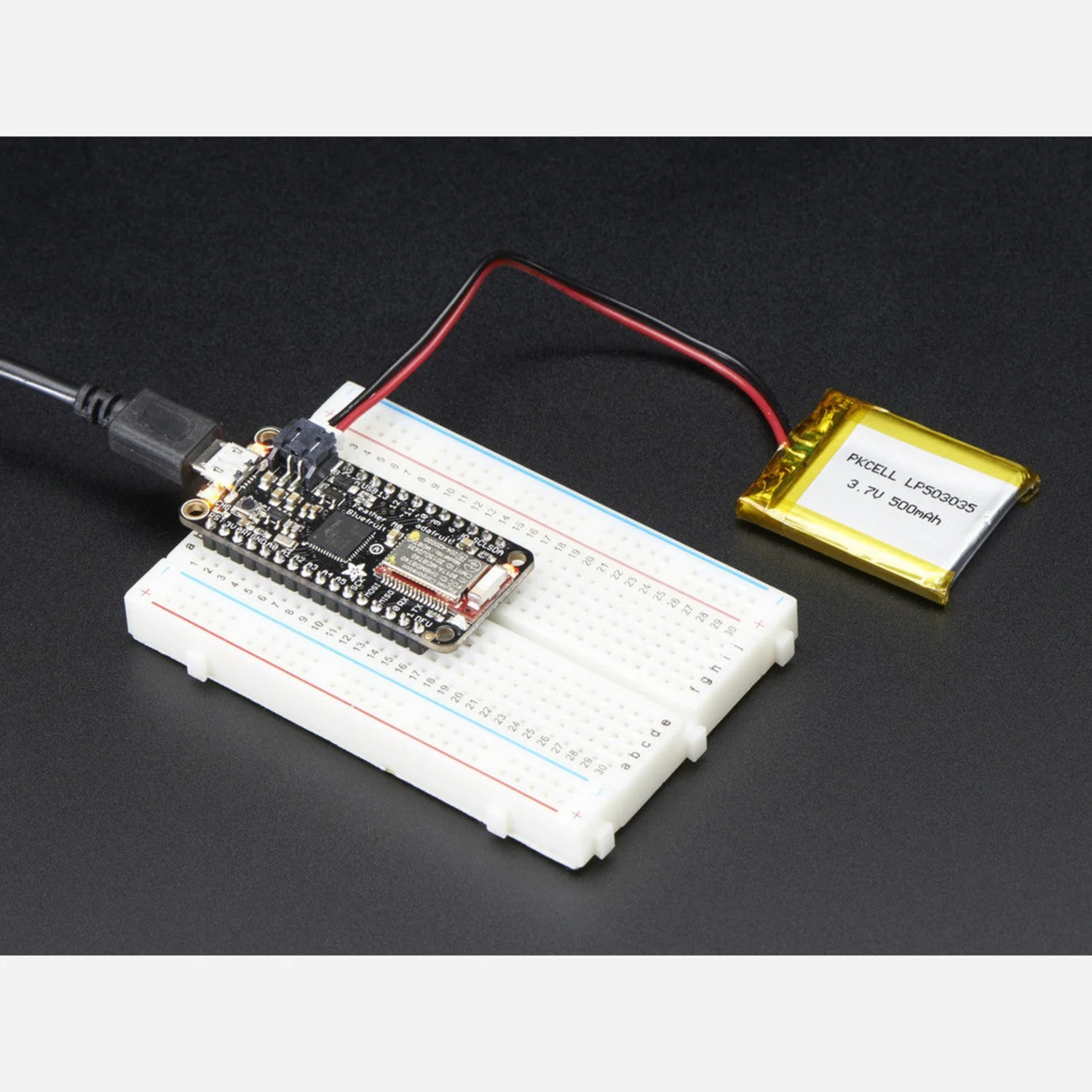

- Built-in LiPo Charger – 100 mA charging with status indicator LED
- Battery Monitoring – Battery voltage routed to an analogue pin via divider
- 3.3V Regulator – 500 mA peak current output
Specifications
- Dimensions – 51 × 23 × 8 mm (without headers)
- Weight – 5.7 g
- Mounting – 4 mounting holes
Also Available
- Feather M0 Adalogger – With MicroSD card holder
- Feather M0 Basic Proto – With prototyping area
- Feather M0 Express – Designed for CircuitPython
- Feather M0 WiFi – With ATWINC1500 Wi-Fi
- Feather M0 RFM95 LoRa Radio (900 MHz)
- Feather 32u4 Bluefruit LE – ATmega32u4 variant
Ideal For
- Phone-controlled projects via iOS or Android
- Wireless sensor data transmission
- BLE HID keyboards and controllers
- Projects needing more processing power than the 32u4 Bluefruit
Package Contents

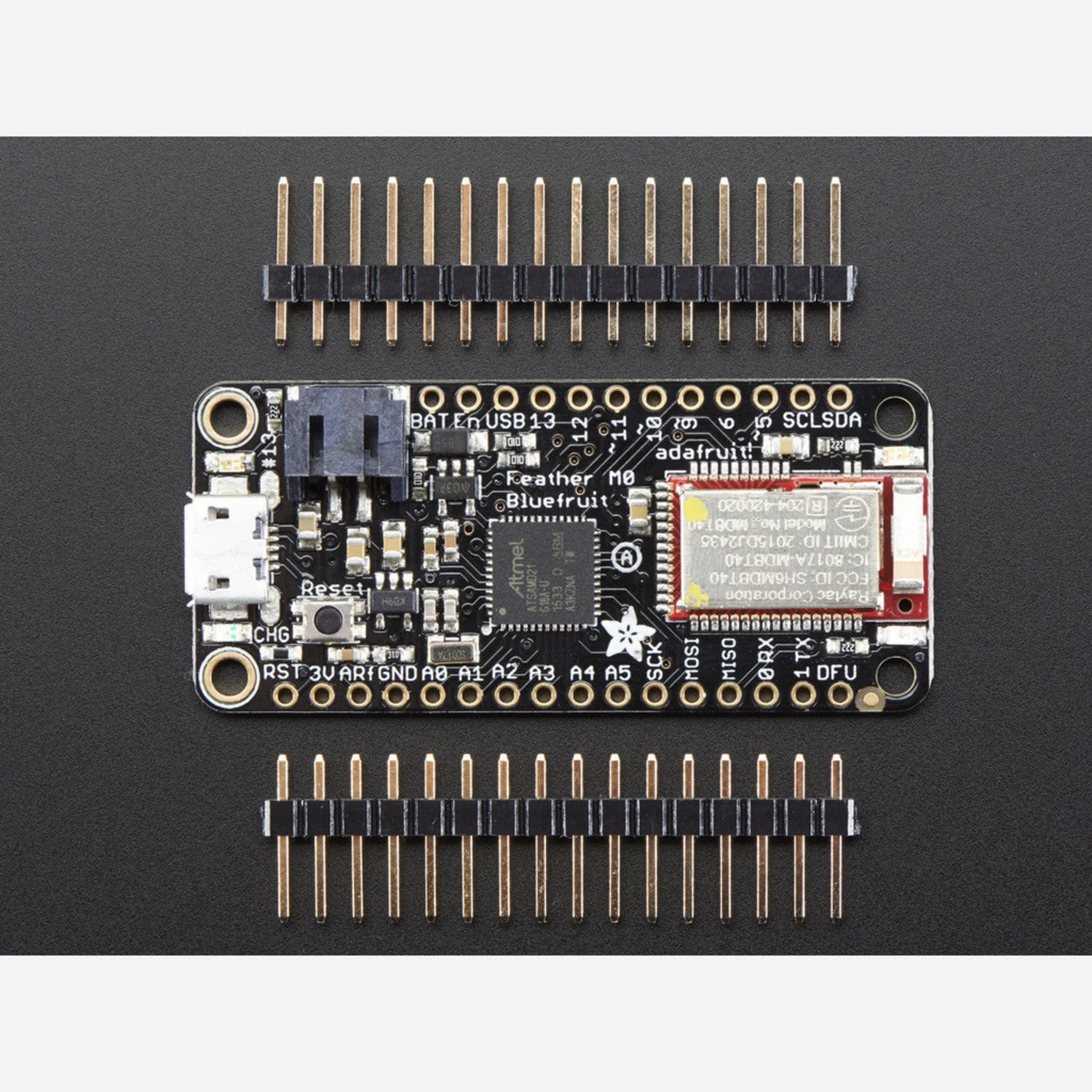

- 1× Assembled and tested Feather M0 Bluefruit LE
- 1× Header set
