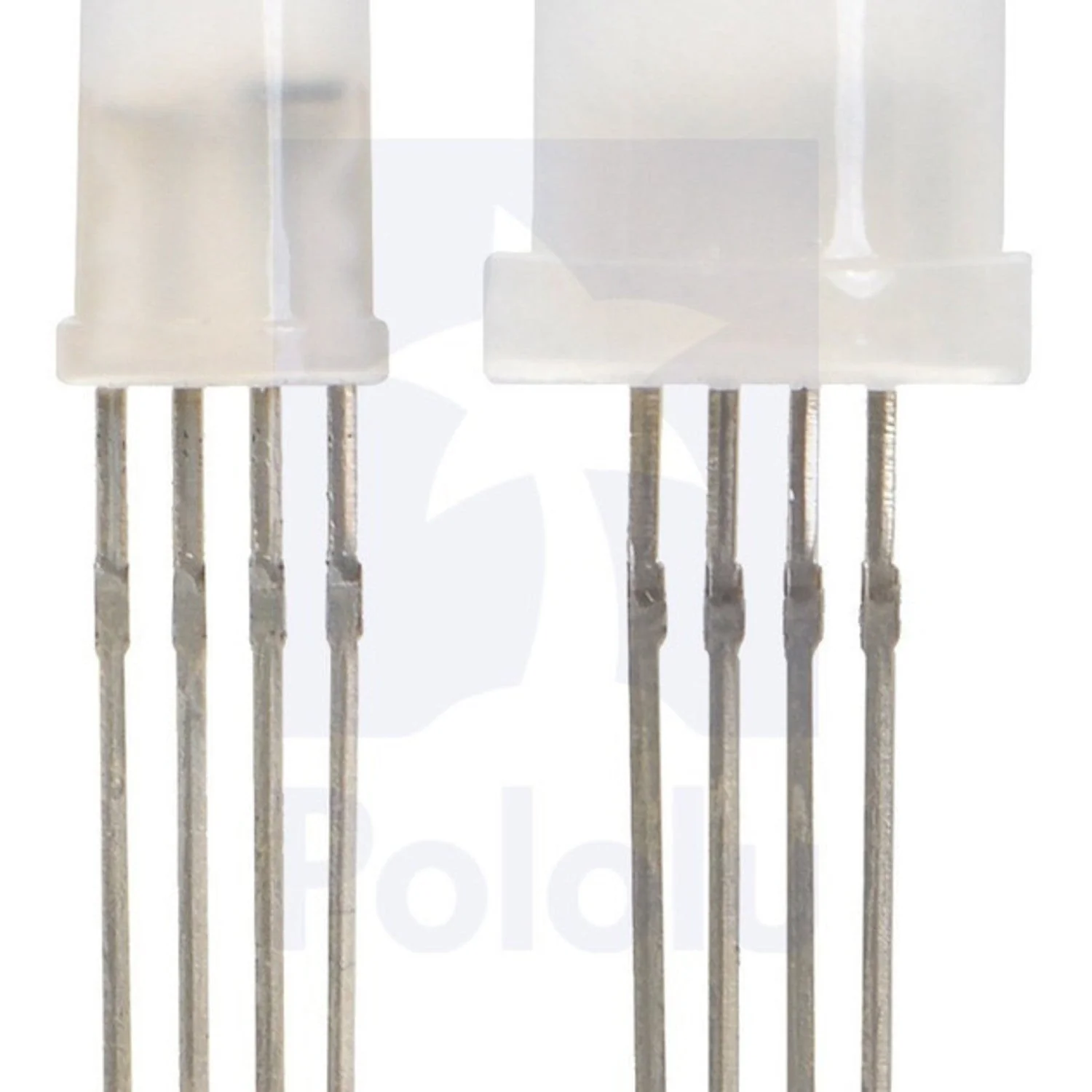

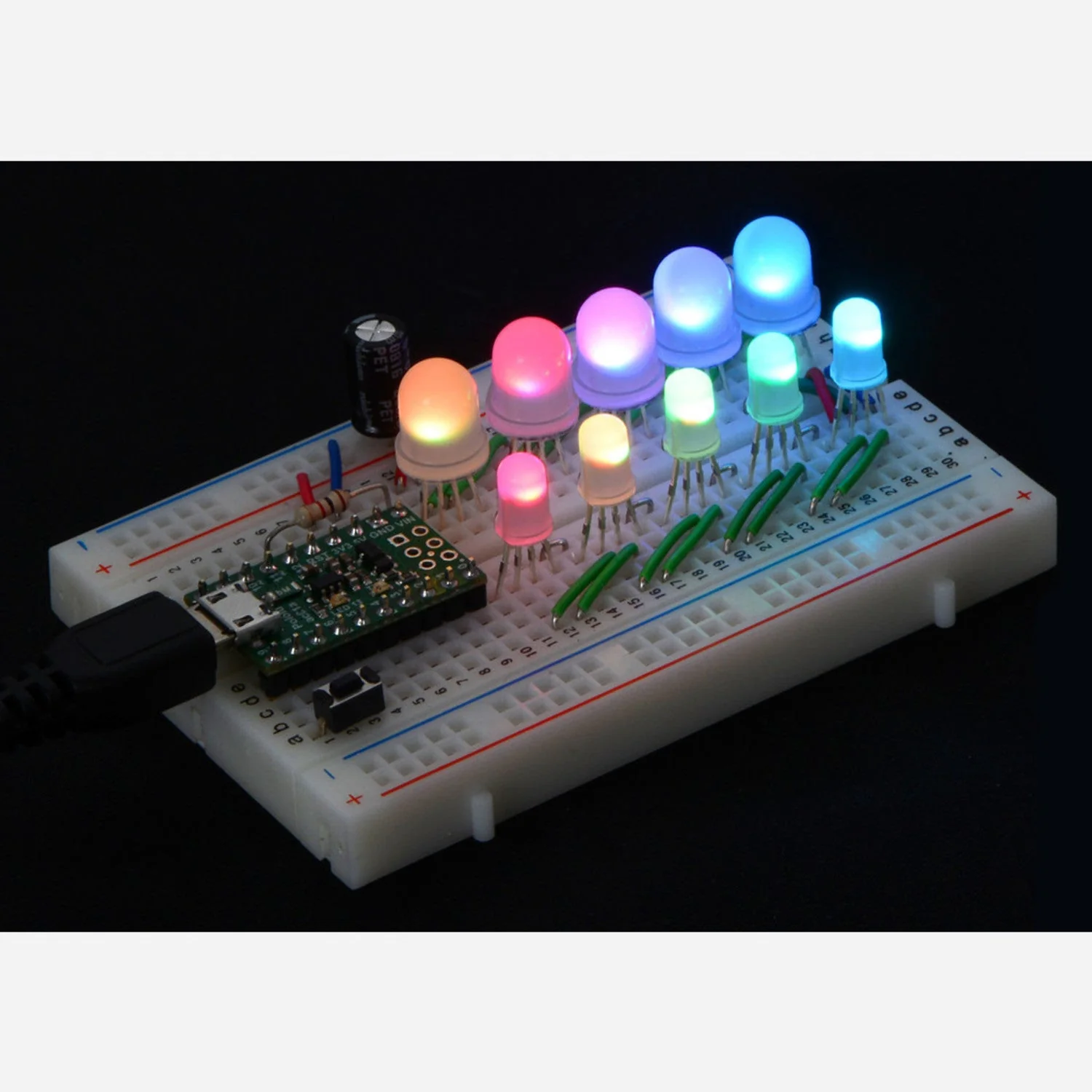

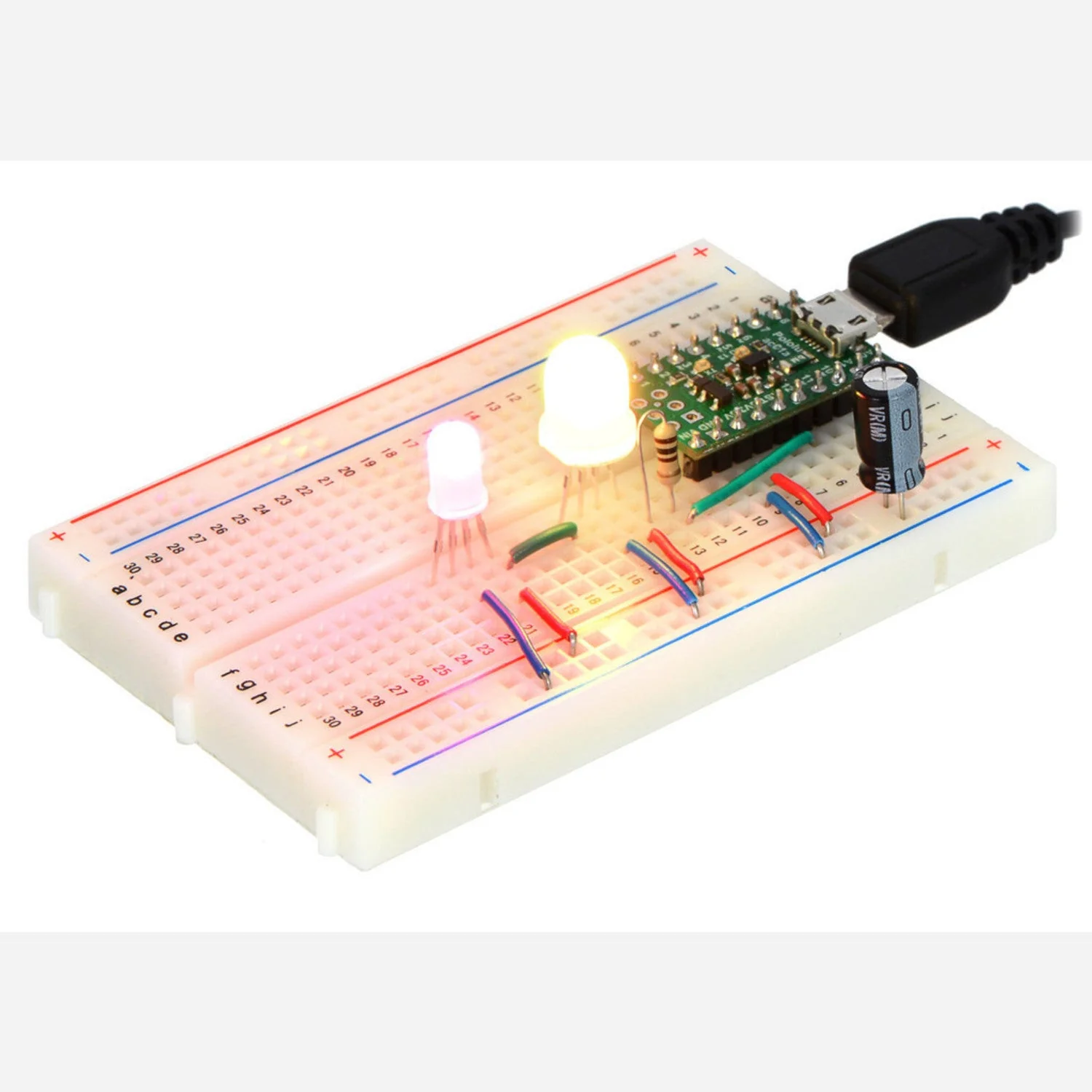

A pack of 10 addressable RGB LEDs in a larger 8 mm through-hole form factor with diffused lenses. Each LED contains an integrated WS2811 driver, allowing you to control the colour of every LED individually using just one microcontroller pin. Chain them together for custom lighting effects.

Unlike standard LEDs, these addressable LEDs can each display any of 16.8 million colours independently. They're compatible with popular NeoPixel libraries and can be mixed with WS2812B LED strips in the same chain. The 8 mm size provides a larger, more visible light output compared to standard 5 mm LEDs.

Key Features

• Individually Addressable – Control each LED's colour separately
• One-Wire Interface – Only needs a single data pin from your microcontroller
• Chainable – Connect multiple LEDs in series
• 24-Bit Colour – 16.8 million colours (8-bit per R/G/B channel)
• 8 mm Diffused Lens – Larger size with soft, even light output
• Breadboard Friendly – Standard through-hole mounting

Ideal For

• Custom LED displays and signs
• Wearable electronics
• Status indicators requiring higher visibility
• Art installations
• Learning addressable LED programming

Specifications

• LED Size: 8 mm diameter, diffused lens
• Driver: WS2811
• Operating Voltage: 5V

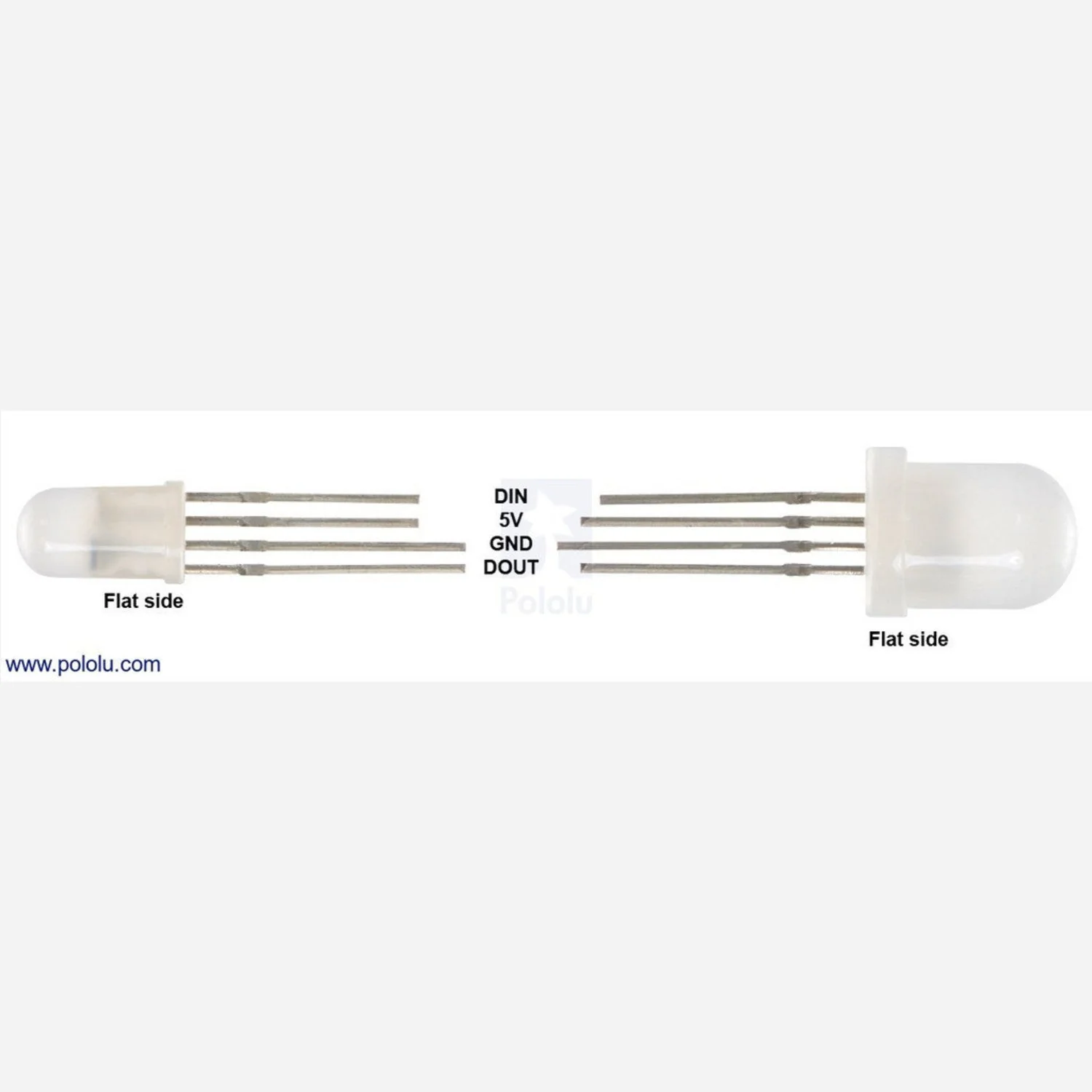

• Pins: 4 (5V, GND, DIN, DOUT)

Package Contents

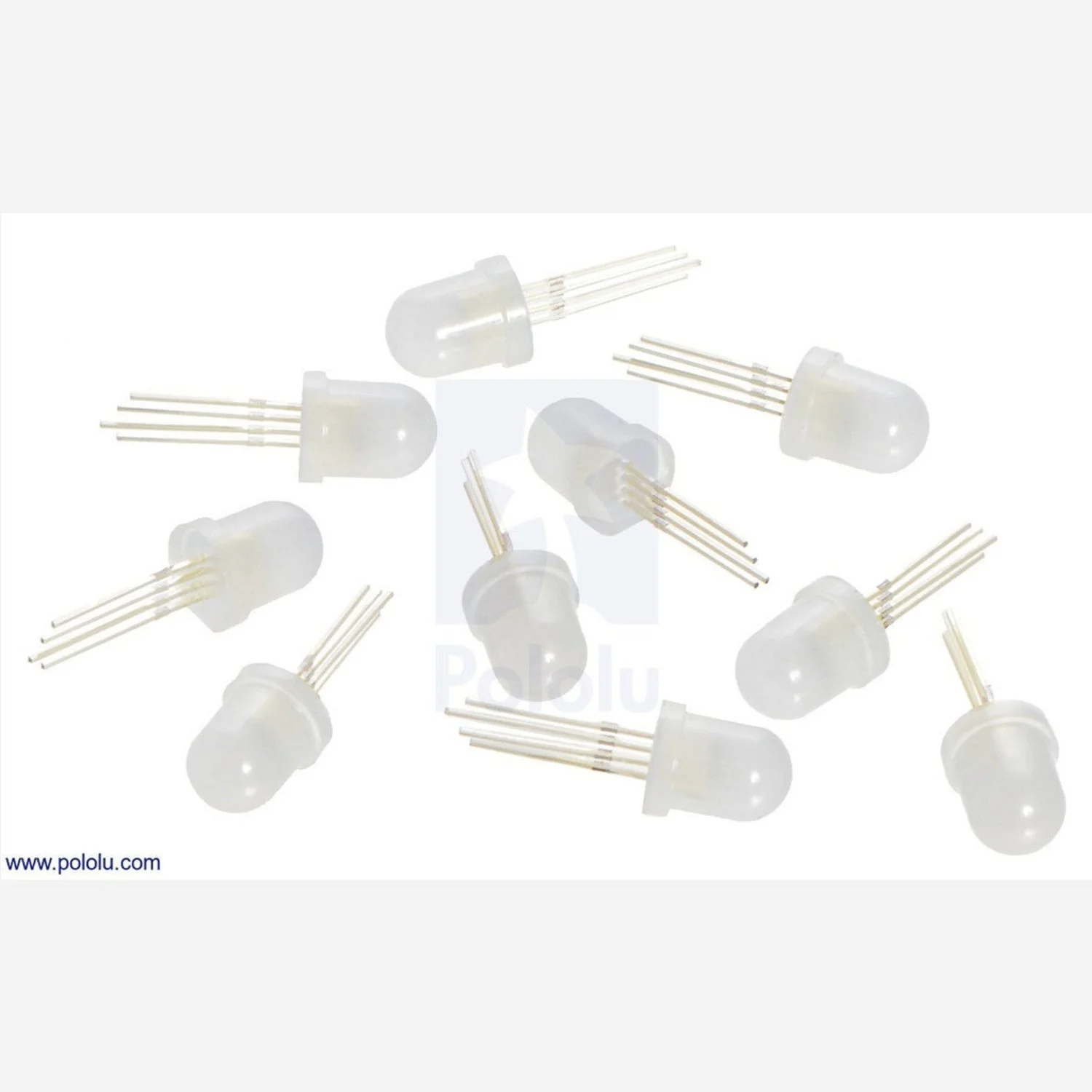

• 10× Addressable 8 mm RGB LEDs (WS2811)

Resources

• Pololu LED Strip Arduino Library (GitHub)
• Adafruit NeoPixel Library (GitHub)
