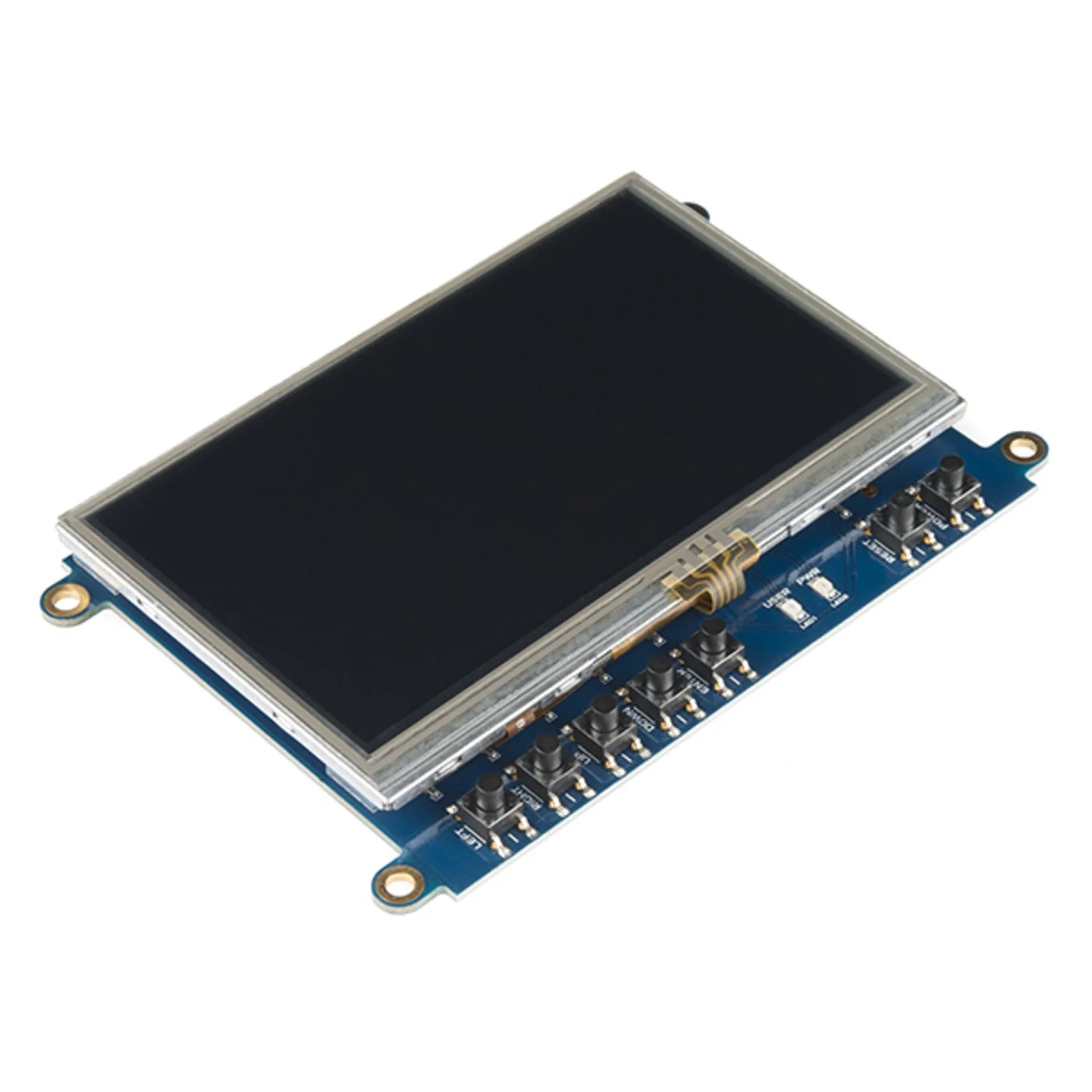

The 4DCAPE-43T is a 4.3″ resistive touch LCD cape designed specifically for the BeagleBone Black. It provides a primary display for direct user interaction, with the BeagleBone Black connecting directly to the back of the cape for power and display signals.

The cape features seven push buttons (left, right, up, down, enter, reset, and power), two status LEDs (power and user), and a 2×2 jumper block for EEPROM cape ID selection. Four 3.5 mm mounting holes accept standard M3 or #6-32 screws for secure installation.

Key Features

• 4.3″ TFT LCD – Resistive touch screen for direct interaction
• 7 Push Buttons – Left, right, up, down, enter, reset, and power
• 2 Status LEDs – Power and user indicators
• Direct Connection – Mounts directly to the BeagleBone Black
• EEPROM Cape ID – 2×2 jumper with shunts for cape identification
• Mounting Holes – 4× 3.5 mm holes for M3 or #6-32 screws

Specifications

• Display: 4.3″ TFT LCD
• Touch: Resistive
• Dimensions (cape only): 120.4 mm × 80.0 mm × 24.8 mm
• Dimensions (with BBB): ~120.4 mm × 80.0 mm × 32.0 mm
• Mounting: 4× 3.5 mm holes

Ideal For

• BeagleBone Black user interface projects
• Embedded display and control panels
• Kiosk and information display applications

Package Contents

• 1× 4DCAPE-43T LCD cape for BeagleBone Black

Resources

• Datasheet (PDF)
