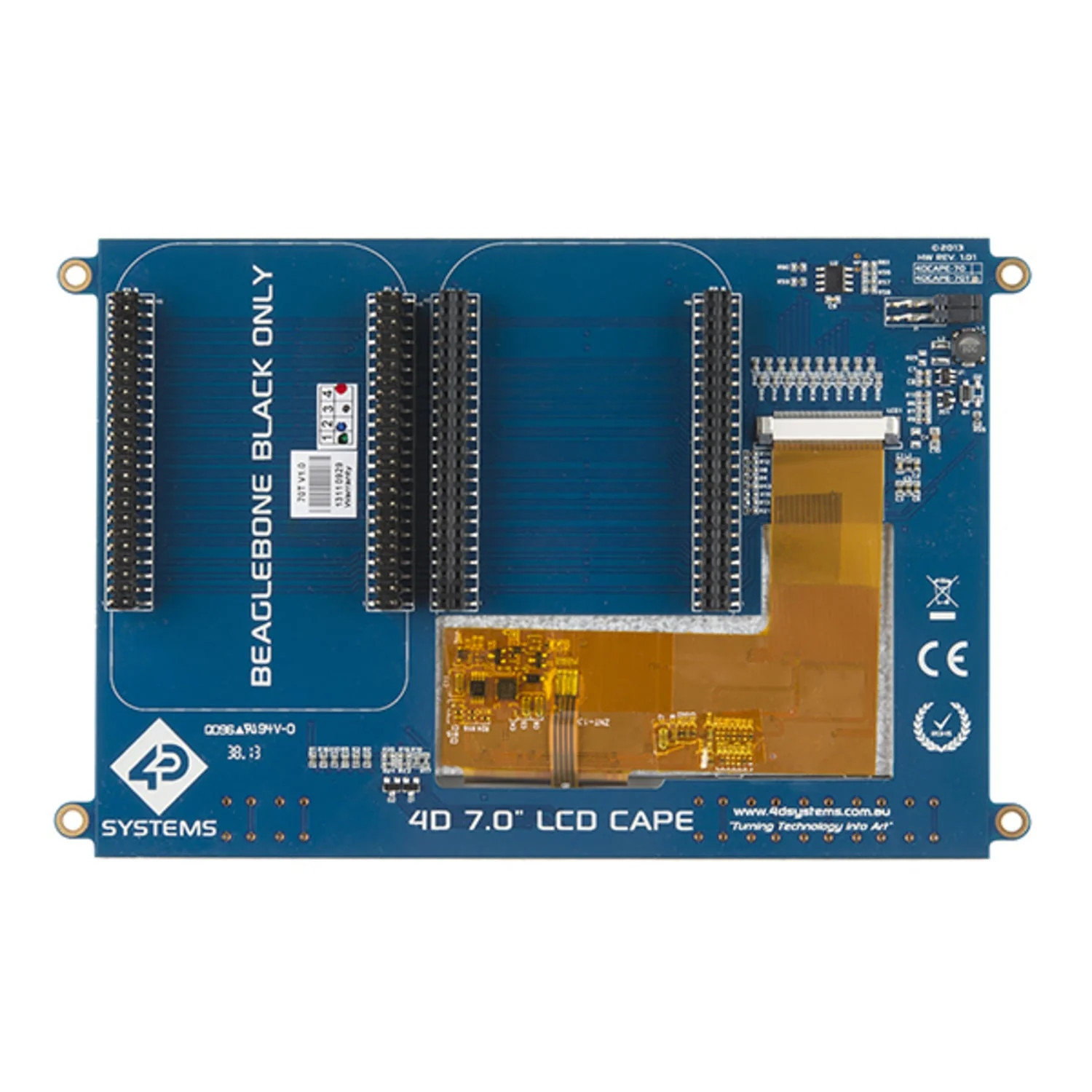

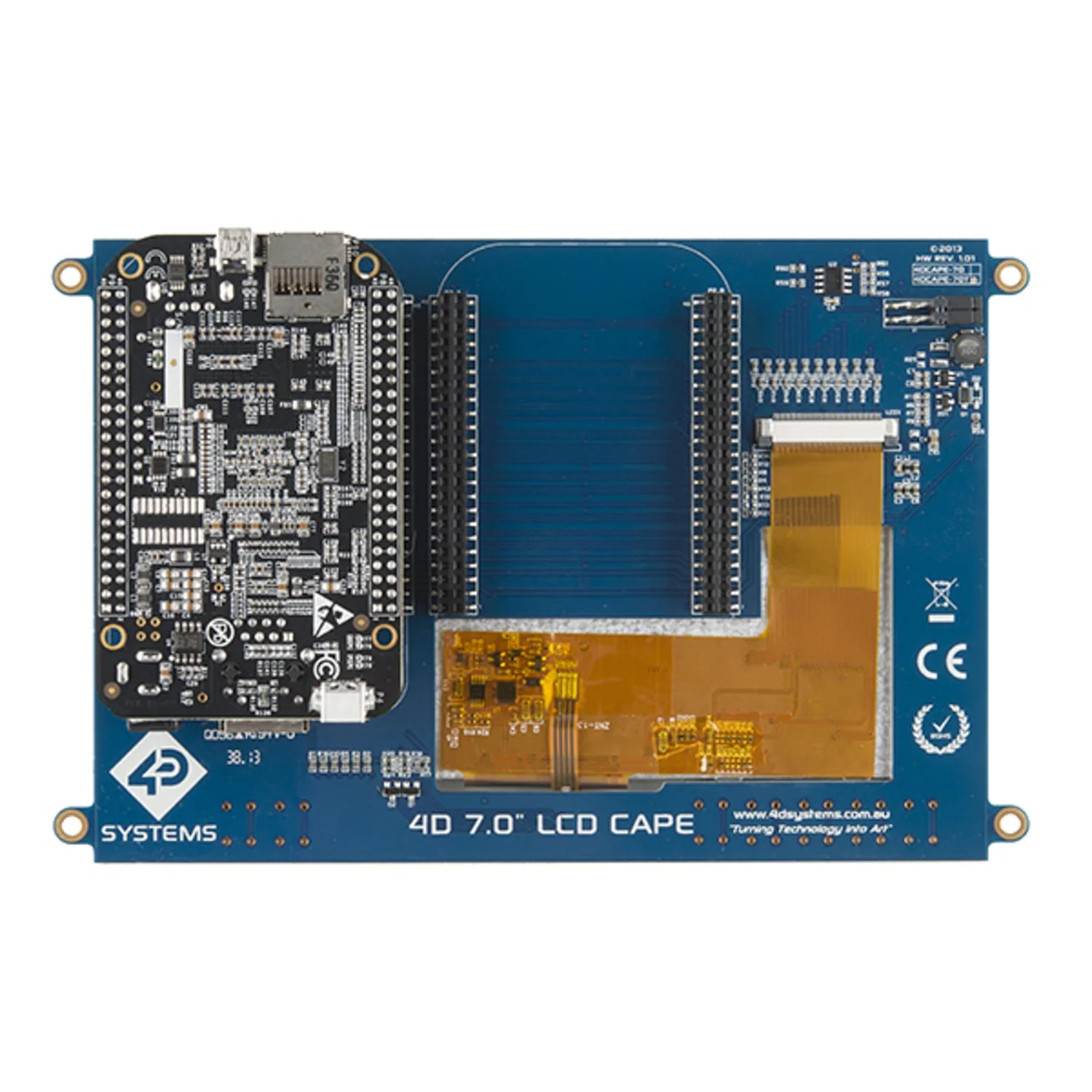

A 7.0" resistive touchscreen LCD cape by 4D Systems, designed specifically for the BeagleBone Black. It provides a primary display for direct user interaction, with the BBB connecting directly to the back of the cape for power and display signals.

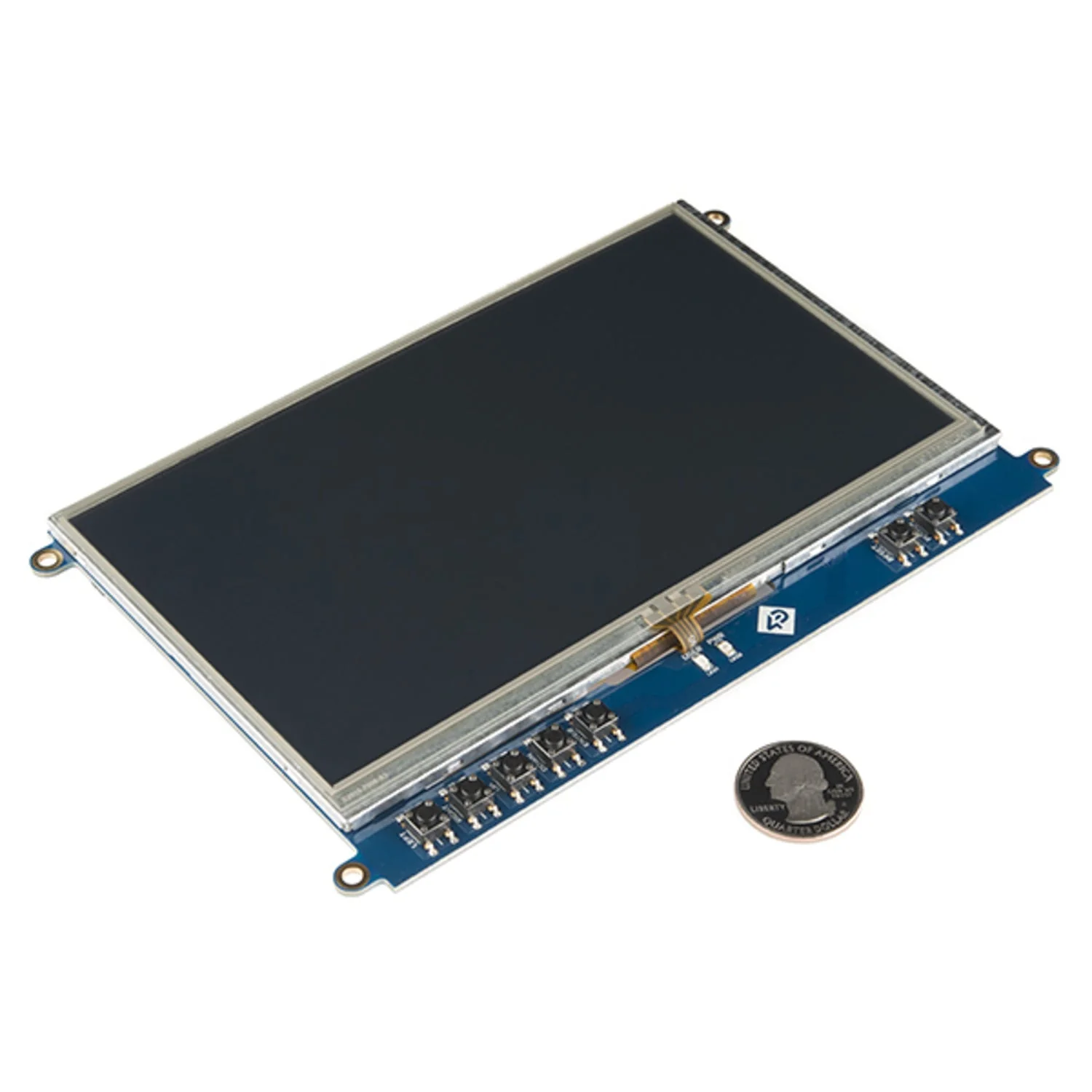

The cape features seven push buttons below the screen (Left, Right, Up, Down, Enter, Reset, and Power) along with two status LEDs for power and user indication.

Key Features

• 7.0" TFT LCD – Resistive touch screen
• 7 Push Buttons – Left, Right, Up, Down, Enter, Reset, and Power
• 2 Status LEDs – Power and User indicators
• EEPROM Cape ID – 2×2 jumper with shunts for cape selection
• 4 Mounting Holes – 3.5 mm for M3 or #6-32 screws

Specifications

• Display – 7.0" TFT LCD with resistive touch
• Dimensions (cape only) – 179.9 × 114.9 × 19.5 mm
• Dimensions (with BBB) – ~179.9 × 114.9 × 25.7 mm

Package Contents

• 1× 4DCAPE-70T LCD Cape (7.0")

Resources

• Datasheet (PDF)
• Dimensional Drawing
