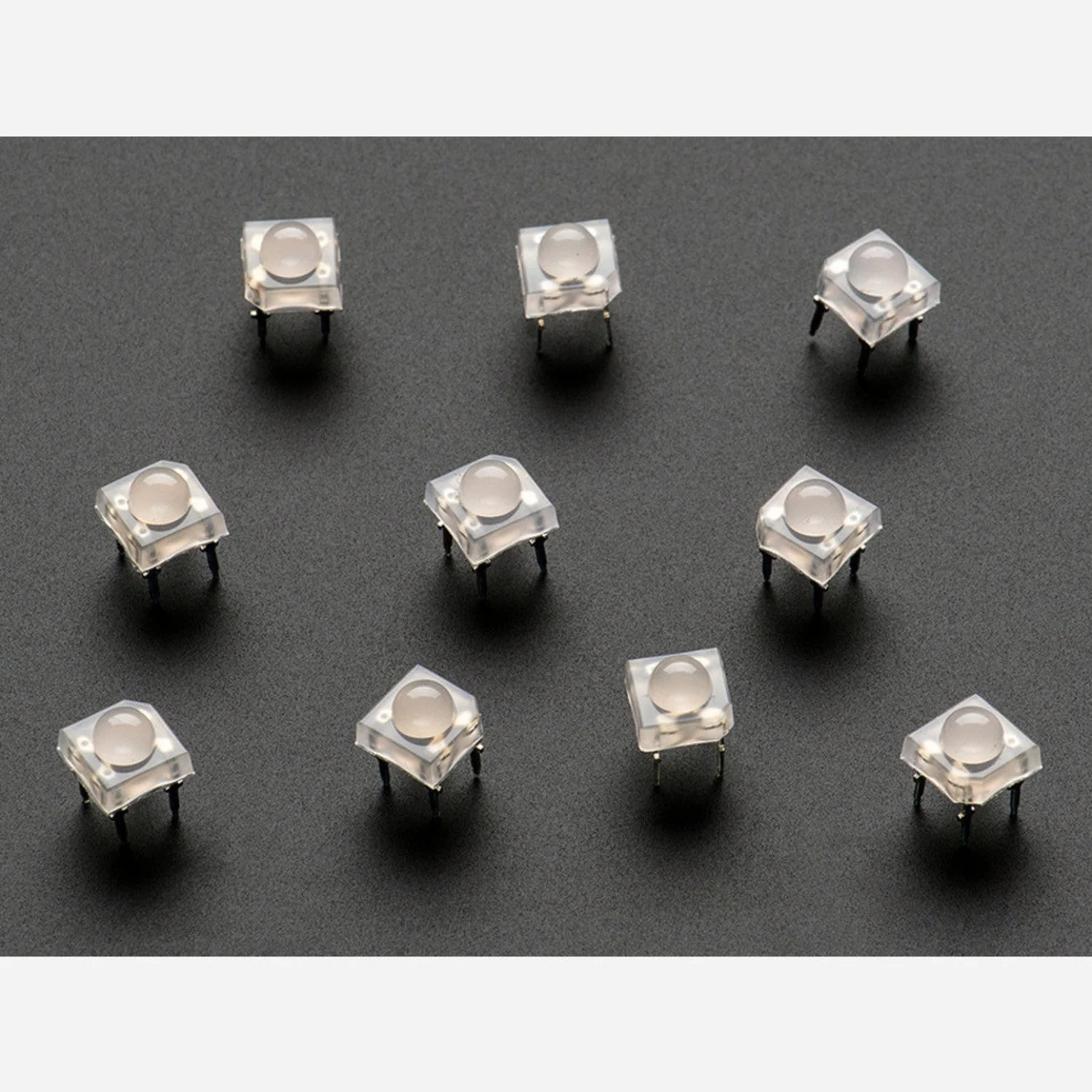

Diffused 5mm tri-colour LEDs with separate red, green, and blue chips inside a square "Piranha" (super-flux) package. With a 90° viewing angle and up to 3000mcd combined brightness, these LEDs are great for colour mixing, indicators, and illumination projects. They plug into a breadboard diagonally.

These are common-anode (CA) type — connect the anode pin to your supply voltage and drive the red, green, and blue cathodes to ground through current-limiting resistors. CA LEDs are compatible with multi-LED driver chips such as the TLC5940/TLC5941.

Key Features

• Tri-Colour RGB – Separate red, green, and blue chips in one package
• Common Anode – Compatible with TLC5940/TLC5941 LED drivers
• Diffused Lens – Smooth colour blending with 90° viewing angle
• Piranha Package – 7.6mm square, fits breadboards diagonally
• Pack of 10

Specifications

• Package: 7.6 × 7.6mm square (super-flux/Piranha)
• Type: Common Anode
• Red: 620nm, 1.8–2.2V forward voltage, 800mcd @ 20mA
• Green: 517nm, 3.0–3.3V forward voltage, 1500mcd @ 20mA
• Blue: 460nm, 3.0–3.3V forward voltage, 700mcd @ 20mA
• Total Brightness: 3000mcd
• Viewing Angle: 90°

Ideal For

• RGB colour mixing and mood lighting
• Status indicators and illumination
• Breadboard prototyping with LED drivers
• Interactive light displays

Package Contents

• 10× Diffused Piranha RGB LEDs (common anode)

Resources

• Datasheet (PDF)
• Introduction to Using LEDs (Adafruit)
