NeoPixel Addressable 1111 LEDs (1.1mm x 1.1mm) - 50 Strip

Product image 1
1 / 5

NeoPixel Addressable 1111 LEDs (1.1mm x 1.1mm) - 50 Strip

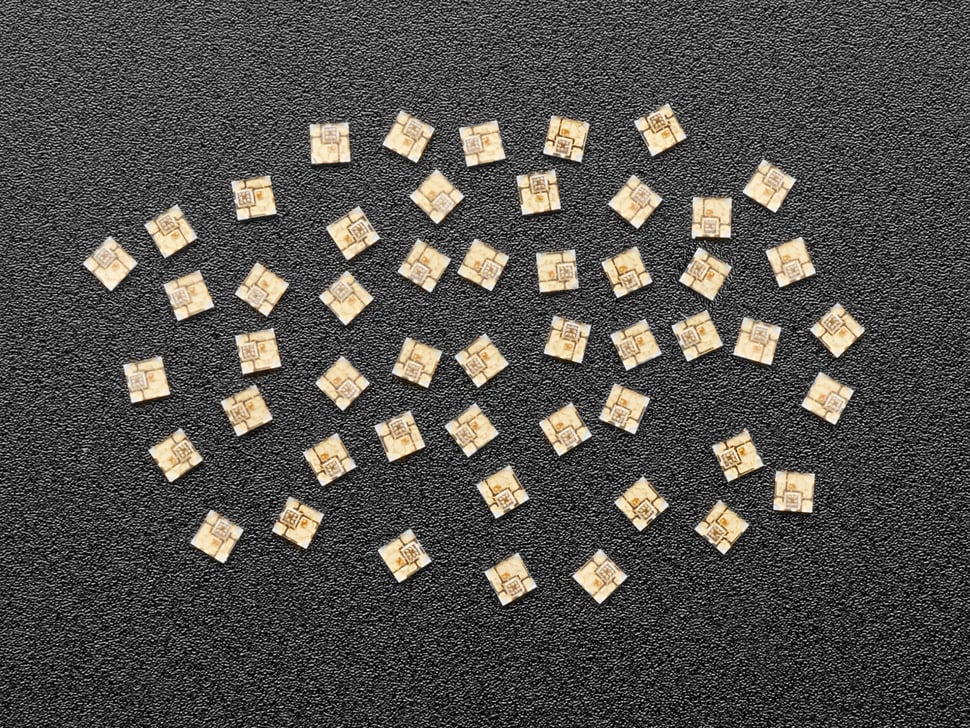

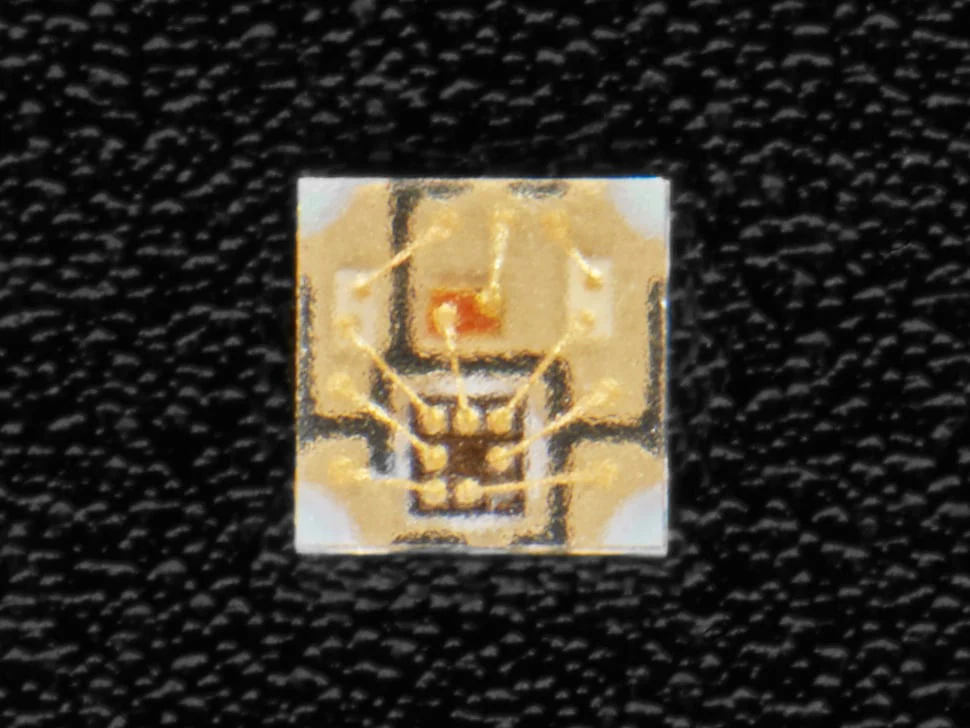

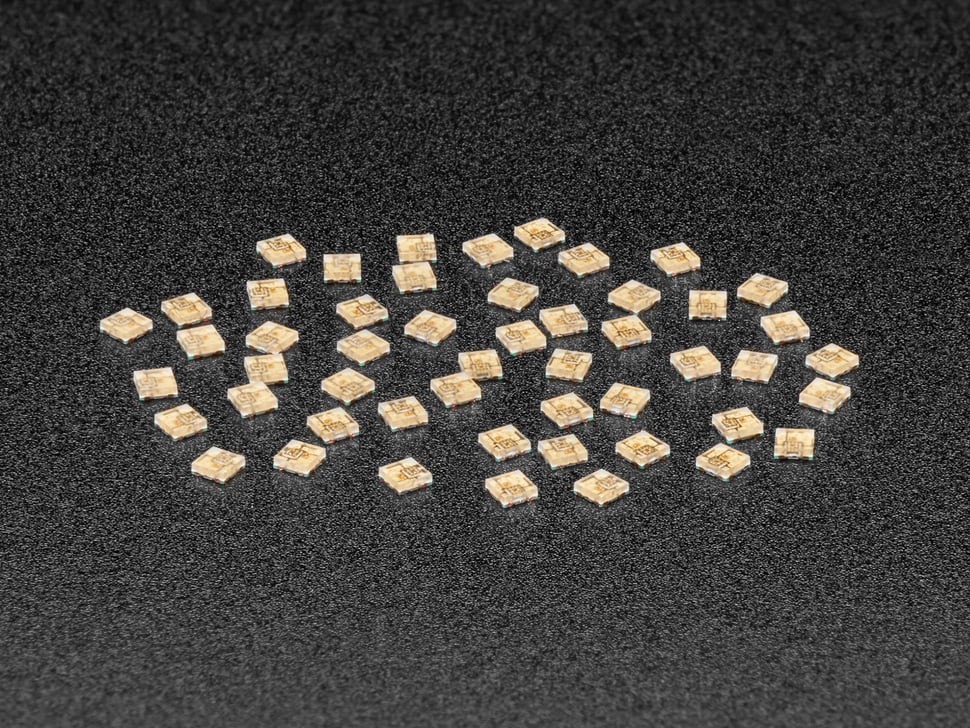

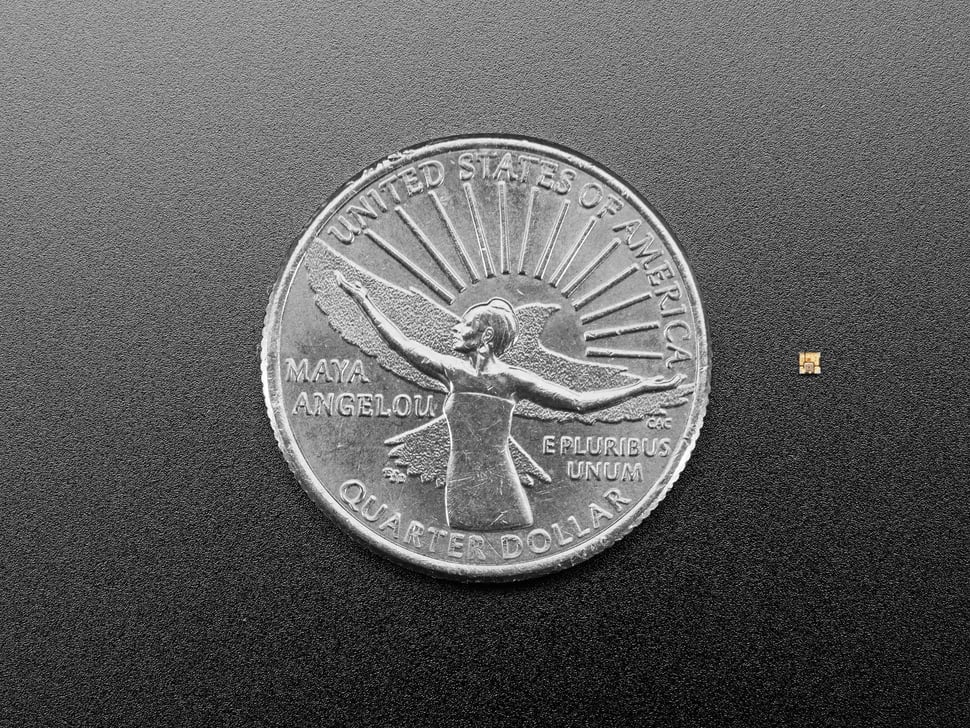

Incredibly tiny 1111-size (1.1mm × 1.1mm) individually addressable RGB NeoPixel LEDs for creating ultra-compact or high-density smart LED designs. These are the same integrated LED technology used in NeoPixel strips and pixels, but at a fraction of the size — 20× smaller than standard 5050 NeoPixels and 10× smaller than 3535 mini NeoPixels.

Each LED includes a built-in driver chip with ~5mA constant current drive, ensuring consistent colour regardless of voltage variation. Powers from 5VDC (also works at 3.3V with reduced brightness). No external resistors required.

Key Features

  • Ultra-Compact – 1.1mm × 1.1mm, the smallest NeoPixel form factor
  • Individually Addressable – Full RGB colour control per LED
  • Constant Current Drive – ~5mA for consistent colour output
  • 5V Operation – Also functions at 3.3V with reduced brightness
  • No External Components – Driver built into each LED

Specifications

  • LED Size: 1111 (1.1mm × 1.1mm)
  • Type: RGB, individually addressable
  • Current Drive: ~5mA constant current
  • Voltage: 5VDC (3.3V compatible)
  • Mount: Surface-mount (SMD)

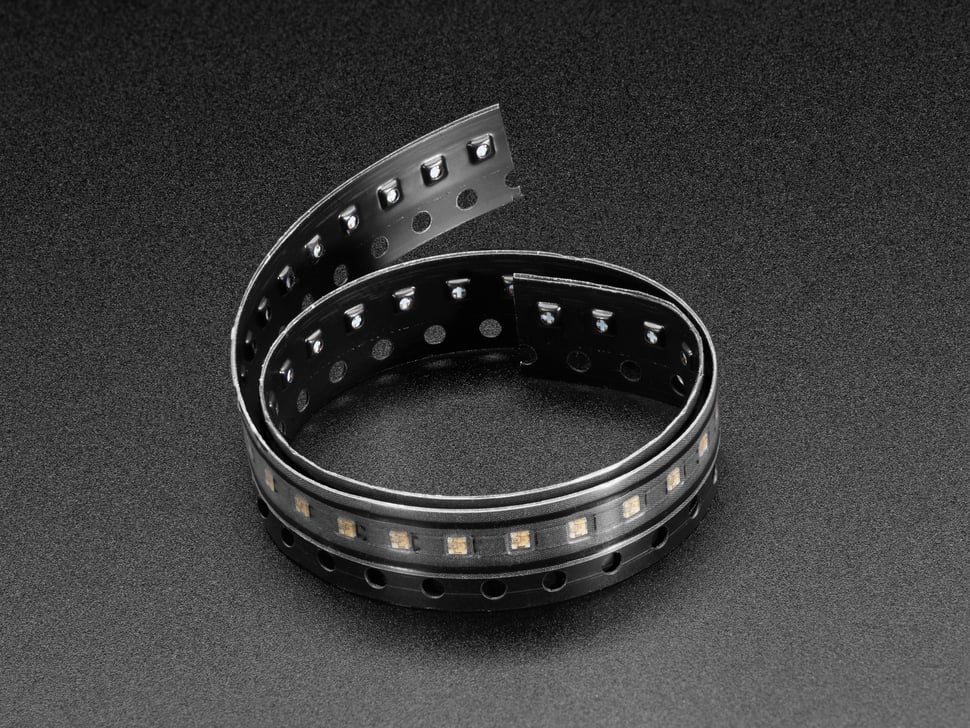

  • Quantity: 50 per reel
Warning: These LEDs are not designed for hand soldering due to their extremely small size and bottom-mounted pads. Reflow soldering or hot-air rework is required.

Package Contents

  • 1× Reel of 50 NeoPixel 1111 LEDs
$16.67

Original: $55.57

-70%
NeoPixel Addressable 1111 LEDs (1.1mm x 1.1mm) - 50 Strip—

$55.57

$16.67

Product Information

Shipping & Returns

Description

Incredibly tiny 1111-size (1.1mm × 1.1mm) individually addressable RGB NeoPixel LEDs for creating ultra-compact or high-density smart LED designs. These are the same integrated LED technology used in NeoPixel strips and pixels, but at a fraction of the size — 20× smaller than standard 5050 NeoPixels and 10× smaller than 3535 mini NeoPixels.

Each LED includes a built-in driver chip with ~5mA constant current drive, ensuring consistent colour regardless of voltage variation. Powers from 5VDC (also works at 3.3V with reduced brightness). No external resistors required.

Key Features

  • Ultra-Compact – 1.1mm × 1.1mm, the smallest NeoPixel form factor
  • Individually Addressable – Full RGB colour control per LED
  • Constant Current Drive – ~5mA for consistent colour output
  • 5V Operation – Also functions at 3.3V with reduced brightness
  • No External Components – Driver built into each LED

Specifications

  • LED Size: 1111 (1.1mm × 1.1mm)
  • Type: RGB, individually addressable
  • Current Drive: ~5mA constant current
  • Voltage: 5VDC (3.3V compatible)
  • Mount: Surface-mount (SMD)
  • Quantity: 50 per reel
Warning: These LEDs are not designed for hand soldering due to their extremely small size and bottom-mounted pads. Reflow soldering or hot-air rework is required.

Package Contents

  • 1× Reel of 50 NeoPixel 1111 LEDs
