The TF03 is an industrial-grade ToF (Time-of-Flight) LiDAR sensor with a detection range of up to 180 m at 90% reflectivity. Using pulsed laser ranging at 905 nm, it delivers ±10 cm accuracy with a 0.1 m minimum blind zone and adjustable frame rates from 1 Hz to 1000 Hz.

Built in a compact aluminium alloy housing with IP67 ingress protection, the TF03 is designed for demanding environments. It features 100 Klux ambient light immunity, multiple communication interfaces (UART, CAN, IO), and configurable parameters including frame rate, baud rate, and trigger mode. Compatible with Arduino and Raspberry Pi.

Key Features

• 180 m Range – Up to 180 m at 90% reflectivity, 70 m at 10% reflectivity
• High Accuracy – ±10 cm (under 10 m), 1% (over 10 m) with 1 cm resolution
• Adjustable Frame Rate – 1 Hz to 1000 Hz (default 100 Hz)
• IP67 Rated – Aluminium alloy housing with infrared band-pass glass
• 100 Klux Ambient Light Immunity – Reliable outdoor performance
• Multiple Interfaces – UART, CAN, and IO outputs
• Configurable Parameters – Frame rate, baud rate, trigger mode, and over-range assignment
• BootLoader Support – Local firmware upgrades
• Eye-Safe Laser – Class 1 (EN60825)

Specifications

• Range – 0.1–180 m (90% reflectivity) / 0.1–70 m (10% reflectivity)
• Accuracy – ±10 cm (<10 m), 1% (>10 m)
• Resolution – 1 cm
• Frame Rate – 1–1000 Hz (default 100 Hz)
• FOV Angle – 0.5°
• Light Source – 905 nm laser diode (Class 1)
• Supply Voltage – 5V ± 0.5V
• Average Current – ≤180 mA
• Power Consumption – ≤0.9 W
• Communication – UART / CAN / IO (3.3V LVTTL)
• Operating Temperature – −25°C to 60°C
• Storage Temperature – −40°C to 85°C
• Enclosure – Aluminium alloy, IP67
• Dimensions – 44 × 43 × 32 mm
• Weight – 77 g ± 3 g
• Cable Length – 70 cm

Ideal For

• Drone terrain following and altitude hold
• Vehicle collision avoidance
• Intelligent transportation systems
• Industrial safety and distance monitoring

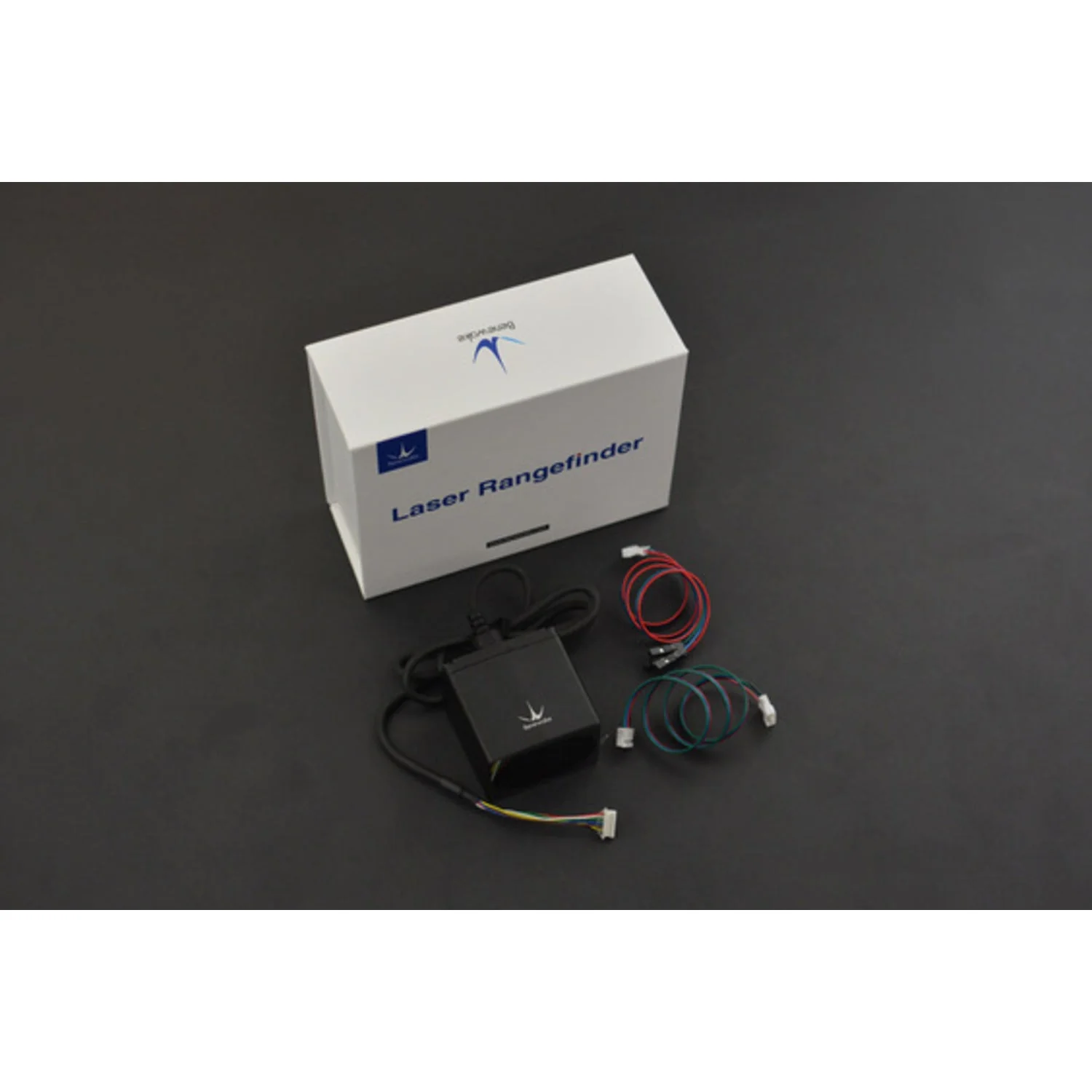

Package Contents

• 1× TF03 ToF Laser Range Sensor
