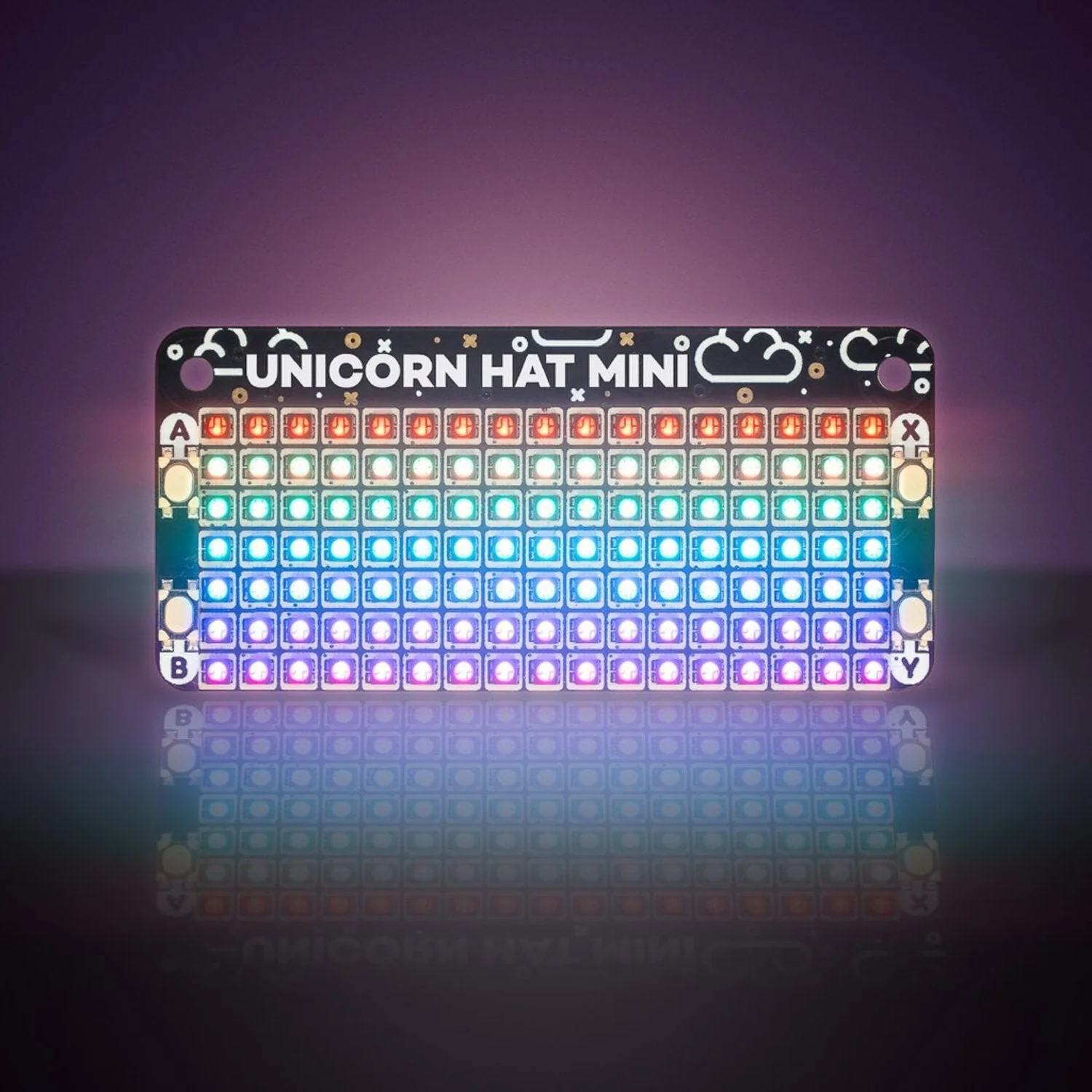

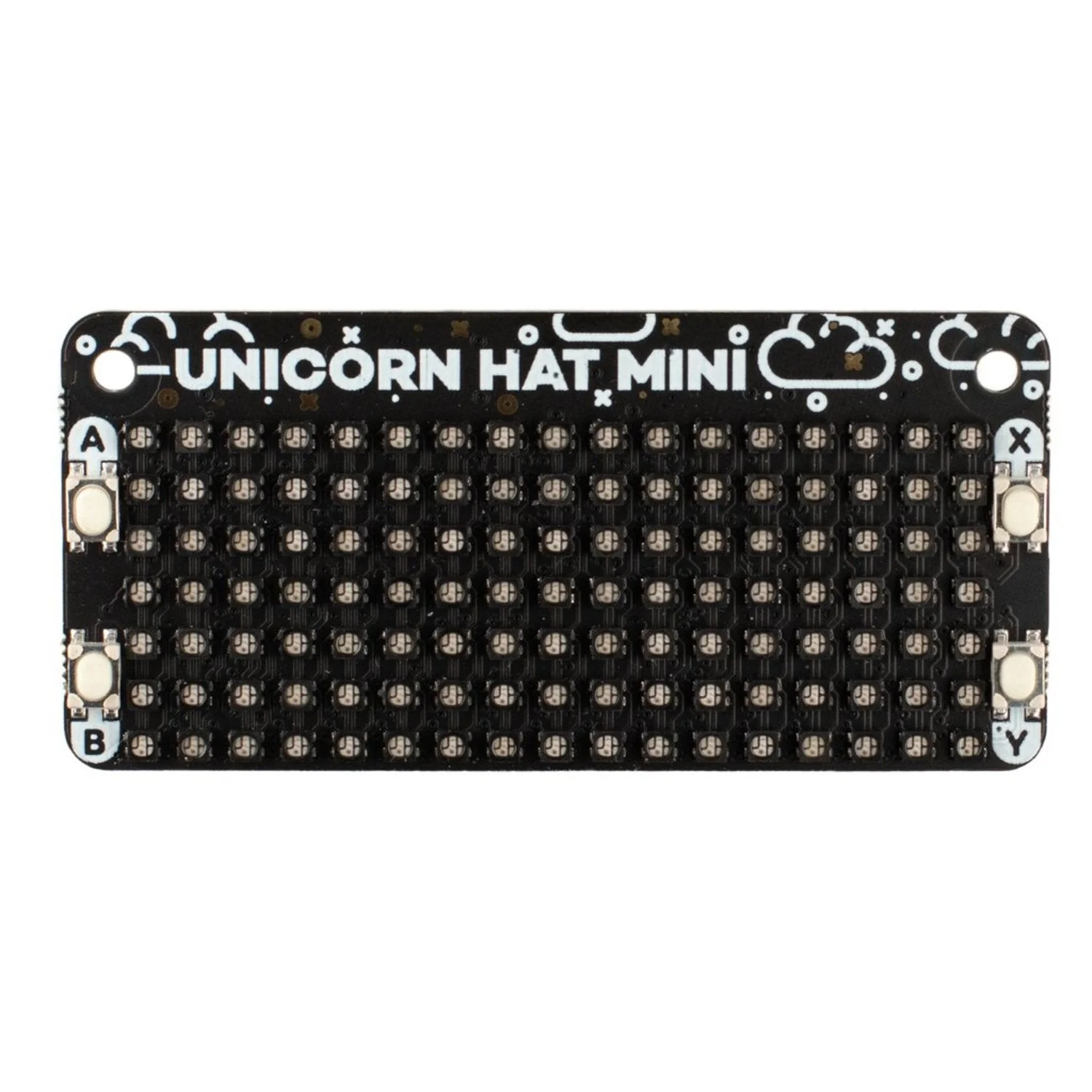

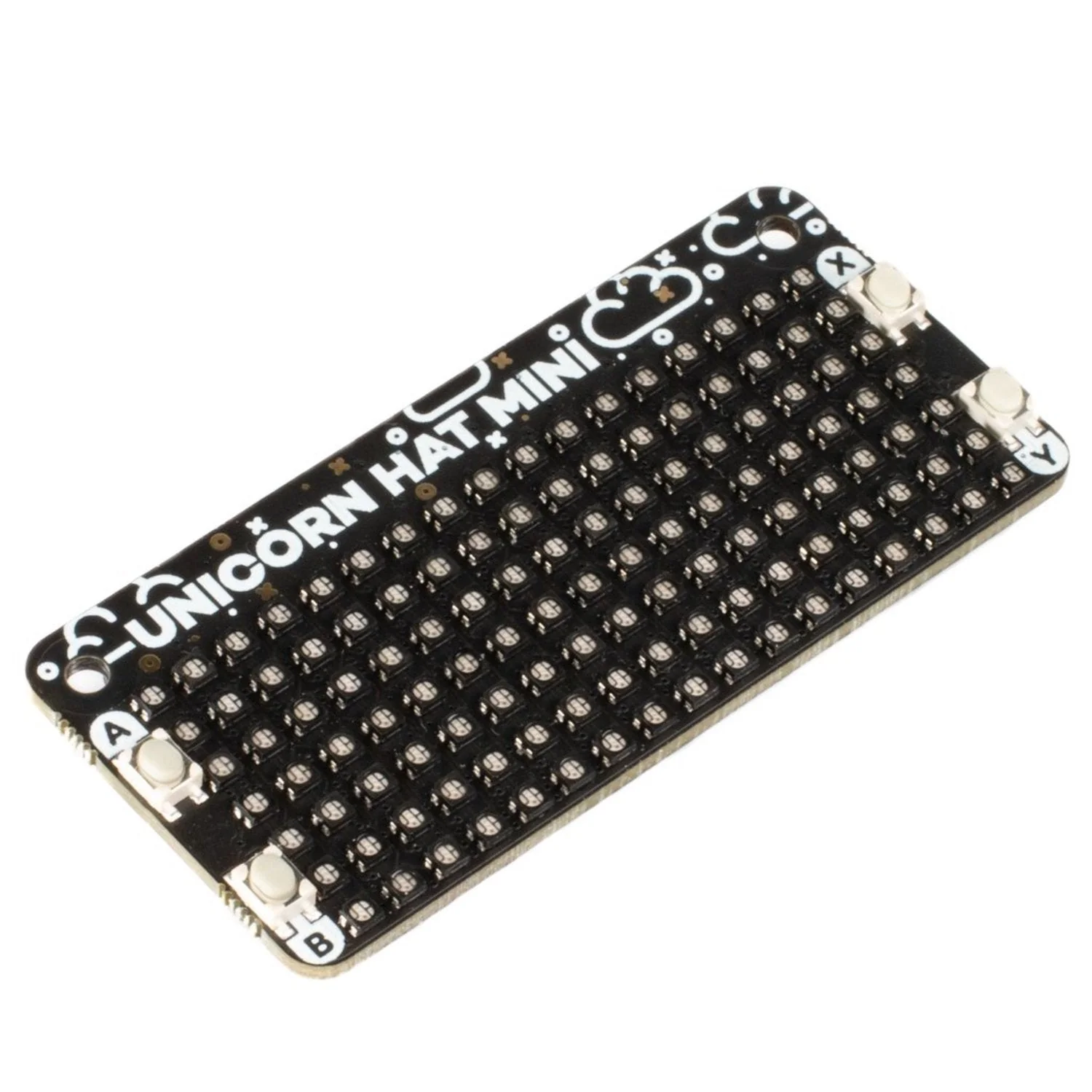

The Unicorn HAT Mini is a compact 17×7 RGB LED matrix for Raspberry Pi, featuring 119 individually controllable LEDs and four tactile buttons. Simply pop it onto any 40-pin Raspberry Pi — no soldering required — and use the Python library to display animations, scrolling text, simple images, and mini games.

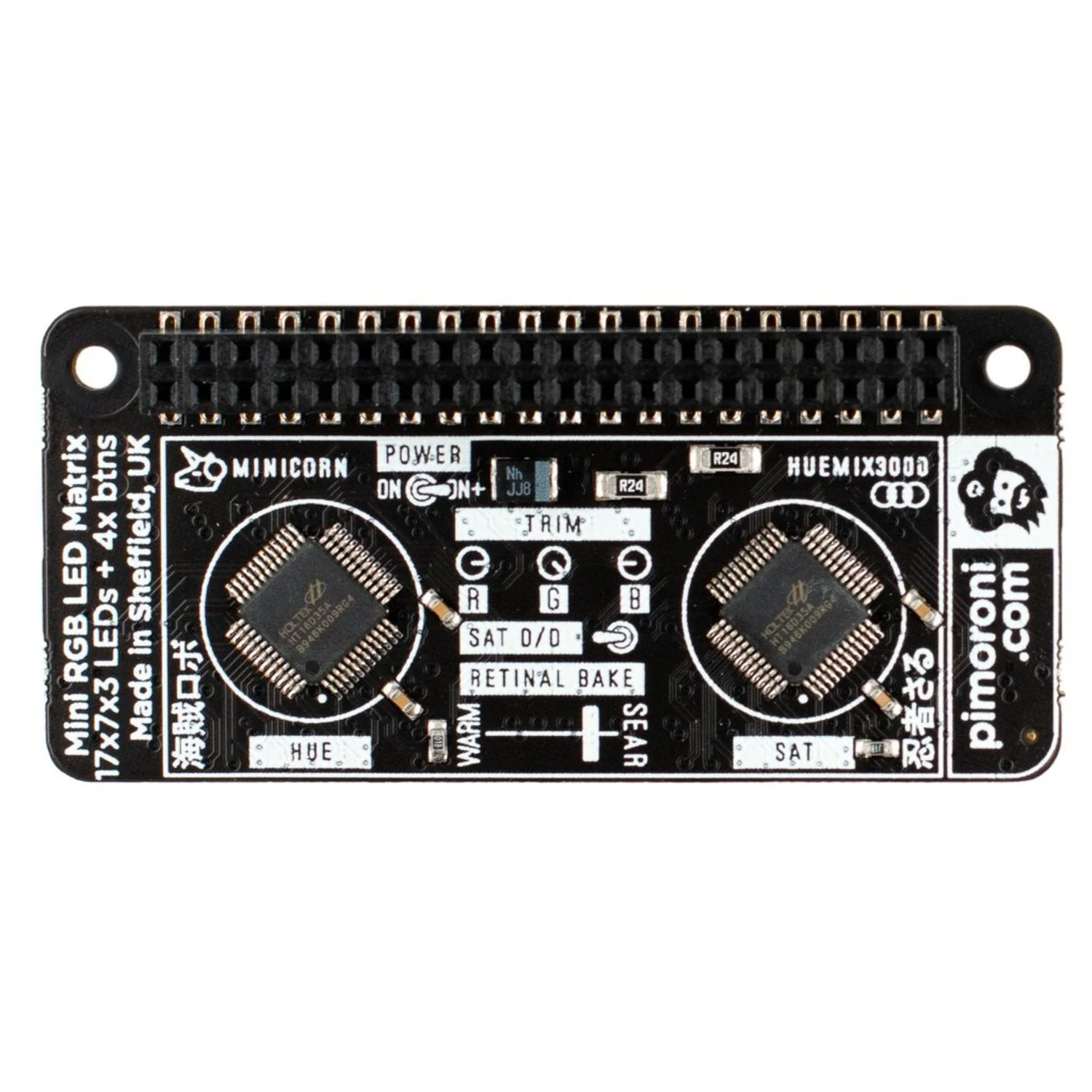

Two Holtek HT16D35A LED matrix driver chips handle all the multiplexing, giving you per-pixel colour and brightness control. The four built-in buttons are ideal for controlling display modes, adjusting brightness, or building simple interactive games.

Key Features

• 17×7 RGB LED Matrix – 119 individually addressable LEDs
• Per-Pixel Colour and Brightness – Full control of each LED via two HT16D35A drivers
• Four Tactile Buttons – User input for games, mode selection, or brightness control
• Pre-Assembled – Header pre-attached; no soldering required
• Mini HAT Format – Compact board fits all 40-pin Raspberry Pi models
• Python Library – Ready-made library with examples including Simon Says and a falling-blocks game

Specifications

• LED Type – Non-smart RGB (not NeoPixel/DotStar)
• Driver Chips – 2× Holtek HT16D35A
• Dimensions – 65 × 30 × 10 mm
• Compatibility – All Raspberry Pi models with a 40-pin GPIO header

Ideal For

• LED animations and scrolling text displays
• Simple games with button input
• Status indicators and notification lights
• Creative coding and Python learning projects

Package Contents

• 1× Unicorn HAT Mini (fully assembled)
