USB C SMT / THM Jack Connector - Power Only - Pack of 10

Product image 1
1 / 6

USB C SMT / THM Jack Connector - Power Only - Pack of 10

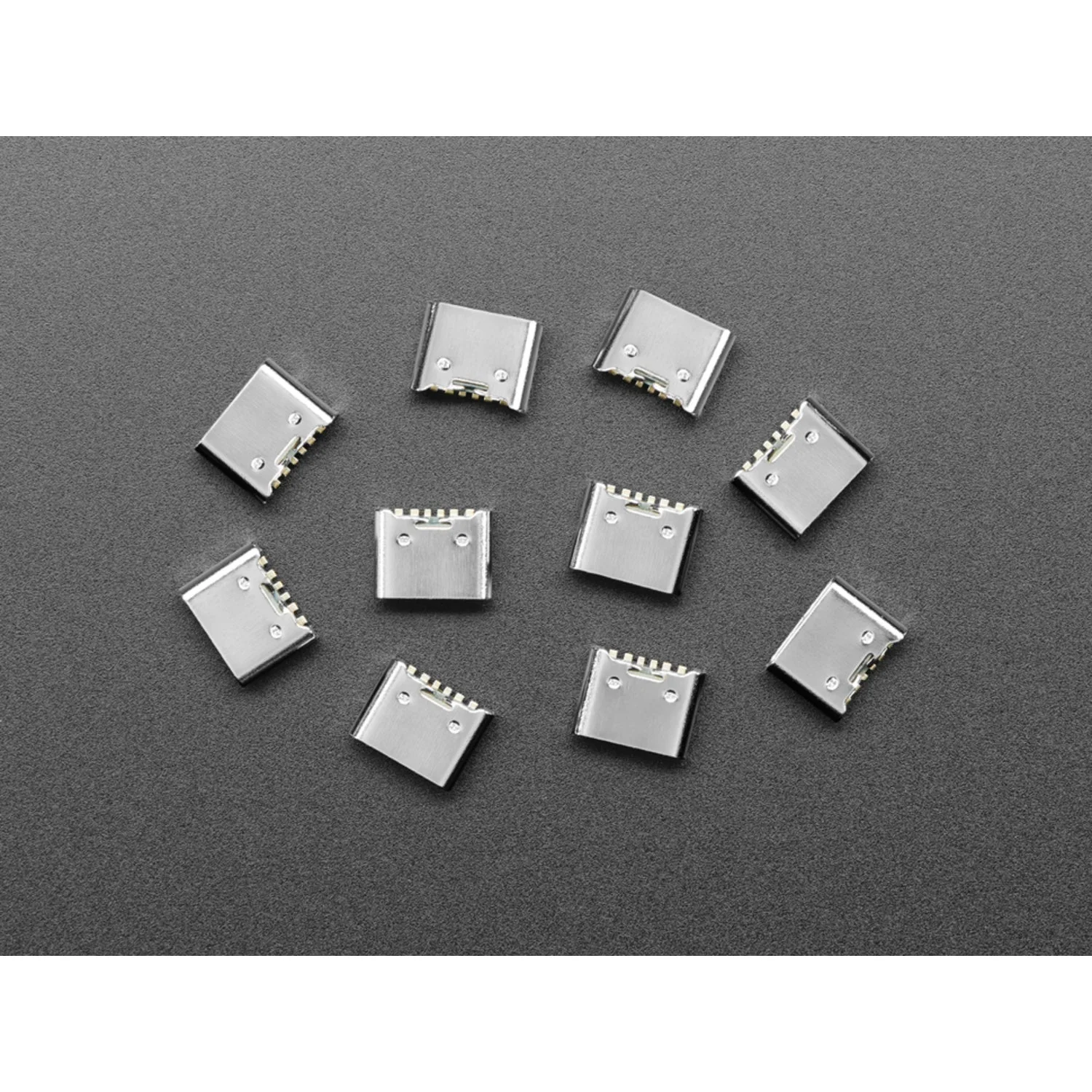

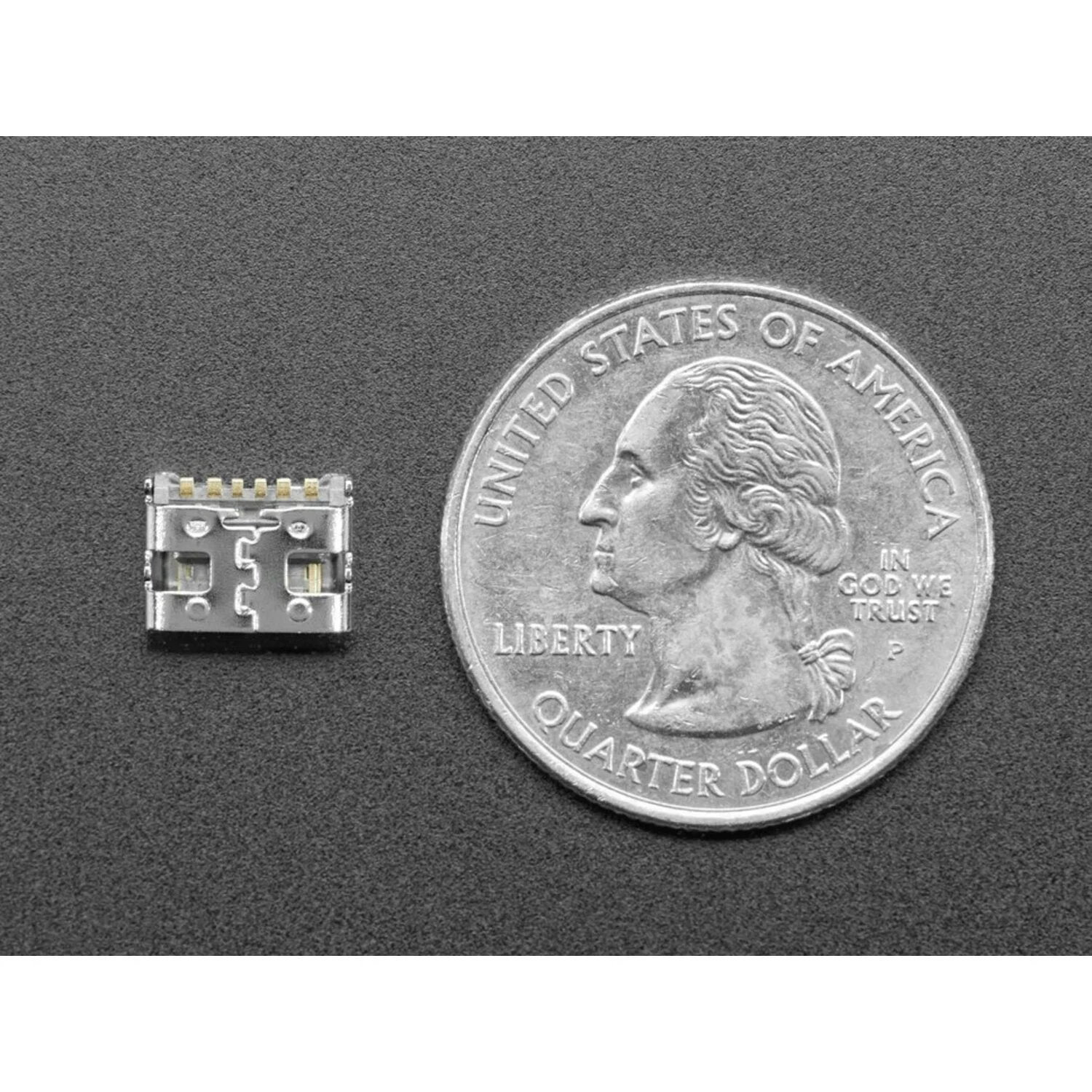

A pack of 10 USB-C jack connectors designed for power-only applications. These sturdy metal connectors feature four through-hole mounting tabs that make them extremely difficult to rip off a PCB. They also work in SMT reflow — just paste over the through-hole slots and the pads solder in place.

With only power pins broken out (no D+ or D- data lines), these connectors are simpler to solder and more affordable than full USB-C jacks. Perfect for upgrading your project's power input to the USB-C standard.

Key Features

  • Power Only – 2× ground, 2× VBUS, CC1, and CC2 pins (no data lines)
  • Sturdy Mounting – 4 through-hole tabs for secure PCB attachment
  • SMT/THM Compatible – Works with both reflow and hand soldering
  • Standard USB-C – Accepts any USB-C cable for 5V power
  • Pack of 10 – Plenty for multiple projects
Tip: To use as a 5V power input, connect ground and VBUS to your circuit, then tie two 5.1kΩ resistors from CC1 and CC2 to ground (one resistor per pin). This tells the USB-C host to supply 5V.

Ideal For

  • Upgrading projects from barrel jack or Micro USB to USB-C power
  • Custom PCB designs requiring USB-C power input
  • Low-cost power connector for DIY electronics

Package Contents

  • 10× USB-C SMT/THM jack connectors (power only)
$6.28
